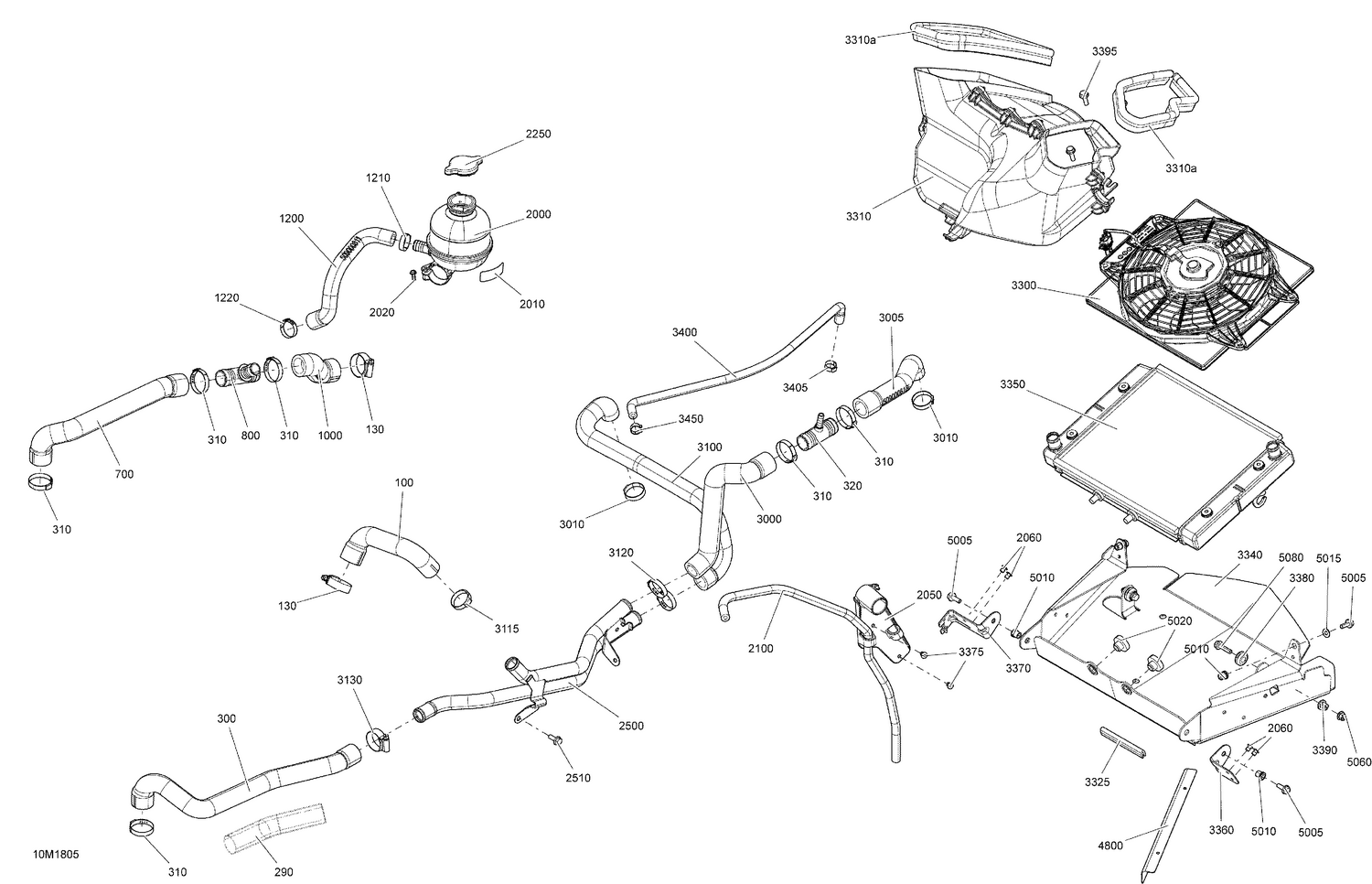

01- Cooling MXZ, Renegade - 900 ACE
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 509000863 | Engine Outlet Hose |
| 130 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 290 | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 295 | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 300 | 509000859 | Radiator Hose |
| 310 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 700 | 509001062 | Radiator Return Hose This part replaces 509000697. |
| 710 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 800 | 509000372 | T-Fitting |
| 1000 | 509000864 | Engine Inlet Hose |
| 1010 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 1020 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 1200 | 509001063 | Filling Hose This part replaces 509000811. |
| 1210 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 1220 | 293650099 | Crimp Clamp |
| 2000 | 509000881 | Cooling Tank |
| 2010 | 516005904 | Warning Decal |
| 2020 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 2100 | 509000775 | Hose |
