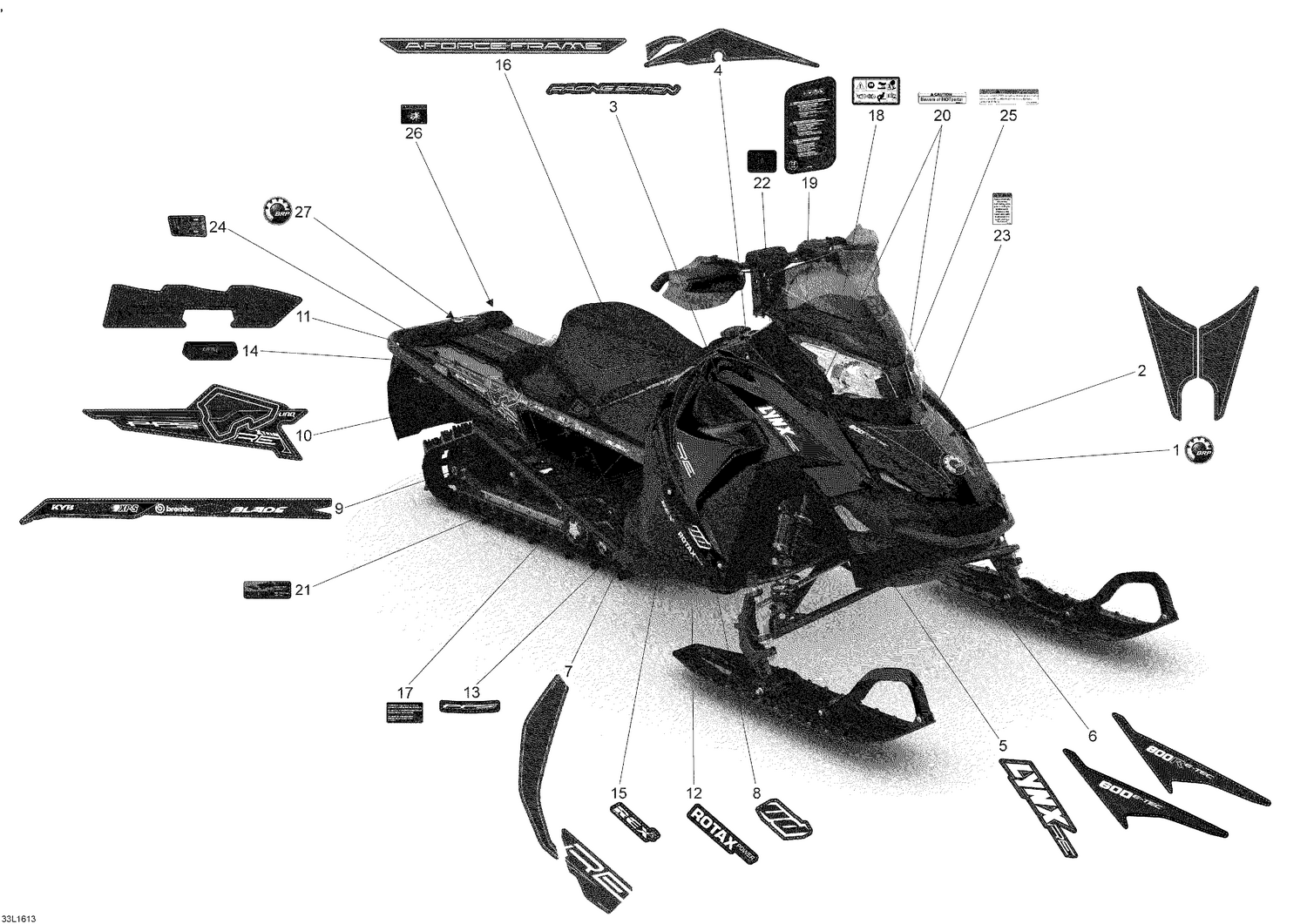

09- Decals
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 516008739 | Logo 68mm "BRP" This part replaces 516006888. |
| 2 | 516006697 | Hood Decal |
| 3 | 516005905 | Side Panel Decal |
| 4 | 516006693 | LH Side Panel Decal |
| 4 | 516006694 | RH Side Panel Decal |
| 5 | 516006330 | Side Panel Decal |
| 6 | 516005909 | LH Hood Decal |
| 6 | 516005910 | RH Hood Decal |
| 7 | 516006698 | LH Side Panel Decal |
| 7 | 516006699 | RH Side Panel Decal |
| 8 | 516007467 | Side Panel Decal |
| 9 | 516006988 | LH Tunnel Decal |
| 9 | 516006989 | RH Tunnel Decal |
| 10 | 516007075 | LH Tunnel Decal |
| 10 | 516007076 | RH Tunnel Decal |
| 11 | 516007037 | LH Tunnel Decal |
| 11 | 516007038 | RH Tunnel Decal |
| 12 | 516006331 | Rotax Power Decal |
| 13 | 516006805 | PPS Decal |
| 14 | 516006485 | LinQ Decal |
| 15 | 516006392 | REX2 Platform Decal |
| 16 | 516006687 | A-Force Frame Decal |
| 17 | 5447012 | Oil Checking Decal |
| 18 | 516003919 | Warning Decal |
| 19 | 516004607 | Instruction/Warning Decal (FI/SWE/EN) |
| 20 | 516006903 | Hot Parts Decal |
| 21 | 516007588 | Track Tension Decal |
| 22 | 516006361 | Console Buttonhole Cover Decal |
| 23 | 516005583 | WARNING DECAL, INJECTORS - Call your local BRP dealership |
| 24 | 516006447 | LinQ Weight Limit Decal |
| 25 | 516006900 | Driven Pulley Shield Warning Decal |
| 26 | 516007584 | Rotating Track Warning Decal |
