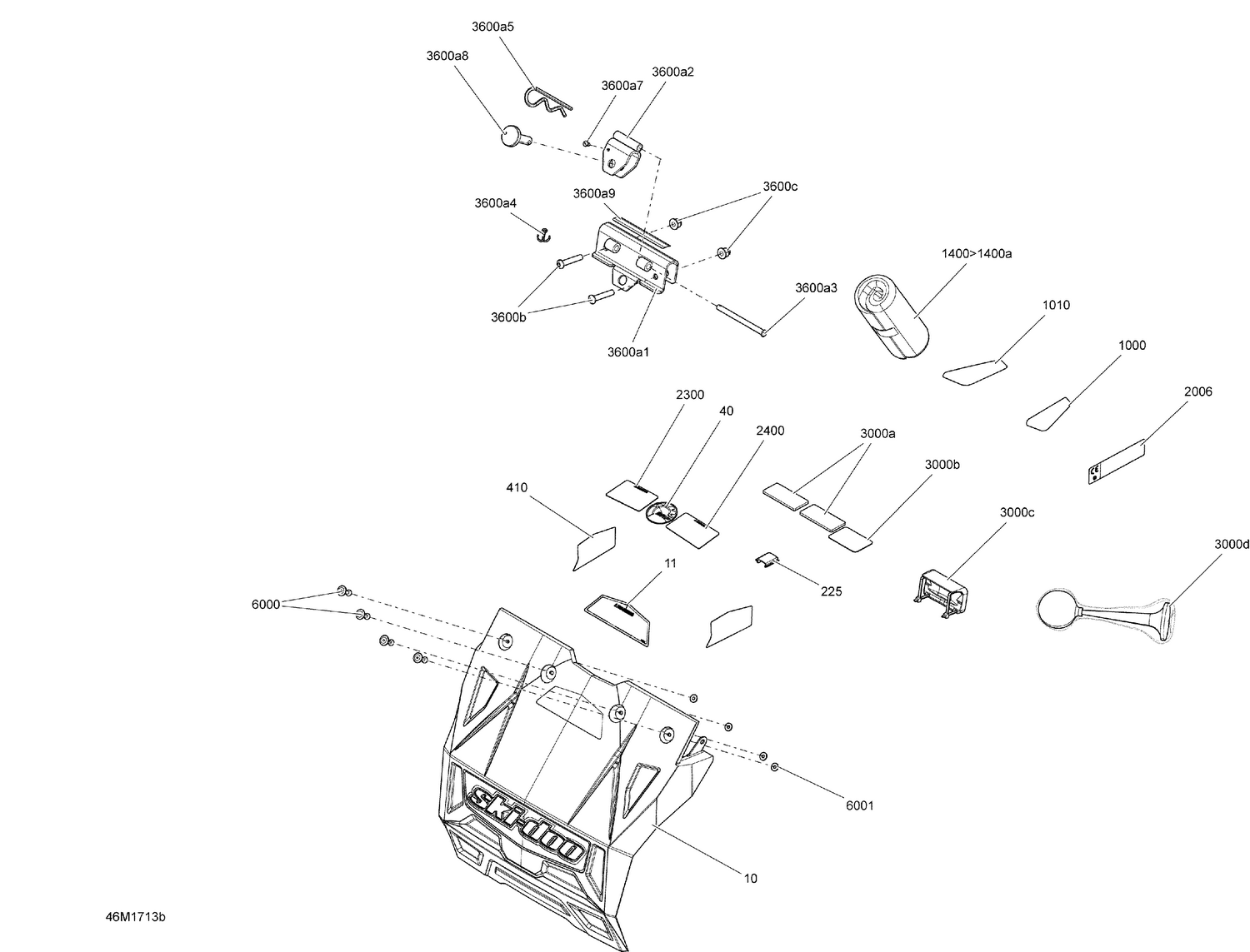

| Ref | Part Number | Description |
|---|
| 10 |
520001340 |
Snow Guard |
| 11 |
516005175 |
Warning Decal, Track |
| 40 |
516008738 |
BRP Logo 48mm This part replaces 516006887. |
| 225 |
520000829 |
Radiator Trim |
| 1000 |
520001237 |
Yellow, RH Front Reflector |
| 1010 |
520001236 |
Yellow, LH Front Reflector |
| 1400a |
529000002 |
FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 2300 |
516006908 |
Warning Decal |
| 2400 |
516005587 |
RH Warning Decal, Safety |
| 3600a3 |
511001451 |
Lock Pin This part replaces 511000520. |
| 3600a4 |
371800200 |
Cotter Pin |
| 3600a9 |
516004568 |
WARNING DECAL, SECURITY - Call your local BRP dealership |
| 3600b |
205484546 |
Socket Head Screw M8 X 45 |
| 6000 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
