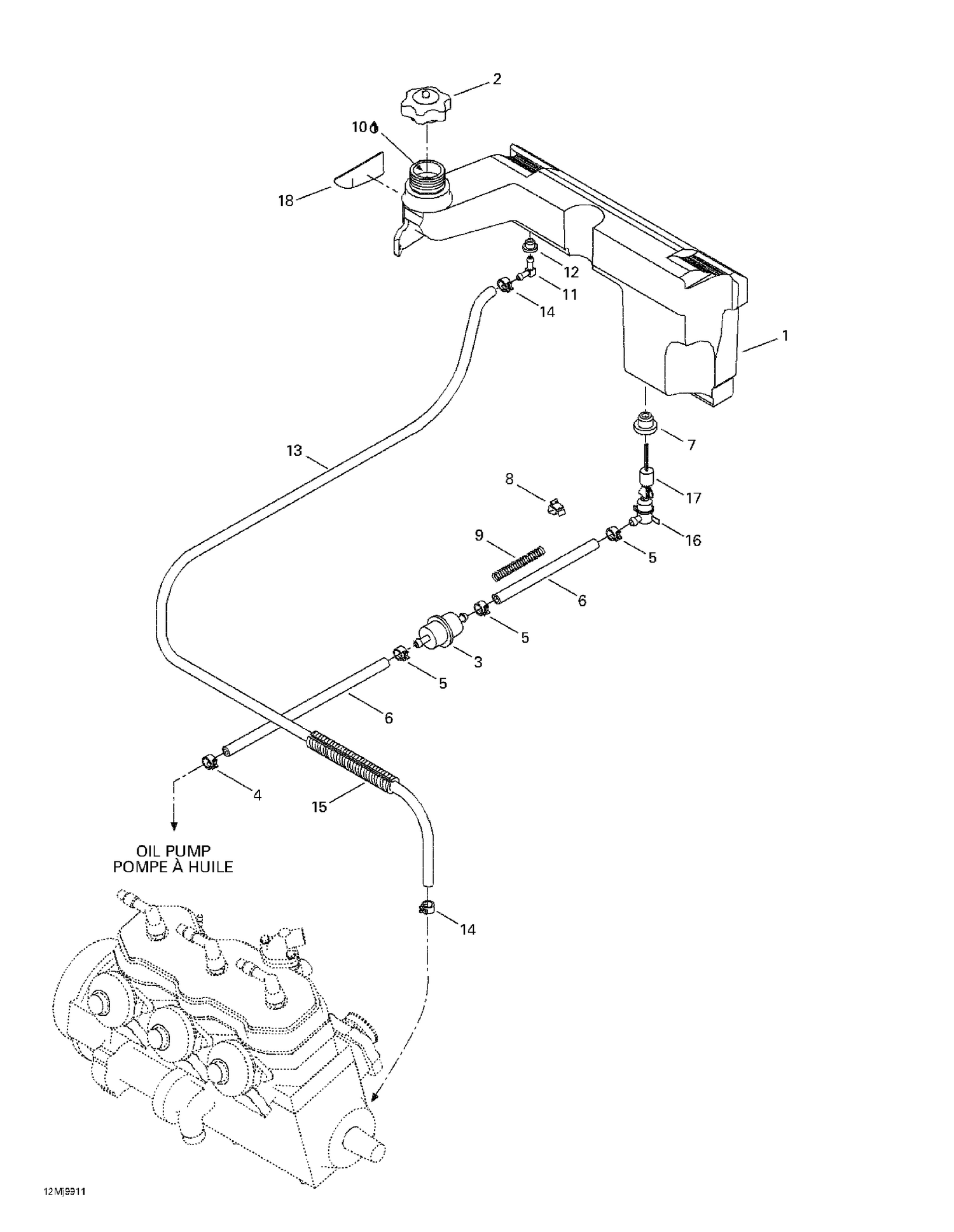

| Ref | Part Number | Description |
|---|
| 1 |
572088500 |
Injection Oil Tank This part replaces 519000002. |
| 2 |
519000044 |
CAP - Call your local BRP dealership This part replaces 572071000. |
| 3 |
414536500 |
Filter |
| 4 |
414420700 |
Spring Clamp |
| 5 |
414415200 |
Spring Clamp |
| 6 |
219704412 |
Polyurethane Hose, 8 Mm 3000Mm Long |
| 7 |
570023000 |
Insulating Ring |
| 8 |
414227300 |
Clip |
| 9 |
519000001 |
Spring |
| 10 |
293600120 |
OIL PRE-MIX 12 X 500ML - Call your local BRP dealership This part replaces 413803100. |
| 11 |
414580700 |
Male Connector |
| 12 |
709200285 |
Grommet This part replaces 570135100. |
| 13 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 14 |
414554800 |
Spring Clamp |
| 15 |
219704407 |
Tubing 10 MM 1000MM Long |
| 16 |
414681800 |
LEVEL SWITCH - Call your local BRP dealership |
| 17 |
414681900 |
Float |
| 779120 |
2T |
Snowmobile Premium Mineral Oil This part replaces 413803000. 779120 |
