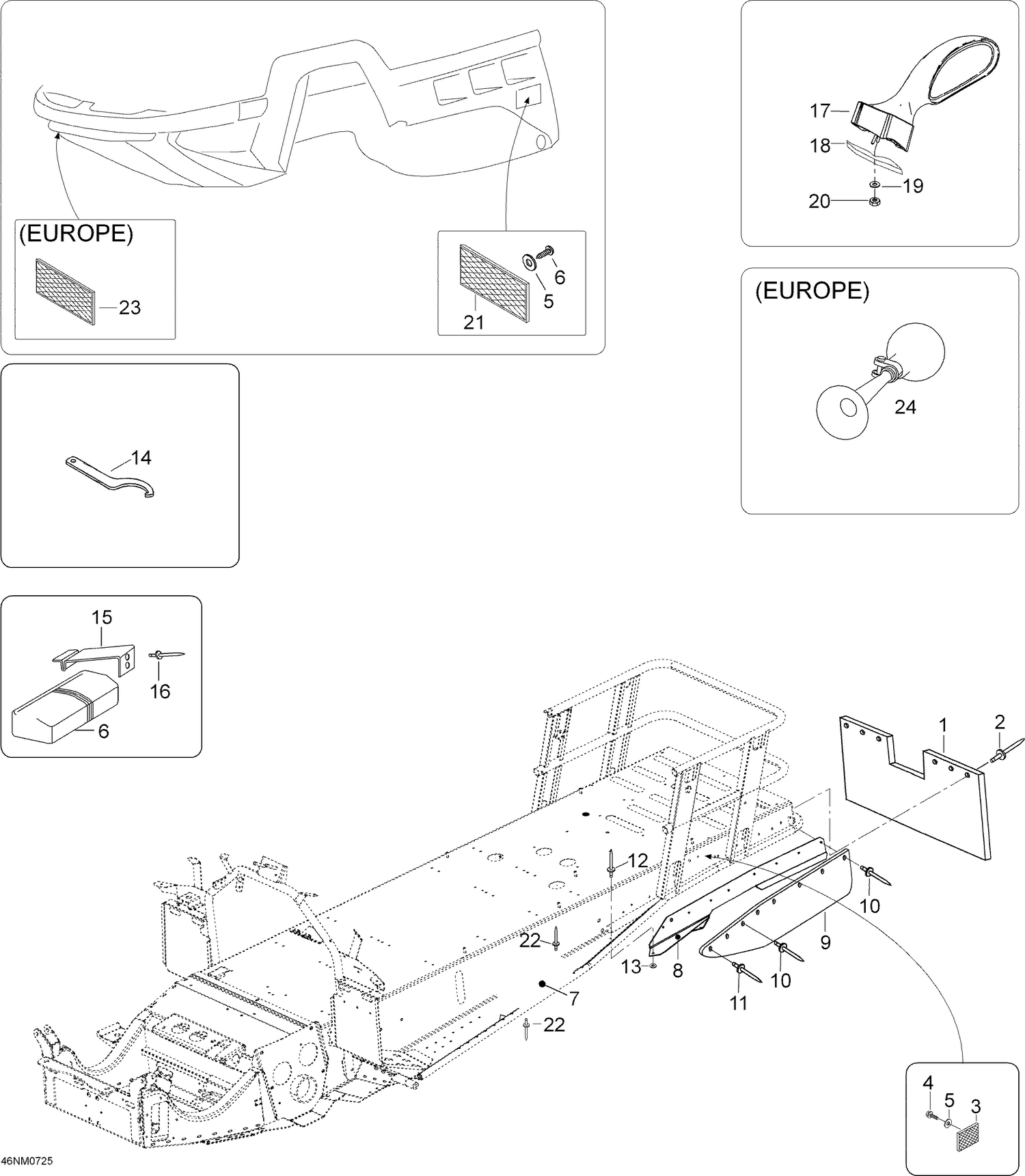

| Ref | Part Number | Description |
|---|
| 1 |
535437 |
Snow guard |
| 2 |
36036 |
Rivet |
| 4 |
40070 |
Slot sc. M5 x 10DIN7985m4.6Zne(1=10pcs) - Call your local BRP dealership |
| 5 |
20018 |
Washer A5,3 |
| 6 |
605350525 |
TOOL KIT - Call your local BRP dealership |
| 8 |
605251248 |
LH SIDE SNOW GUARD - Call your local BRP dealership |
| 8 |
605251249 |
RH SIDE SNOW GUARD - Call your local BRP dealership |
| 9 |
5142828 |
Side snow quard |
| 10 |
36097 |
Rivet Profix 4.0x13 Al musta(1=50pcs) - Call your local BRP dealership |
| 11 |
36891 |
RIVET - Call your local BRP dealership |
| 12 |
36005 |
Rivet |
| 13 |
20008 |
Washer A5,3 |
| 14 |
529035582 |
ADJUSTMENT WRENCH - Call your local BRP dealership |
| 15 |
5346728 |
Spring plate |
| 16 |
36108 |
Rivet |
| 17 |
605250582 |
L.H. Mirror |
| 17 |
605250583 |
R.H. Mirror |
| 18 |
605350576 |
L.H. Adapter |
| 18 |
605350577 |
RH ADAPTOR - Call your local BRP dealership |
| 19 |
20037 |
Washer A4,3 |
| 20 |
33008 |
Elastic stop nut M4 |
| 21 |
414510200 |
REFLECTOR, AMBER - Call your local BRP dealership |
| 22 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
