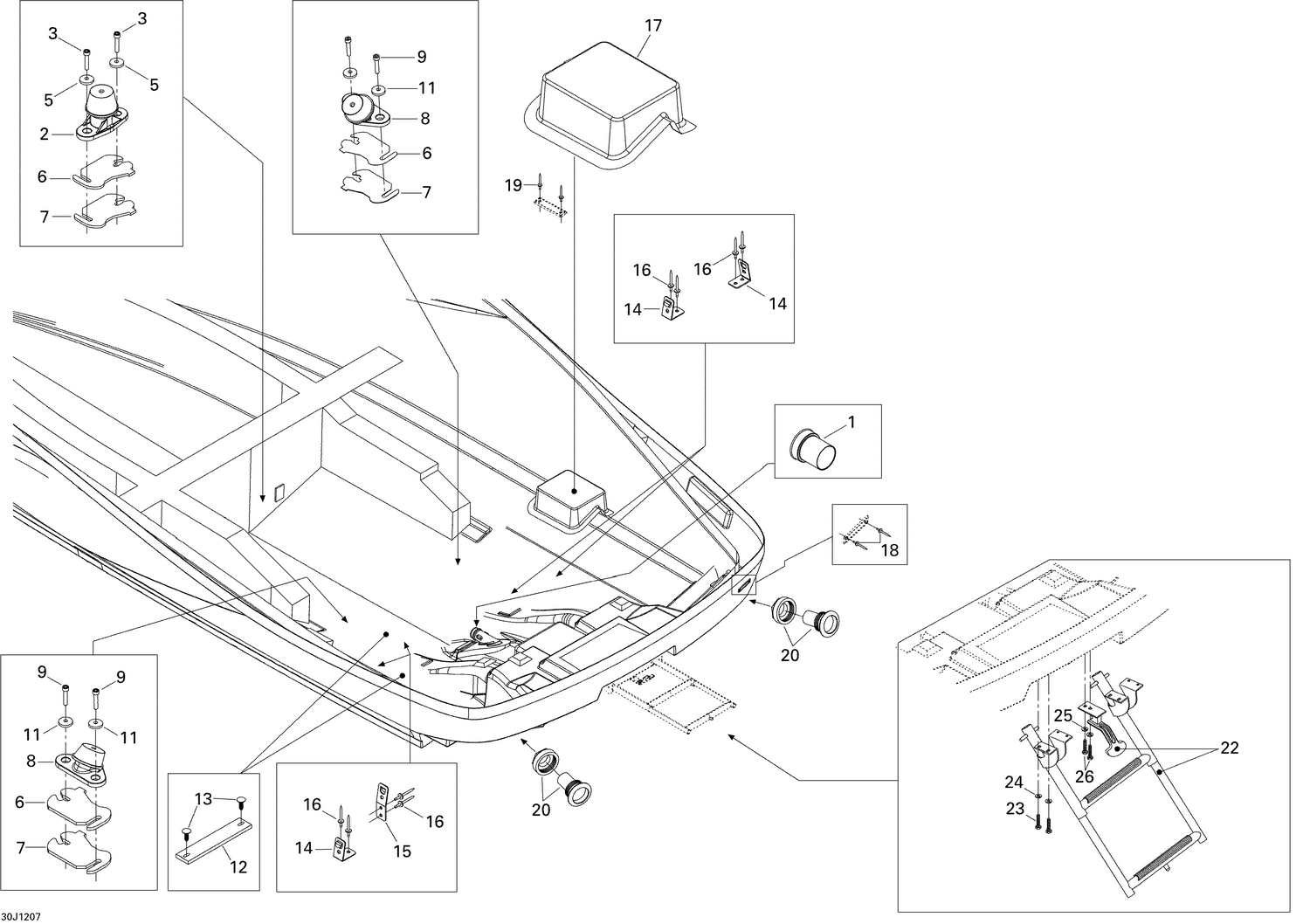

| Ref | Part Number | Description |
|---|
| 1 |
292000974 |
HULL INSERT, 50 MM - Call your local BRP dealership |
| 2 |
270001096 |
Engine Support Ass'y This part replaces 270000690. |
| 3 |
205084560 |
Socket Head Screw M8 X 45 |
| 5 |
250200018 |
Cone Washer |
| 6 |
0460868 |
NEEDS DESCRIPTION This part replaces 204250048. |
| 7 |
Not |
Available As Spare Part - Shim 1.3 mm |
| 8 |
270001081 |
Engine Support Ass'y This part replaces 270000688. |
| 9 |
205084060 |
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership |
| 11 |
250200018 |
Cone Washer |
| 12 |
204060702 |
MUFFLER RUBBER PAD - Call your local BRP dealership |
| 13 |
293730006 |
Black, Dart |
| 14 |
204060017 |
Strap Clip 90° |
| 15 |
293850024 |
STRAP CLIP - Call your local BRP dealership |
| 16 |
293150088 |
Pop Rivet 3/16" |
| 17 |
292800051 |
Battery Tray |
| 18 |
293150033 |
Pop Rivet 1/8'' |
| 19 |
293150037 |
Avdel Rivet 3/16" |
| 20 |
292800074 |
HULL INSERT - Call your local BRP dealership |
| 22 |
262000151 |
LADDER, 2 STEPS - Call your local BRP dealership |
| 23 |
207163560 |
Hex. Screw M6 X 35 |
| 24 |
234161601 |
Lock Washer Helical M6 |
| 25 |
234041600 |
Flat Washer 4 mm, Stainless |
