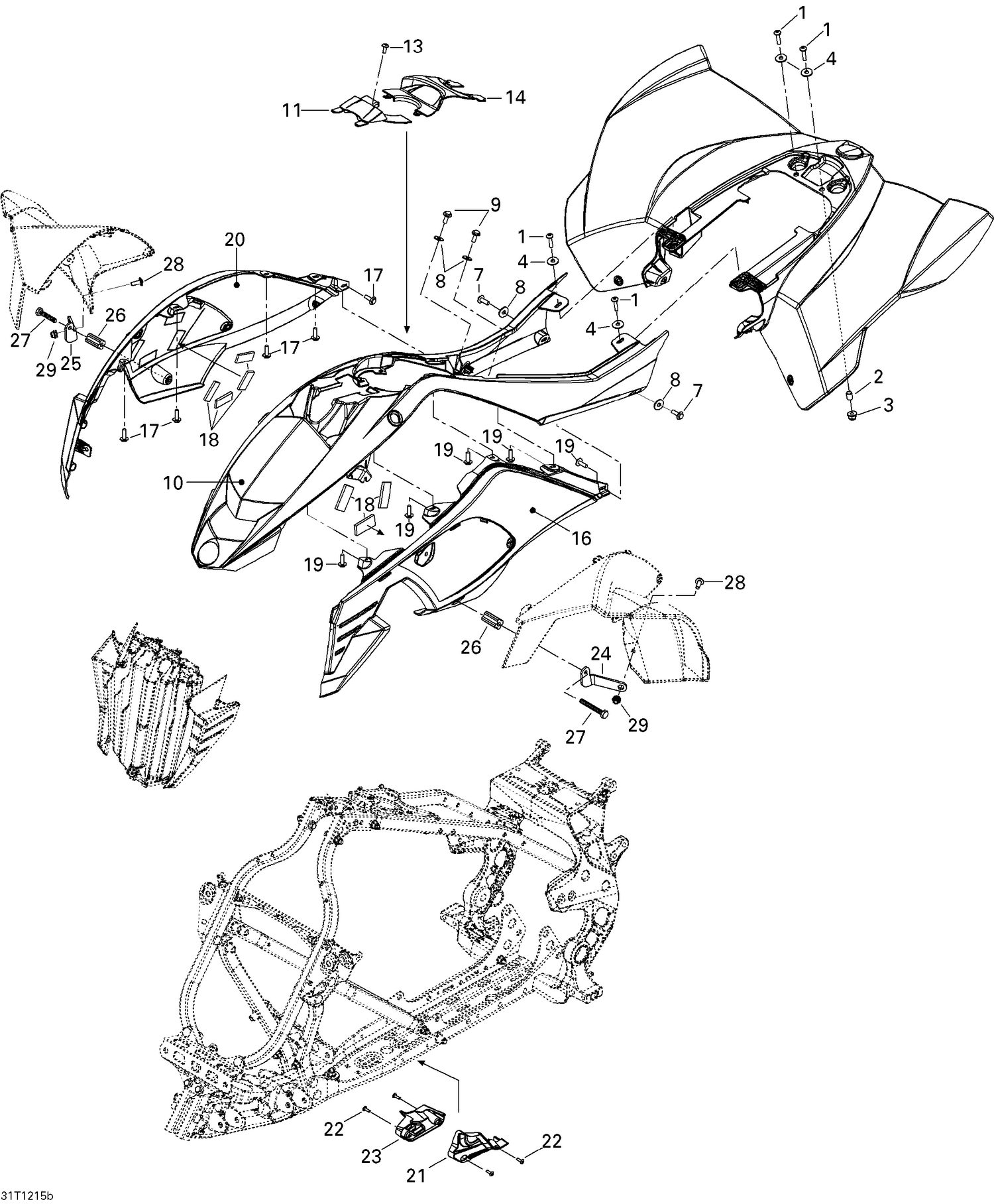

| Ref | Part Number | Description |
|---|
| 1 |
250000762 |
Torx Screw M5 X 25 This part replaces 250000300. |
| 2 |
709000162 |
Bushing |
| 3 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 4 |
391301600 |
Washer |
| 7 |
207663094 |
Hex. Flange Screw |
| 8 |
234062670 |
Stainless Steel Flat Washer |
| 9 |
207663094 |
Hex. Flange Screw |
| 10 |
705001750 |
FRONT FASCIA - Call your local BRP dealership |
| 11 |
705001758 |
DASH-BOARD - Call your local BRP dealership |
| 13 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 14 |
705002288 |
ACCESS COVER - Call your local BRP dealership |
| 16 |
705004039 |
LH SIDE PANEL - Call your local BRP dealership |
| 17 |
243141630 |
Hex. Plastic Screw M4.8 X 16 |
| 18 |
705002447 |
Gasket |
| 19 |
243141630 |
Hex. Plastic Screw M4.8 X 16 |
| 20 |
705004040 |
RH SIDE PANEL - Call your local BRP dealership |
| 21 |
705002631 |
LH ENGINE MOULDING - Call your local BRP dealership |
| 22 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 23 |
705002632 |
RH Engine Moulding |
| 24 |
705002695 |
LH FENDER SUPPORT - Call your local BRP dealership |
| 25 |
705002696 |
RH FENDER SUPPORT - Call your local BRP dealership |
| 26 |
705002697 |
BUSHING - Call your local BRP dealership |
| 27 |
207265560 |
Hex. Screw M6 X 55, Scotch Grip |
| 28 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
