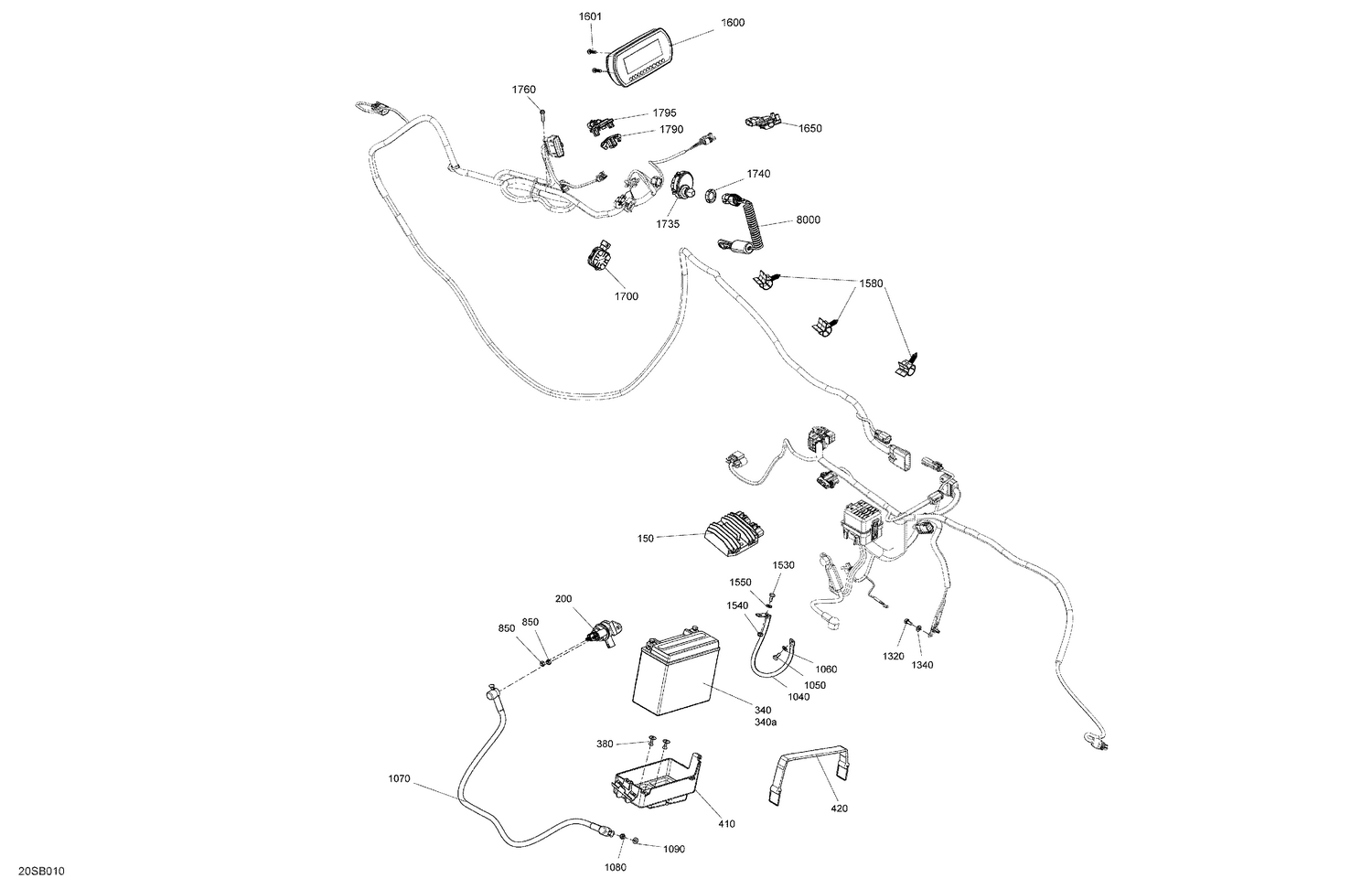

08- Electric - System
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 150 | 710001103 | Voltage Regulator |
| 200 | 278003012 | Starter Relay |
| 340a | 250000282 | Battery Bolt Kit |
| 380 | 293150123 | Pop Rivet 3/16" |
| 410 | 278003473 | Battery Support |
| 420 | 293850095 | Fuel Tank Strap |
| 850 | 232561200 | Brass Elastic Stop Nut M6 |
| 1040 | 278003451 | Ground Battery Cable |
| 1050 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 1060 | 234061600 | Stainless Flat Washer M6 |
| 1070 | 278003369 | Starter Cable |
| 1080 | 232561200 | Brass Elastic Stop Nut M6 |
| 1090 | 234061600 | Stainless Flat Washer M6 |
| 1320 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 1340 | 234061600 | Stainless Flat Washer M6 |
| 1530 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 1540 | 232561200 | Brass Elastic Stop Nut M6 |
| 1550 | 234061600 | Stainless Flat Washer M6 |
| 1580 | 278003564 | Retainer |
| 1600 | 278003430 | Multifunction Mono Compact Gauge |
| 1601 | 241152060 | Hex. Flange Screw K50 X 20 |
| 1650 | 278002283 | Throttle Position Sensor |
| 1700 | 278003802 | LH Switch Keypad |
| 1740 | 278002963 | Safety Nut (DESS Switch) |
| 1760 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 1790 | 278003537 | O.T.A.S Actuator |
| 1795 | 278003538 | O.T.A.S. Sensor |
