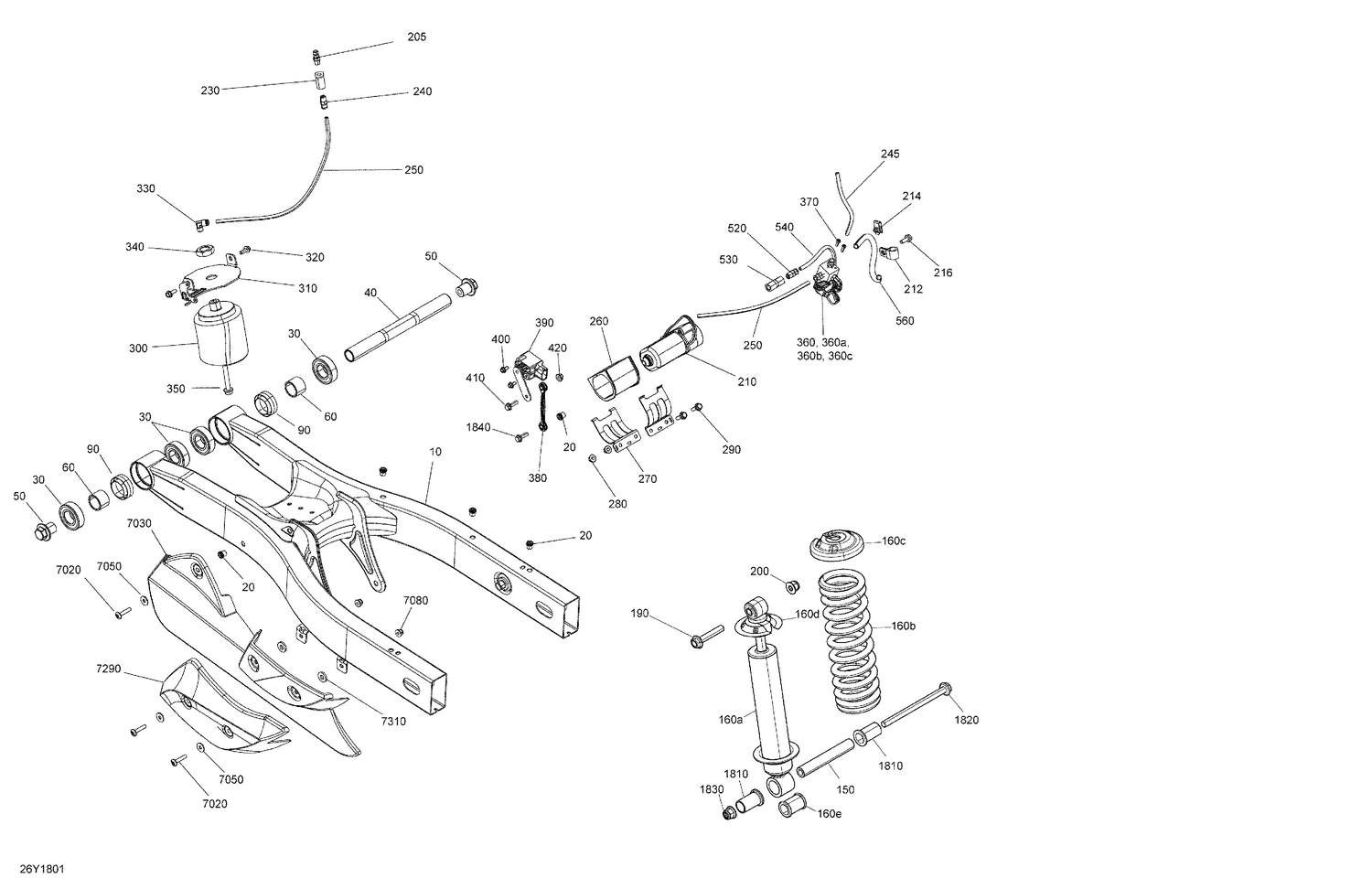

08- Rear Suspension
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 706001574 | Swing Arm |
| 20 | 293450275 | Insert |
| 30 | 293350115 | Ball Bearing |
| 40 | 706001182 | Swing Arm Axle |
| 50 | 706001579 | Bolt M20 |
| 60 | 706001152 | Spacer |
| 90 | 706001366 | Sleeve |
| 150 | 706000409 | Shock Absorber Shaft |
| 160a | 706001552 | Shock Absorber |
| 160b | 706001542 | Shock Absorber Spring |
| 160c | 503193781 | Spring Stopper |
| 160d | 503193782 | Cap |
| 160e | 503191609 | Urethane Cushion |
| 190 | 207605554 | Hex. Flange Screw M10 X 55 |
| 200 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 205 | 706002797 | Air Valve |
| 210 | 706001349 | Compressor |
| 212 | 705600232 | Hose Retainer 13 mm |
| 214 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 216 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 230 | 706000735 | Pneumatic Connector |
| 240 | 706000869 | Connector |
| 245 | 219704415 | Hose 4.32Mm 3000Mm Long |
| 250 | 219704415 | Hose 4.32Mm 3000Mm Long |
| 260 | 706000631 | Compressor Isolator |
| 270 | 503193103 | Compressor Bracket |
| 280 | 233061414 | Hex. Flange Nut M6 |
| 290 | 207662044 | Hex. Flange Screw M6 X 20 |
| 300 | 219800175 | Air Damper Kit |
| 310 | 706001082 | Support Plate |
| 320 | 210261050 | Hex. Forming Screw M6 X 10 |
| 330 | 706001018 | Elbow 90° |
| 340 | 250100119 | Jam Nut M20 |
| 350 | 207687544 | Hex. Flange Screw M8 X 75 |
| 360a | 706000869 | Connector |
| 360b | 219704425 | Tubing 6 Mm 3000Mm Long |
| 360c | 706000928 | Elbow 90° |
| 370 | 205041254 | Socket Head Screw M4 X 12 |
| 380 | 706202505 | Tie Rod |
| 390 | 710001651 | Position Sensor |
| 400 | 207551044 | Hex. Flange Screw M5 X 10 |
| 410 | 207662044 | Hex. Flange Screw M6 X 20 |
| 420 | 233061414 | Hex. Flange Nut M6 |
| 520 | 706000869 | Connector |
| 530 | 706000831 | Ckeck Valve |
| 540 | 706000891 | Hose |
| 560 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 1810 | 706000410 | Spacer |
| 1820 | 230604034 | Hex. Flange Screw M10 X 140 |
| 1830 | 233201434 | Hex. Flange Elastic Nut M10 |
| 1840 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 7020 | 250000842 | Stainless, Torx Screw M6 X 30 |
| 7030 | 705002092 | Lower Belt Guard |
| 7050 | 234062670 | Stainless Steel Flat Washer |
| 7080 | 233261494 | Hex. Flange Elastic Nut M6 |
| 7290 | 705009446 | Belt Guard Moulding |
