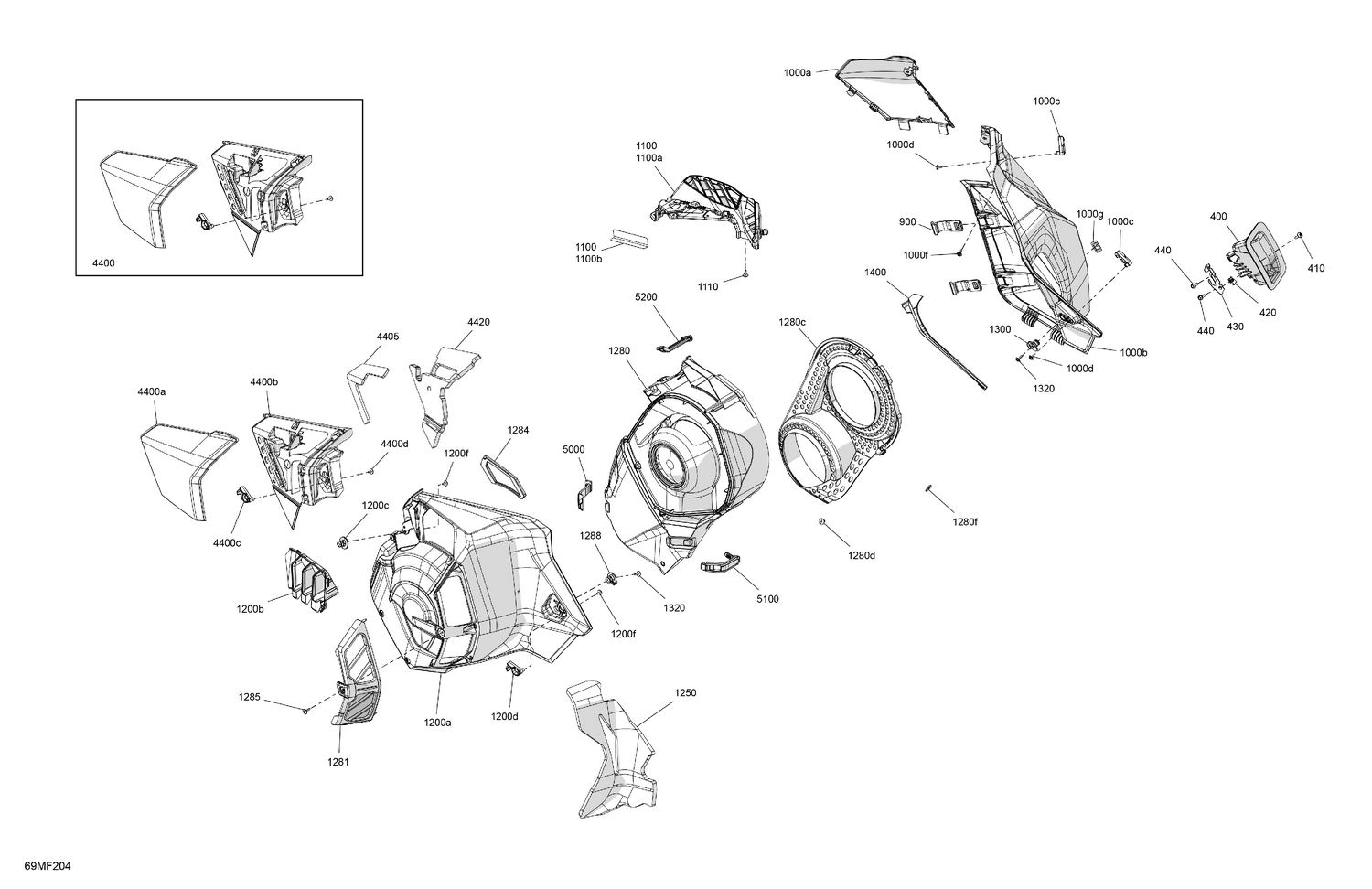

07- Body - Side Panels
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 400 | 517306759 | RH Console |
| 410 | 250000586 | Torx Truss M5 X 20 |
| 420 | 250000958 | Panel Nut M5 X 0.8 |
| 430 | 517306315 | Rope Guide |
| 440 | 210261250 | Hex. Flange Screw M6 X 12 |
| 900 | 517308267 | Front Soft Latch |
| 1000a | 517308560 | Timeless Black Metallic, RH Front Panel |
| 1000b | 517308131 | RH Rear Panel |
| 1000c | 517308587 | RH Latch |
| 1000d | 250000725 | Screw M4 X 16 |
| 1000f | 293150104 | Pop Rivet 3/16" |
| 1000g | 517305109 | Rivet Plate |
| 1100a | XXX | Not Available As Spare Parts |
| 1100b | 517308788 | Heat Shield |
| 1110 | 250000725 | Screw M4 X 16 |
| 1200a | 517307954 | Deep Black, LH Rear Panel |
| 1200b | 517308519 | Deep Black, LH Panel Grille |
| 1200c | 517305985 | Rear Stud |
| 1200d | 517308586 | LH Latch |
| 1200f | 250000805 | Plastite Screw M4 X 10 |
| 1250 | 517308747 | Bonded Foam |
| 1280c | 417300604 | Int CVT Cover |
| 1280d | 293150104 | Pop Rivet 3/16" |
| 1280f | 250200140 | Washer |
| 1281 | 517309318 | Filter Grille |
| 1284 | 517308716 | Filter Grille |
| 1285 | 250000889 | Screw M4 X 16 |
| 1288 | 517308123 | Lug Angle Short |
| 1300 | 517305985 | Rear Stud |
| 1320 | 250000725 | Screw M4 X 16 |
| 1400 | 517308556 | Molded Gasket |
| 4400a | XXX | Not Available As Spare Parts |
| 4400b | 517308259 | LH Lower Panel - Call your local BRP dealership |
| 4400c | 517308586 | LH Latch |
| 4400d | 250000805 | Plastite Screw M4 X 10 |
| 4405 | 517308715 | Bonded Foam |
| 4420 | 517308763 | Bonded Foam |
| 5000 | 517308518 | LH Lower Soft Latch |
| 5100 | 517309305 | Rear Soft Latch |
