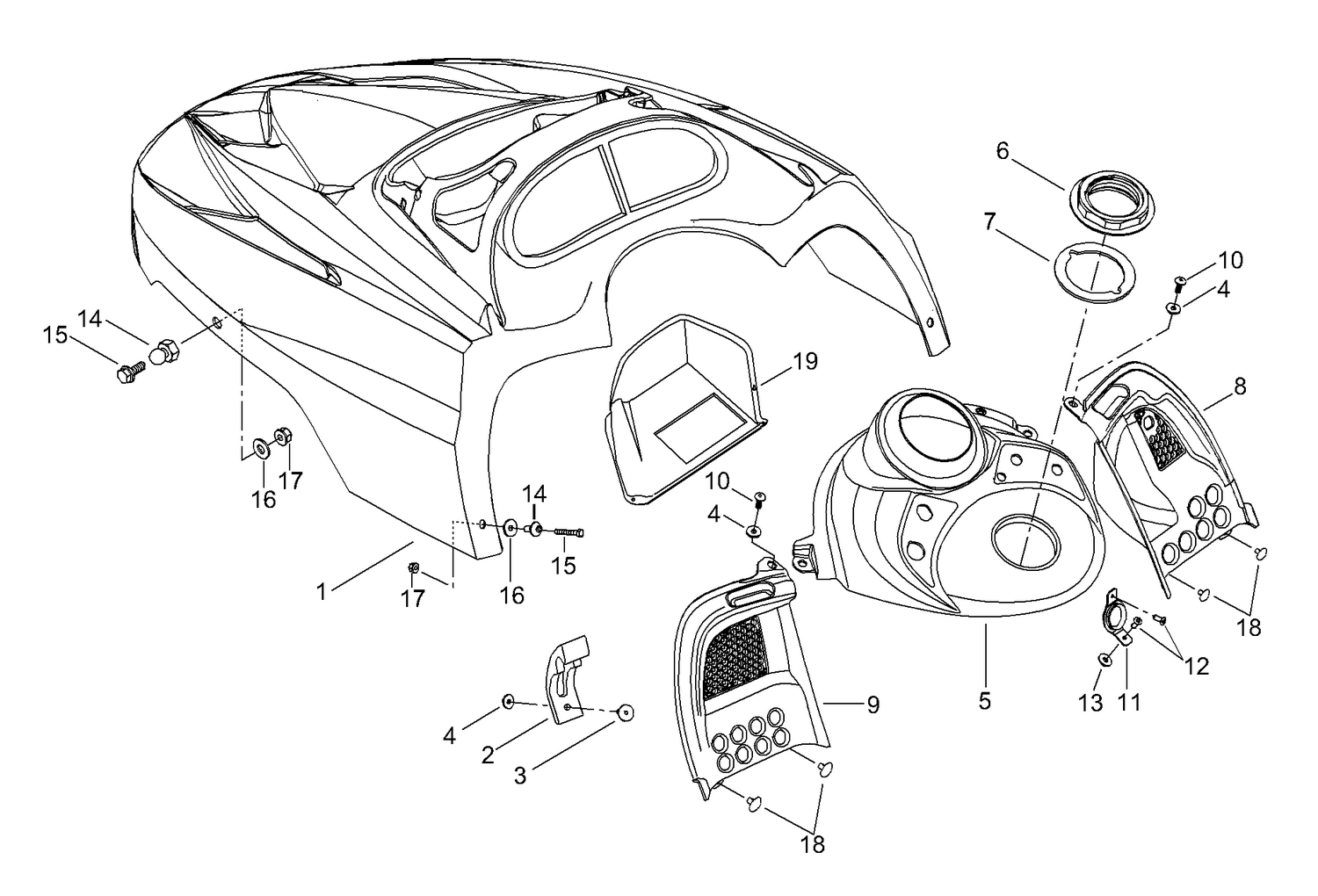

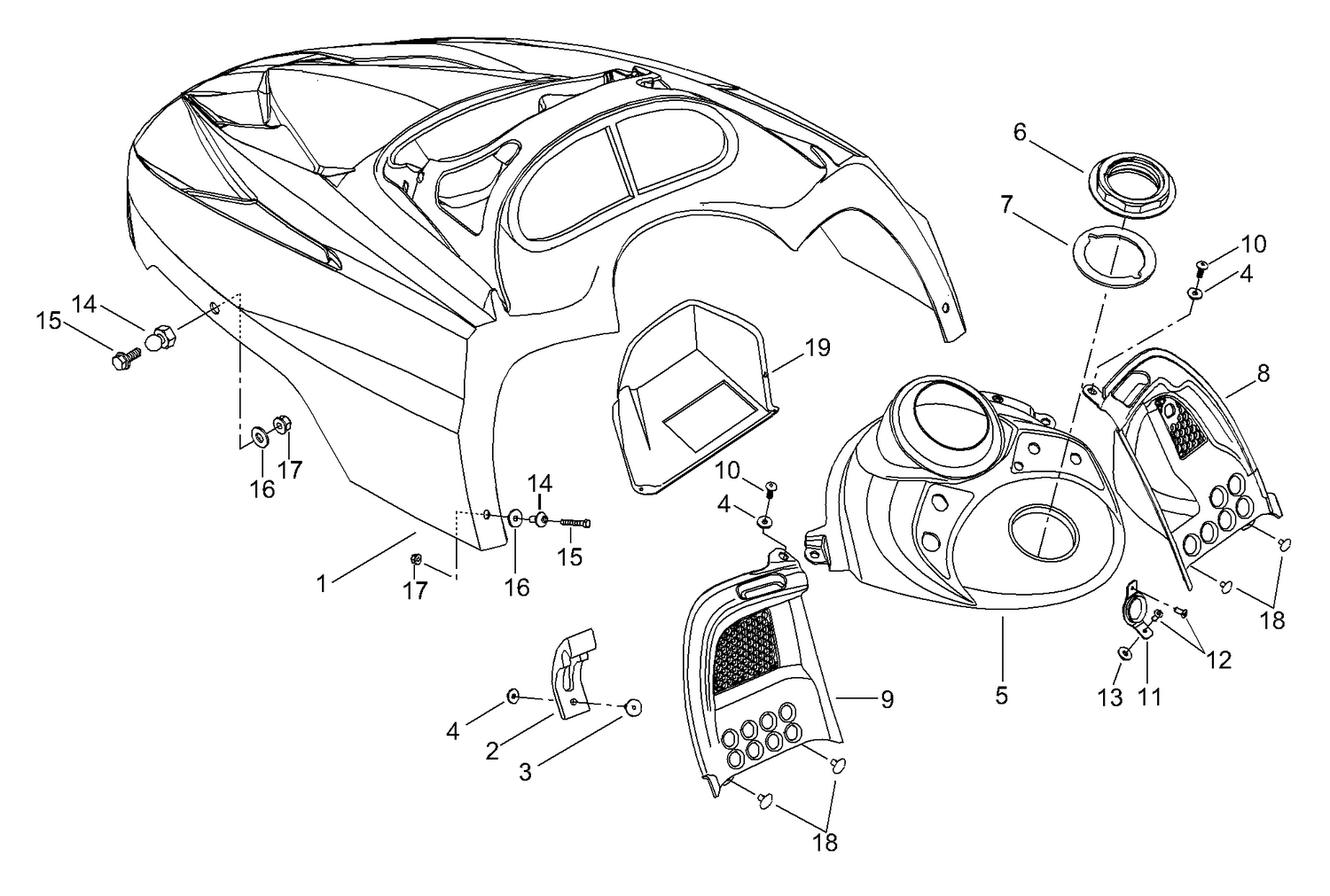

09- Hood
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5146851 | Hood, red |
| 2 | 570027100 | Hood latch |
| 3 | 36037 | Rivet |
| 4 | 20008 | Washer |
| 5 | 517302667 | Center console |
| 6 | 517302043 | CONSOLE NUT - Call your local BRP dealership |
| 7 | 5447116 | Gasket - Call your local BRP dealership |
| 8 | 517302005 | RH CONSOLE - Call your local BRP dealership |
| 9 | 517302006 | LH CONSOLE - Call your local BRP dealership |
| 10 | 250000676 | Forming Screw M5 x 16 This part replaces 732600030. |
| 11 | 517302129 | Rope guide |
| 12 | 36002 | Rivet |
| 13 | 517302286 | Rubber stopper |
| 14 | 605449087 | Pin |
| 15 | 40168 | Screw M4x25 |
| 16 | 20037 | Washer |
| 17 | 33008 | Nut elastic M4 |
| 18 | 36036 | Rivet |
