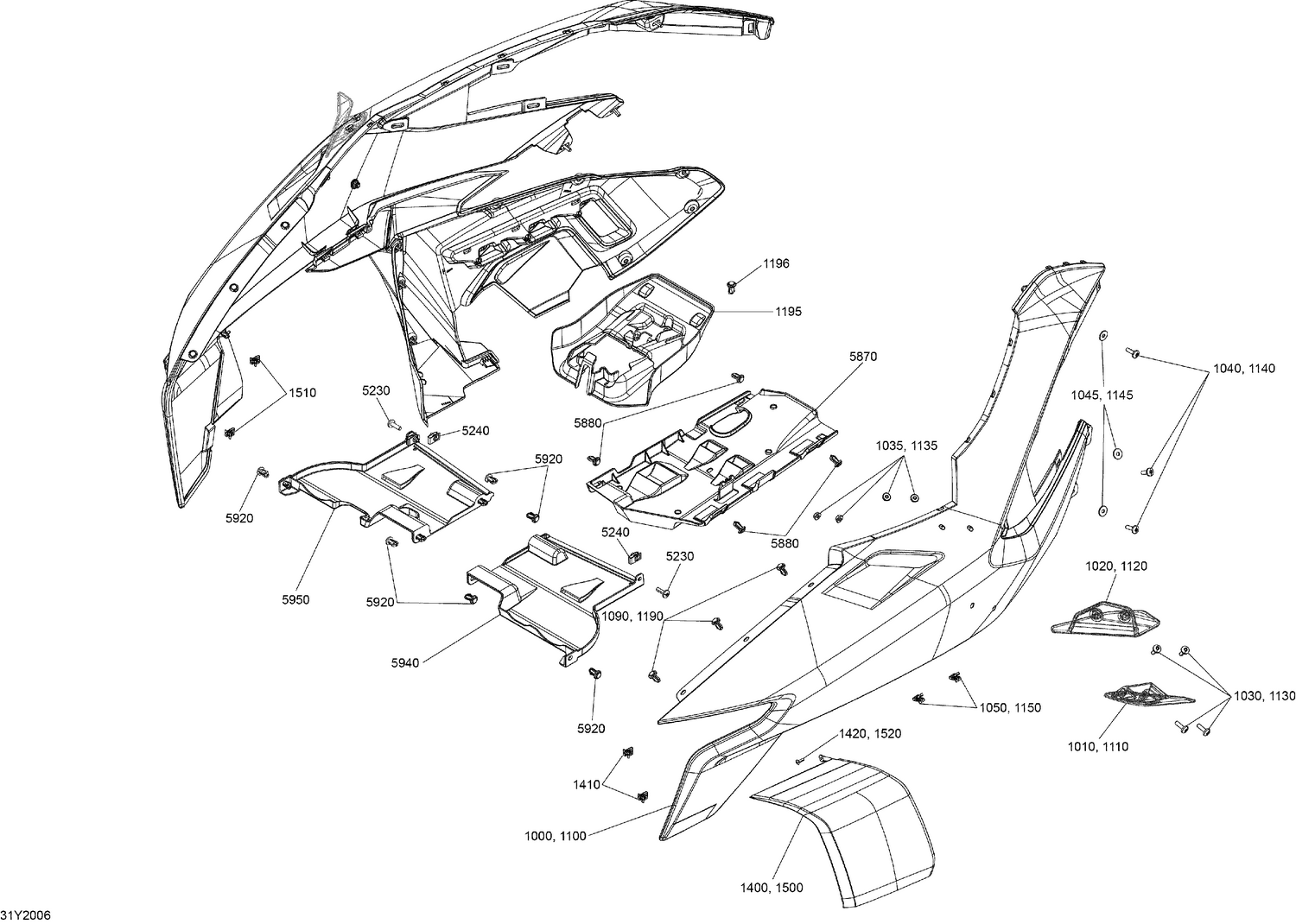

09- Body And Accessories Fairing
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1010 | 705015953 | LH Lower Air Deflector This part replaces 705014708. |
| 1020 | 705014710 | LH Upper Air Deflector |
| 1030 | 250000705 | Torx Truss Screw M6 X 20 |
| 1035 | 233161414 | Hex. Flange Nut M6 |
| 1040 | 250000705 | Torx Truss Screw M6 X 20 |
| 1045 | 234062670 | Stainless Steel Flat Washer |
| 1050 | 517302785 | Edge Clip |
| 1090 | 293150230 | Tuflok Plastic Rivet |
| 1110 | 705015954 | RH Lower Air Deflector This part replaces 705014709. |
| 1120 | 705014711 | RH Upper Air Deflector |
| 1130 | 250000705 | Torx Truss Screw M6 X 20 |
| 1135 | 233161414 | Hex. Flange Nut M6 |
| 1140 | 250000705 | Torx Truss Screw M6 X 20 |
| 1145 | 234062670 | Stainless Steel Flat Washer |
| 1150 | 517302785 | Edge Clip |
| 1190 | 293150230 | Tuflok Plastic Rivet |
| 1195 | 705014871 | Heat Shield |
| 1196 | 293150230 | Tuflok Plastic Rivet |
| 1400 | 708201167 | LH Scoop In This part replaces 708200934. |
| 1410 | 517302785 | Edge Clip |
| 1420 | 250000577 | Torx Truss Screw K40 X 12 |
| 1500 | 708201168 | RH Scoop In This part replaces 708200935. |
| 1510 | 517302785 | Edge Clip |
| 1520 | 250000577 | Torx Truss Screw K40 X 12 |
| 5230 | 250000705 | Torx Truss Screw M6 X 20 |
| 5240 | 250100198 | Panel Nut M6 X 1.0 |
| 5870 | 705014742 | LH Deflector Panel |
| 5880 | 293150230 | Tuflok Plastic Rivet |
| 5920 | 293150230 | Tuflok Plastic Rivet |
| 5940 | 705005438 | LH Skid Plate |
