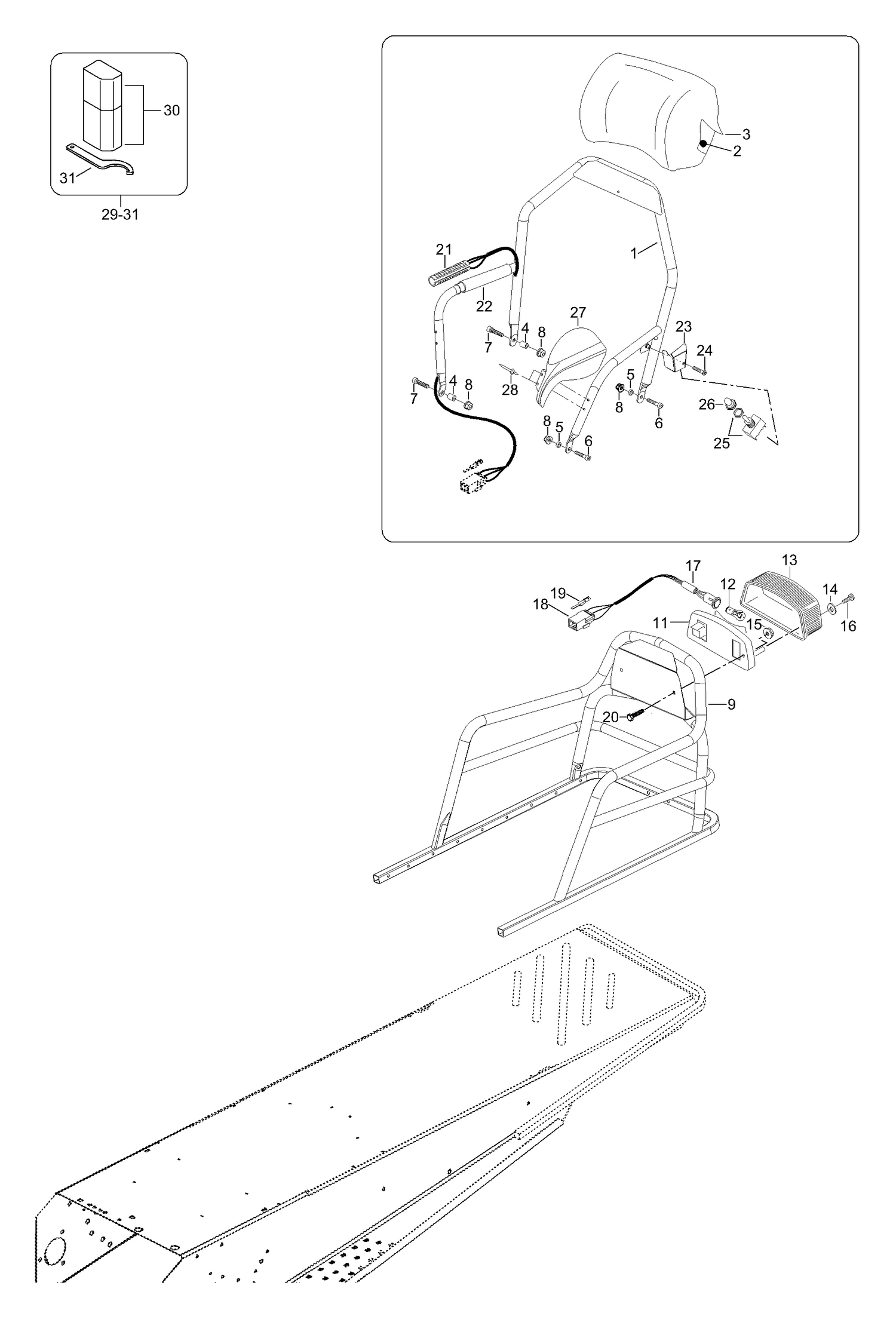

| Ref | Part Number | Description |
|---|
| 1 |
605250296 |
Backrest |
| 2 |
605349172 |
Foam |
| 3 |
605350799 |
Cover |
| 4 |
5446380 |
Sleeve |
| 5 |
5446381 |
Sleeve |
| 6 |
40135 |
Allen sc. M8 x 30 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 7 |
40286 |
Allen sc. M8 X 45 DIN912m8.8Zn(1=10pcs) - Call your local BRP dealership |
| 8 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 9 |
605150300 |
Rack assy |
| 11 |
515175397 |
LAMP HOUSING - Call your local BRP dealership |
| 12 |
520000758 |
Bulb This part replaces 410504000. |
| 13 |
414513700 |
Lens |
| 14 |
414516400 |
Washer - Call your local BRP dealership |
| 15 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 16 |
209632540 |
Phillips Tapping Screw M3.9 X 25 This part replaces 414516300. |
| 17 |
515175852 |
Adaptor |
| 18 |
42271 |
Male connector housing |
| 19 |
605642629 |
Connector AMP 926882-3 - Call your local BRP dealership This part replaces 42614. |
| 20 |
40149 |
Locking screw M6 x 30 |
| 21 |
515175573 |
Heater |
| 22 |
415050300 |
Grip |
| 23 |
605350310 |
Bracket |
| 24 |
40393 |
Allen screw M6 x 30 |
| 25 |
410107300 |
Switch |
| 26 |
515175281 |
Cover |
| 27 |
572089400 |
RH Passengers hand grip shelter |
| 27 |
572089500 |
LH Passengers hand grip shelter |
| 28 |
36037 |
Rivet |
| 30 |
708200043 |
TOOLS BOX - Call your local BRP dealership This part replaces 572036310. |
