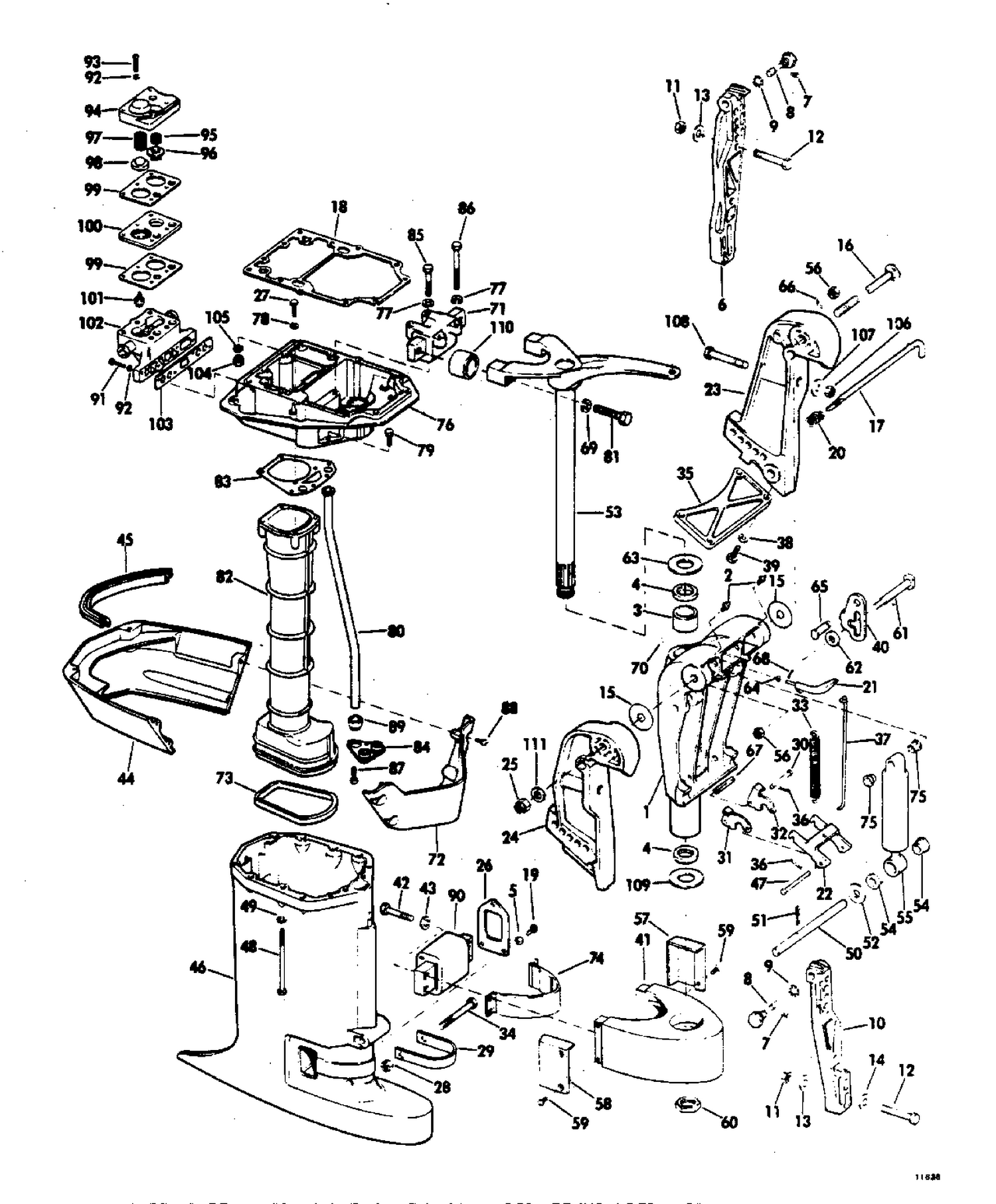

| Ref | Part Number | Description |
|---|
| 1 |
0384206 |
SWIVEL BRACKE |
| 3 |
0313880 |
BUSHING, Lower |
| 4 |
0317776 |
SEAL |
| 6 |
0478848 |
CLAMP ASSEMBLY, Port |
| 10 |
0387483 |
CLAMP ASSY, Starboard (incl items 7,8, and 9 This part replaces 0278849. |
| 11 |
0363254 |
NUT, Stern bracket screw This part replaces 0307407. |
| 12 |
0363012 |
SCREW, Bracket mounting This part replaces 0313327. |
| 13 |
0307238 |
RONDELLE |
| 14 |
0320248 |
RONDELLE, écrou This part replaces 0312910. |
| 15 |
0313820 |
THRUSH WASHER, Stern brkt. |
| 16 |
0307226 |
BOLT, Tilting |
| 17 |
0383521 |
THRUST ROD AND RETAINER |
| 18 |
0315088 |
GASKET, Adapter to pewerhead |
| 20 |
0307068 |
SPRING & Thrust rod |
| 21 |
0383618 |
SHAF TAND LEVER ASSEMBLY |
| 22 |
0315025 |
LOCKING LEVER |
| 23 |
0314793 |
STERN BRACKET, Port |
| 24 |
0315994 |
STERN BRACKET, Starboard |
| 25 |
0313650 |
NUT |
| 26 |
0314944 |
RETAINER PLATE |
| 29 |
0314990 |
STRAP, Exh hsg |
| 30 |
0315023 |
PIN, Link |
| 31 |
0317612 |
LINK, Reverse lock starboard |
| 32 |
0317611 |
LINK, Reverse lock port |
| 33 |
0315078 |
SPRING, Reverse lock |
| 34 |
0315058 |
SCREW, Strap to exh. housing |
| 35 |
0314987 |
PLATE, Stern bracket |
| 37 |
0315026 |
ROD, Reverse lock release |
| 39 |
0552940 |
SCREW, Stern bracket |
| 40 |
0315029 |
TILT LOCK PORT |
| 40 |
0315995 |
MOUNT BRKT. AND STUD ASSY |
| 41 |
0385042 |
MOUNT BRACKET ASSY |
| 43 |
0307708 |
RONDELLE GROWER |
| 44 |
0279108 |
COVER, Exh hsg. rear |
| 45 |
SEAL, |
Cover |
| 46 |
0316509 |
EXHAUST HOUSING, Outer |
| 47 |
0315022 |
PIN, Link to locking lever |
| 48 |
0315132 |
SCREW, Exh. hsg. |
| 50 |
0315028 |
PIVOT PIN, Shjock absorber |
| 51 |
0302804 |
COTTER IN |
| 52 |
0307764 |
WASHER, Inner |
| 53 |
0384759 |
STEERING ARM ASSY., Long |
| 54 |
0315222 |
BUSHING SHOCK ABSORB |
| 55 |
0383617 |
SHOCK ABSORBER |
| 57 |
0314988 |
COVER , Mount brkt, lwr. port |
| 58 |
0314989 |
COVER, Monting bracket, lower starboard |
| 59 |
0303587 |
SCRES,Cover plate |
| 60 |
0313429 |
NUT, Bracket to shaft |
| 61 |
0315027 |
SCREW, Schock absorber |
| 62 |
0315157 |
SPACER |
| 63 |
0313427 |
THRUST WASHER ,Pivot shaft |
| 64 |
0315079 |
WAVE WASHER |
| 65 |
0315030 |
SCREW, Shock absorber |
| 66 |
0315156 |
SPRING, Washer |
| 67 |
0316208 |
SPACER, Line reverse lock |
| 69 |
0322624 |
WASHER, Lag screw This part replaces 0313169. |
| 71 |
0384473 |
RUBBER MOUNT ASSEMBLY, Upper |
| 72 |
0314848 |
COVER, Exh. hsg. front |
| 73 |
0314937 |
SEAL |
| 74 |
0315049 |
SNUBBER LOWER MT. BRKT |
| 75 |
0315081 |
BAGUE, arbre de commande de sens de marche vers bloc-cylindres |
| 76 |
0316994 |
ADAPTER, Exhaust housing |
| 79 |
0329894 |
SCREW This part replaces 0302510. |
| 80 |
0315020 |
WATER TUBE |
| 81 |
0311840 |
SCREW, Rubber mount |
| 82 |
0316643 |
EXHAUST HOUSE, Inner |
| 83 |
0315010 |
GASKET, Exh. to adapter |
| 84 |
0315409 |
COUPLING, Flange |
| 85 |
0304055 |
SCREW |
| 86 |
0301438 |
SCREW |
| 87 |
0306446 |
SCREW, Coupling to adapter |
| 88 |
0305745 |
SCR., Lwr. mtr. cover frt. and rear |
| 89 |
0305145 |
GROMMET |
| 90 |
0384472 |
RUBBER MOUNT, Lower |
| 93 |
0330184 |
VIS, montage pompe This part replaces 0306259. |
| 94 |
0305710 |
COVER |
| 95 |
0305587 |
SPRING, Check valve |
| 96 |
0305654 |
CHECK VALVE |
| 97 |
0305591 |
SPRING, Vernathem valve |
| 98 |
0308070 |
VALVE |
| 99 |
0305586 |
GASKET |
| 100 |
0305711 |
PLATE, Termostat housing |
| 101 |
0384719 |
VERNA THERM |
| 102 |
0377326 |
HOUSING THERMOSTAT |
| 103 |
0305589 |
GASKET, Housing to adaper |
| 104 |
0316355 |
BUT, Carburetor mounting This part replaces 0315204. |
| 105 |
0306799 |
L'WASHER,Bracket to hsg. |
| 106 |
0363254 |
NUT, Stern bracket screw This part replaces 0307407. |
| 107 |
0307238 |
RONDELLE |
| 108 |
0363011 |
SCREW, Stern bracket mounting, 1/2 x 5.75 in. (146 mm) This part replaces 0313672. |
| 109 |
0316123 |
THRUST WASHER |
| 110 |
0315643 |
SNUBBER, Upper mount |
| 0278847 |
0278847 |
TRANSOM MOUNT KIT |
