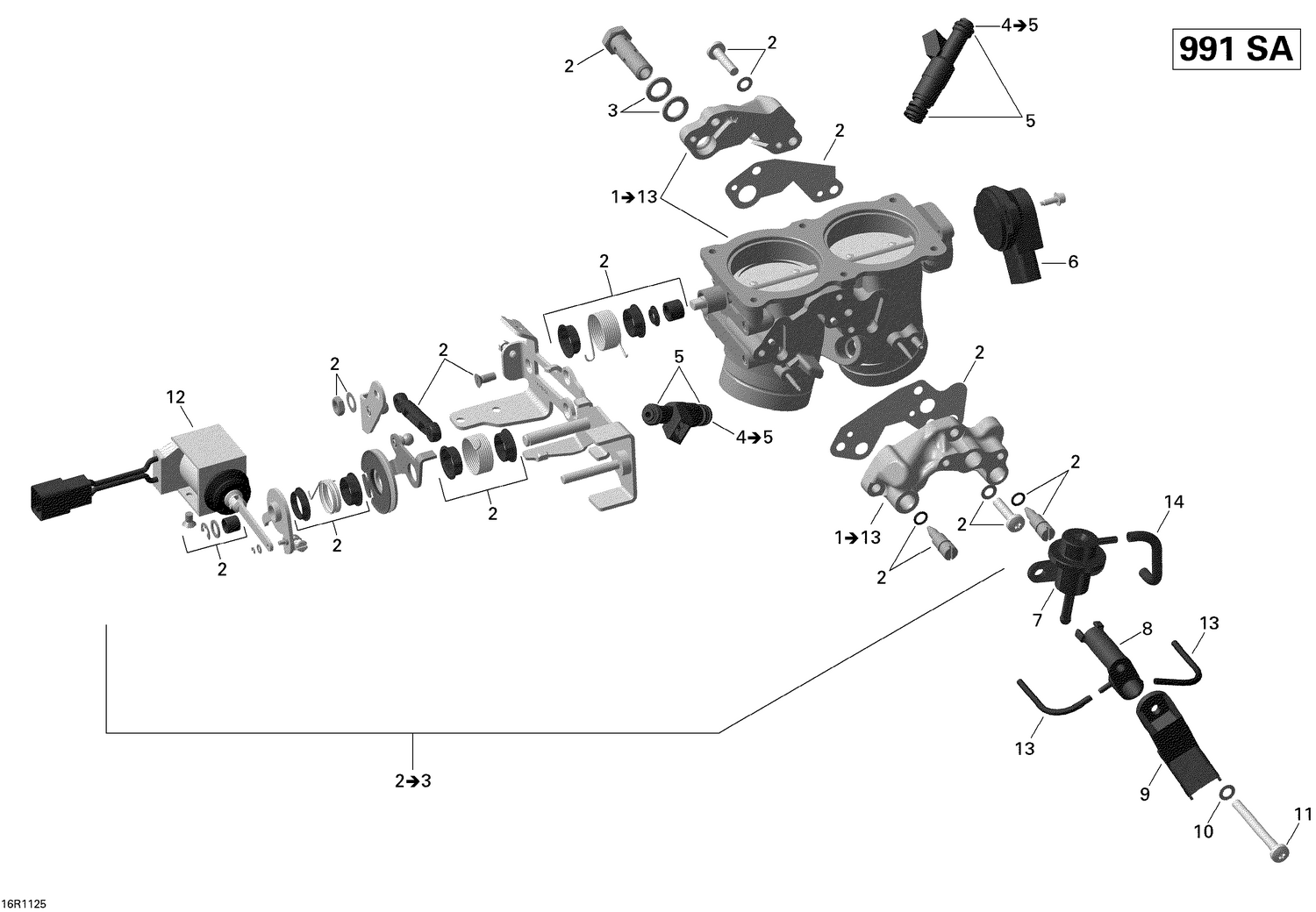

| Ref | Part Number | Description |
|---|
| 3 |
420250016 |
Aluminum Sealing Ring This part replaces 420250015. |
| 5 |
420631220 |
O-Ring |
| 6 |
420274030 |
Potentiometer |
| 7 |
420274020 |
PRESSURE REGULATOR - Call your local BRP dealership |
| 8 |
420460290 |
Adapter |
| 9 |
270600040 |
Pressure Sensor This part replaces 420274055. |
| 10 |
420845020 |
SPRING WASHER - Call your local BRP dealership |
| 11 |
420240373 |
ALLEN SCREW M6 X 60 - Call your local BRP dealership This part replaces 420240371. |
| 12 |
420281830 |
Solenoid, Blipper |
| 13 |
420960118 |
Hose, Sensor This part replaces 420960115. |
