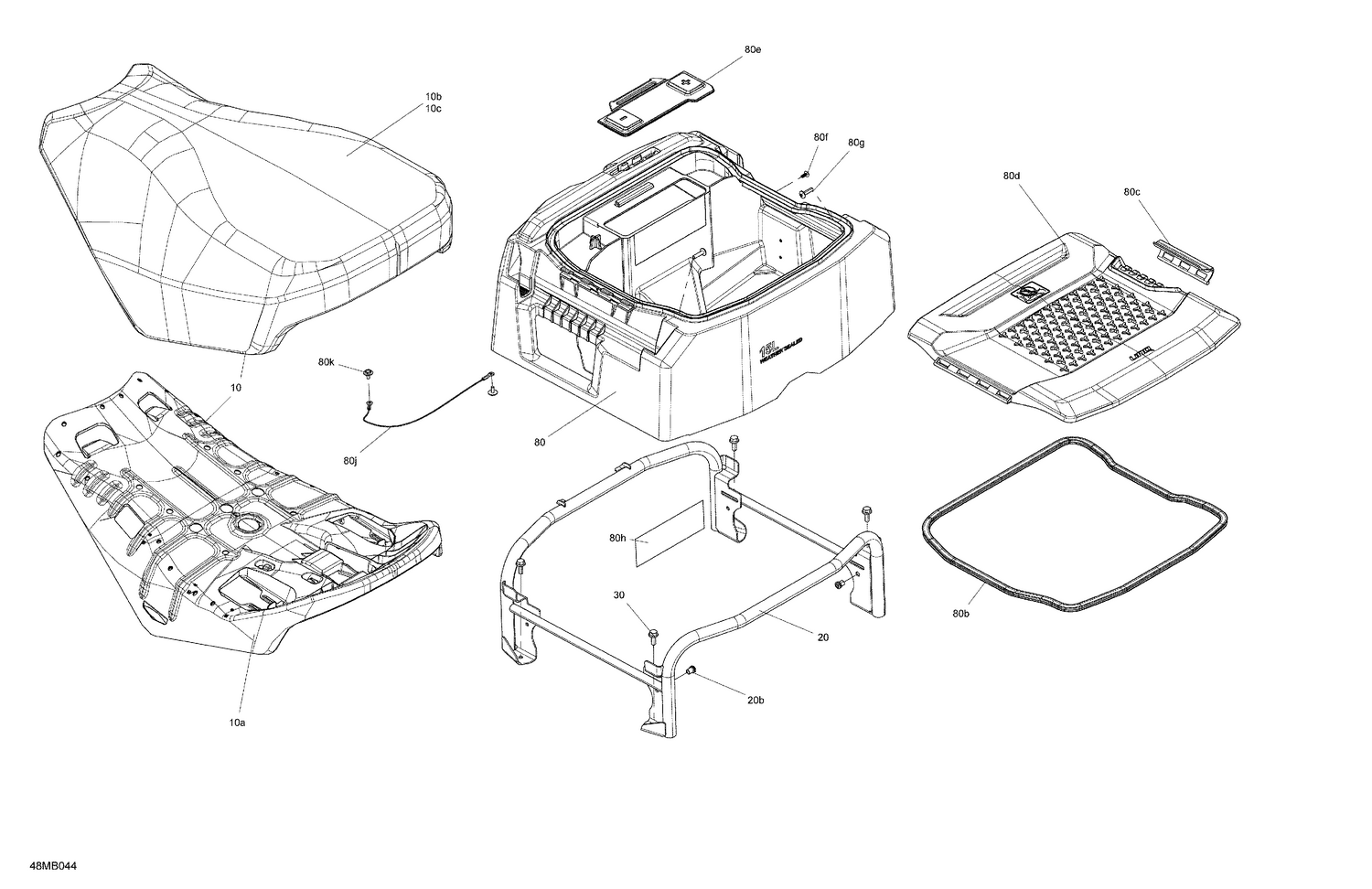

07- Body - Seat
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 510007142 | Driver Seat Base |
| 10b | 510006413 | Driver Seat Foam |
| 10c | 510006414 | Driver Seat Cover |
| 20b | 293450268 | Insert M5 X 0.8 |
| 30 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 80b | 293830188 | Seal, 1PC = 3M |
| 80c | 269502449 | Latch |
| 80d | 511001274 | Box Cover |
| 80e | 510006789 | Access Cover |
| 80f | 250001034 | Torx-Truss Screw K40 X 10 |
| 80g | 250000724 | Torx Screw M5 X 20 |
| 80h | 516009465 | Warning Label |
| 80j | 293750092 | Retaining Cable |
