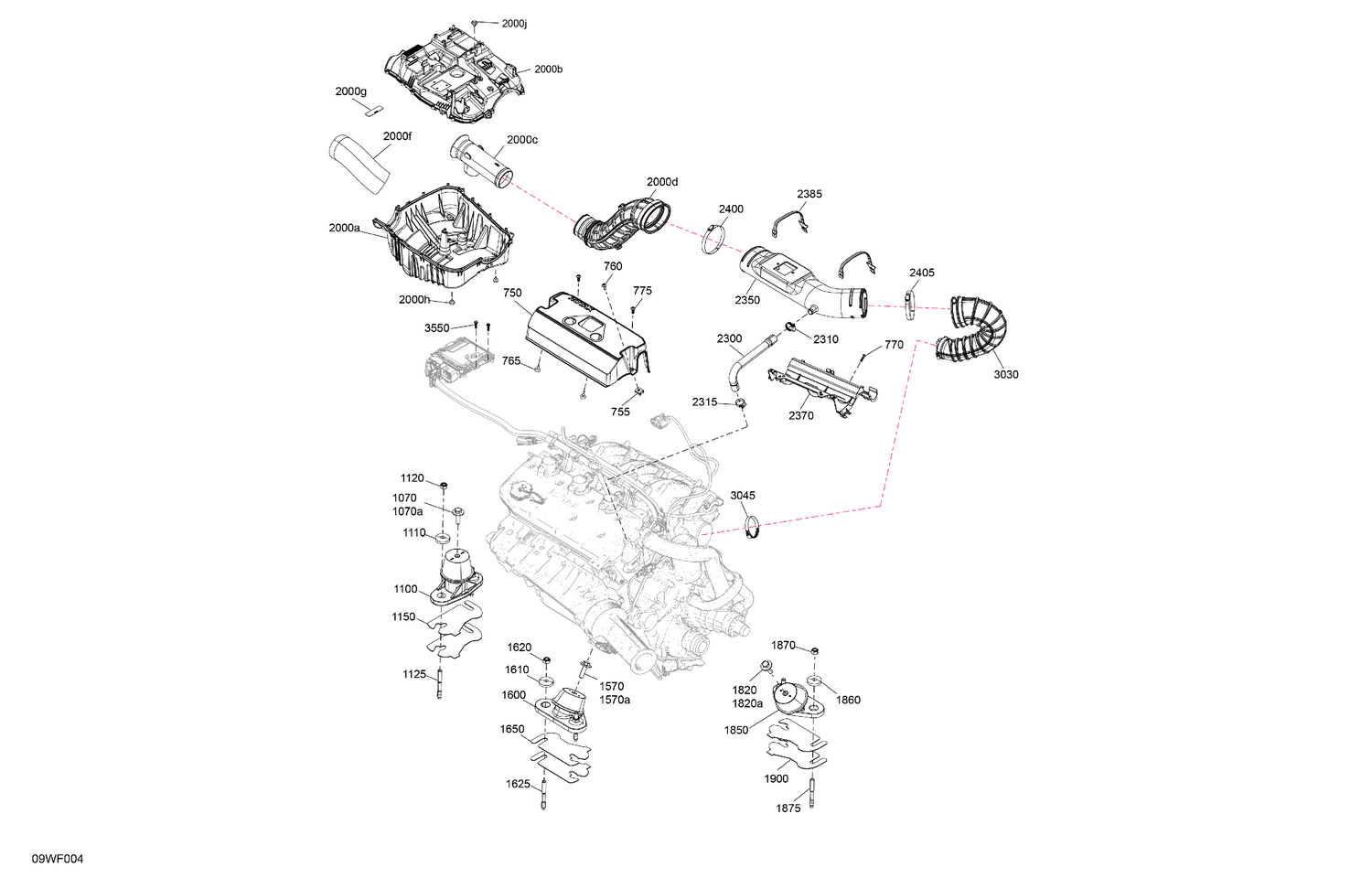

02- ENGINE - System
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 750 | 423465184 | Engine Cover |
| 755 | 420942108 | Panel Nut M6 X 1 |
| 760 | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 765 | 708003866 | Seat Stopper |
| 770 | 241152060 | Hex. Flange Screw K50 X 20 |
| 775 | 250001206 | Screw-Plastite Torx Hd.M6.81X20 |
| 1070a | 250000888 | Hexagonal Screw M8 X 30 |
| 1100 | 270001215 | Front Engine Support Ass'y |
| 1110 | 250200018 | Cone Washer |
| 1120 | 232581200 | Hex. Elastic Nut M8 Brass |
| 1125 | 250001156 | Stud M8X1.25X70.5 S.GRIP |
| 1150 | 270000762 | Shim 1.3 mm |
| 1570a | 250000888 | Hexagonal Screw M8 X 30 |
| 1600 | 270001211 | Lateral Engine Support Ass'y |
| 1610 | 250200018 | Cone Washer |
| 1620 | 232581200 | Hex. Elastic Nut M8 Brass |
| 1625 | 250001156 | Stud M8X1.25X70.5 S.GRIP |
| 1650 | 270000762 | Shim 1.3 mm |
| 1820a | 250000888 | Hexagonal Screw M8 X 30 |
| 1850 | 270001211 | Lateral Engine Support Ass'y |
| 1860 | 250200018 | Cone Washer |
| 1870 | 232581200 | Hex. Elastic Nut M8 Brass |
| 1875 | 250001156 | Stud M8X1.25X70.5 S.GRIP |
| 1900 | 270000762 | Shim 1.3 mm |
| 2000a | 273000446 | Lower Intake Silencer |
| 2000b | 273000447 | Upper Intake Silencer |
| 2000c | 273000445 | Intake Duct Silencer Int |
| 2000d | 273000474 | Molded Intake Silencer Duct Out |
| 2000f | 273000425 | Intake Duct Silencer In |
| 2000g | 219903177 | Air Silencer Notice Decal |
| 2000h | 708003866 | Seat Stopper |
| 2000j | 293730040 | Mount Dart |
| 2300 | 423465173 | Formed Hose |
| 2310 | 293650284 | Gear Clamp |
| 2315 | 293650285 | Clamp Gear |
| 2350 | 270001256 | Central Intake Duct |
| 2370 | 423465185 | Duct Support |
| 2385 | 423465186 | Retaining Strap |
| 2400 | 423462193 | Gear Clamp |
| 2405 | 293650202 | Gear Clamp This part replaces 293650281. |
| 3030 | 423465428 | Molded Throttle Body Hose IN |
| 3045 | 293650179 | Tridon Clamp |
