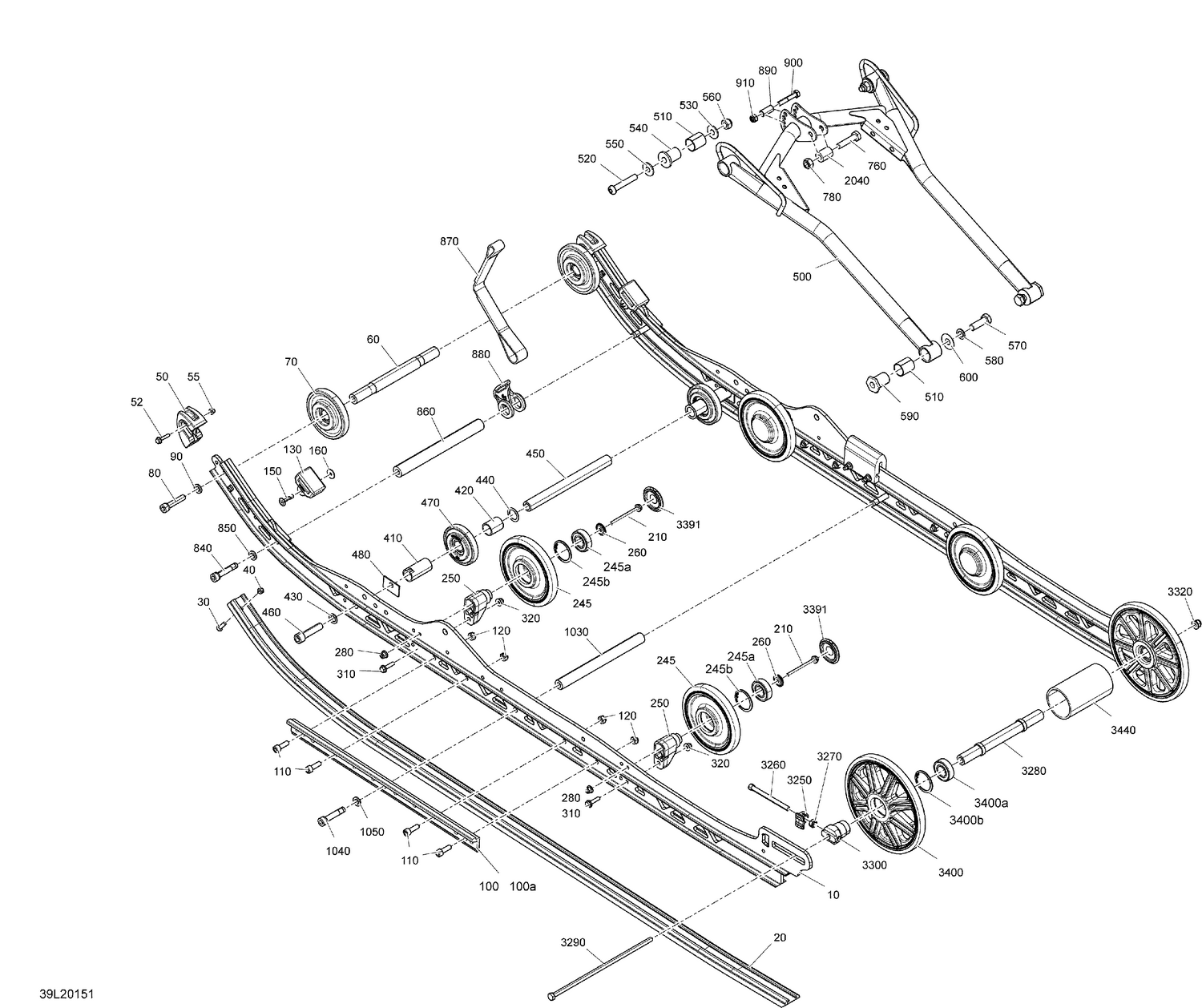

08- Suspension, Rear - Lower Section - RE 3900 - SKU SELM
Parts (68)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 503195365 | Sunburst Yellow, Runner |
| 20 | 503191501 | Slider Shoe 163 |
| 30 | 208562531 | Phillips Screw M6 X 25 |
| 40 | 232561434 | Elastic Stop Nut M6 |
| 50 | 503196874 | Rail Protector This part replaces 503194249. |
| 52 | 207652544 | Hex. Flange Screw M5 X 25 |
| 55 | 233251434 | Flanged Elastic Nut M5 |
| 60 | 503192842 | Front Wheel Shaft |
| 70 | 503194724 | Wheel 86 |
| 80 | 205505054 | Socket Screw |
| 90 | 503192496 | Washer |
| 100a | 503195397 | Rail Reinforcement |
| 110 | 205082554 | Socket HD Screw M8 x 25 |
| 120 | 232581414 | Hex. Elastic Stop Nut M8 |
| 130 | 503192106 | Rubber Stopper |
| 150 | 293150224 | Rivet Pop 3/16 |
| 160 | 503191273 | Washer |
| 210 | 207667056 | Hex. Flange Screw M6 x 70 |
| 245a | 503190396 | Ball Bearing |
| 245b | 415129371 | Retaining Ring |
| 250 | 503193894 | Casted Support |
| 260 | 503191820 | Wheel Cup M6 |
| 280 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 310 | 207662556 | Hex. Flange Screw M6 X 25 |
| 320 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 410 | 503194575 | Spacer |
| 420 | 503194576 | Spacer |
| 430 | 503192491 | Washer |
| 440 | 31013 | Shim Ring |
| 450 | 503195409 | Lower Shaft Shock |
| 460 | 205525554 | Socket Screw |
| 470 | 503194573 | Black, Wheel Ass'y 80 mm |
| 480 | 605449294 | Support Plate |
| 500 | 503193561 | Front Arm |
| 510 | 503191554 | Bushing |
| 520 | 503194947 | Screw-socket Bn.hd. M10 X 60 |
| 530 | 503191926 | Washer |
| 540 | 503194580 | Upper Axle Sleeve |
| 550 | 503191926 | Washer |
| 560 | 233601466 | Elastic Locking Nut M10 |
| 570 | 250000537 | Hex. Cap Screw M12 X 35 |
| 580 | 503192491 | Washer |
| 590 | 503194579 | Lower Axle Sleeve |
| 600 | 503190656 | Washer |
| 760 | 207004544 | Hex. Screw M10 X 45 |
| 780 | 232500416 | Elastic Stop Nut M10 |
| 840 | 205505054 | Socket Screw |
| 850 | 503192496 | Washer |
| 860 | 503195015 | Limiter Strap Shaft |
| 870 | 605355116 | Courroie De Limitation |
| 880 | 503194867 | Holder, Limiter Strap |
| 890 | 605455335 | Sleeve |
| 900 | 207084544 | Hex. Screw M8 X 45 |
| 910 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1030 | 5343471 | Eturemmin akseli |
| 1040 | 205505054 | Socket Screw |
| 1050 | 503192496 | Washer |
| 2040 | 5446652 | Bushing |
| 3250 | 503194266 | Tensioner |
| 3260 | 503194267 | Hex. Cap Screw M8 X 95 |
| 3270 | 232581414 | Hex. Elastic Stop Nut M8 |
| 3280 | 503194508 | Rear Wheell Axle |
| 3290 | 503194069 | Bolt M8 |
| 3300 | 503194747 | Tip |
| 3320 | 233281466 | Elastic Flang Nut M8 |
| 3391 | 503192771 | Black, Wheel Cap |
| 3400a | 503190396 | Ball Bearing |
| 3400b | 415129371 | Retaining Ring |
