| Ref | Part Number | Description |
|---|
| 1 |
0387353 |

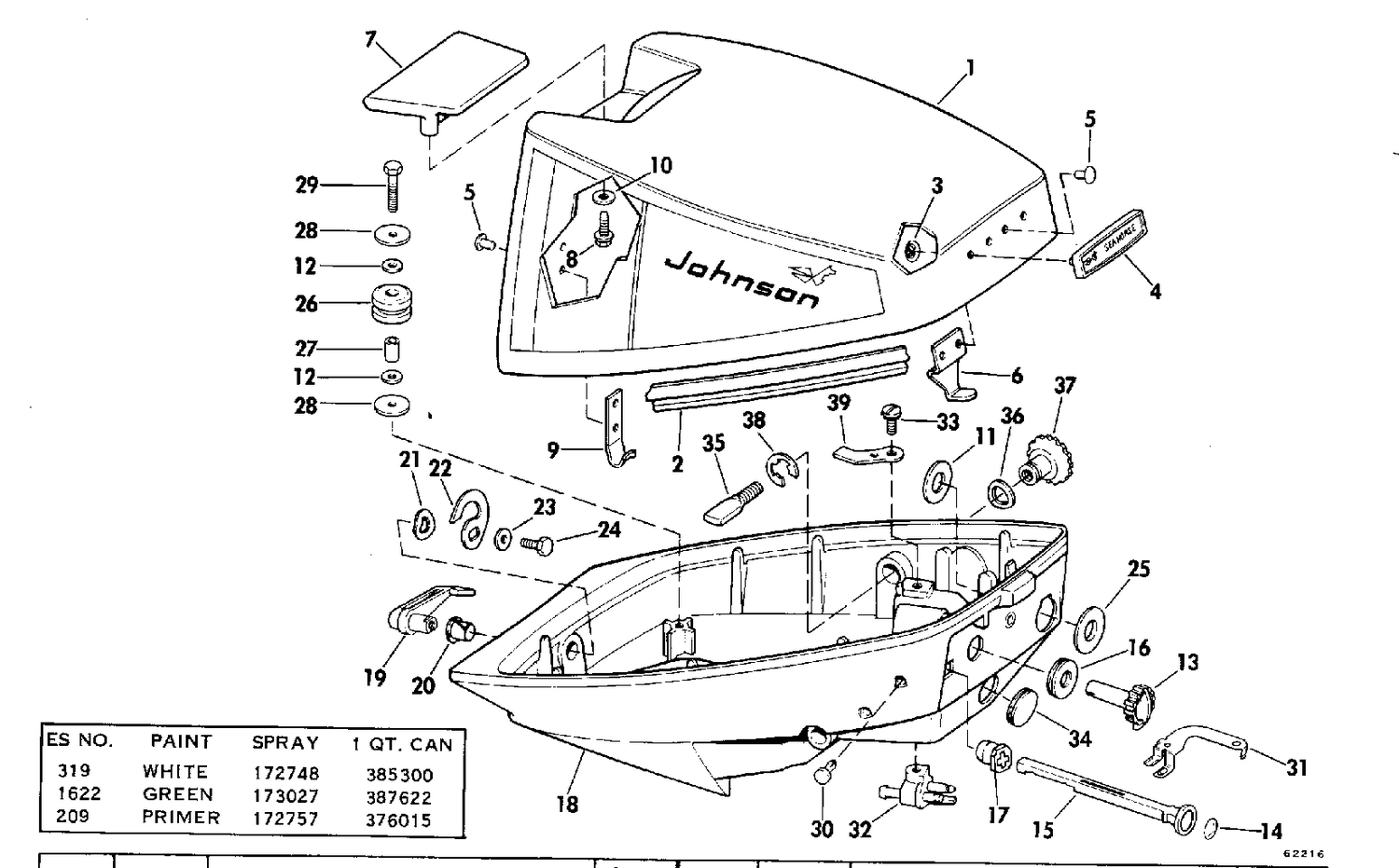

MOTOR COVER ASSEMBLY |
| 2 |
0331867 |
SEAL Engine cover This part replaces 0319077. |
| 4 |
0325763 |
APPLIQUE, Front This part replaces 0317087. |
| 6 |
0391123 |
HOOK, Front This part replaces 0318880. |
| 7 |
0381165 |
TILT HAND & SCREW ASSY |
| 8 |
0312299 |
VIS, serre-câble |
| 9 |
0391124 |
HOOK, Rear This part replaces 0318881. |
| 10 |
0306407 |
LOCCKWASHER,Cover latch |
| 11 |
0319057 |
WASHER, Shorting switch |
| 13 |
0319152 |
ADJUSTING KNOB, Slow speed |
| 14 |
0315521 |
INSERT |
| 15 |
0319291 |
CHOKE KNOB |
| 16 |
0319131 |
GROMMET, Knob |
| 17 |
0320731 |
BUSHING, Choke knob |
| 18 |
0388887 |
ENGINE COVER, Lower This part replaces 0387511. |
| 19 |
0328767 |
HANDLE LATCH This part replaces 0318948. |
| 20 |
0305581 |
BEARING, Thrust |
| 22 |
0319064 |
LATCH, Rear engine cover, lower |
| 24 |
0312241 |
SCREW, Trim/Tilt relay bracket |
| 25 |
0324066 |
BUSHING, Shorting switch This part replaces 0319063. |
| 26 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 27 |
0302406 |
SLEEVE |
| 29 |
0303398 |
VIS, support This part replaces 0302030. |
| 31 |
0336395 |
DETENT, Choke knob This part replaces 0319288. |
| 32 |
0393334 |
CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 33 |
0551706 |
SCREW |
| 35 |
0321996 |
SCREW, Idle adjustment This part replaces 0319061. |
| 36 |
0319058 |
SPRING WASHER, Idle adj |
| 37 |
0387272 |
KNOB & RETAINING RING, Idle adjustment |
| 38 |
0911316 |
RETAINING RING This part replaces 0313238. |
| 39 |
0320802 |
STOP, Idle adjustment |
| 0387522 |
0387522 |
DECAL SET |
