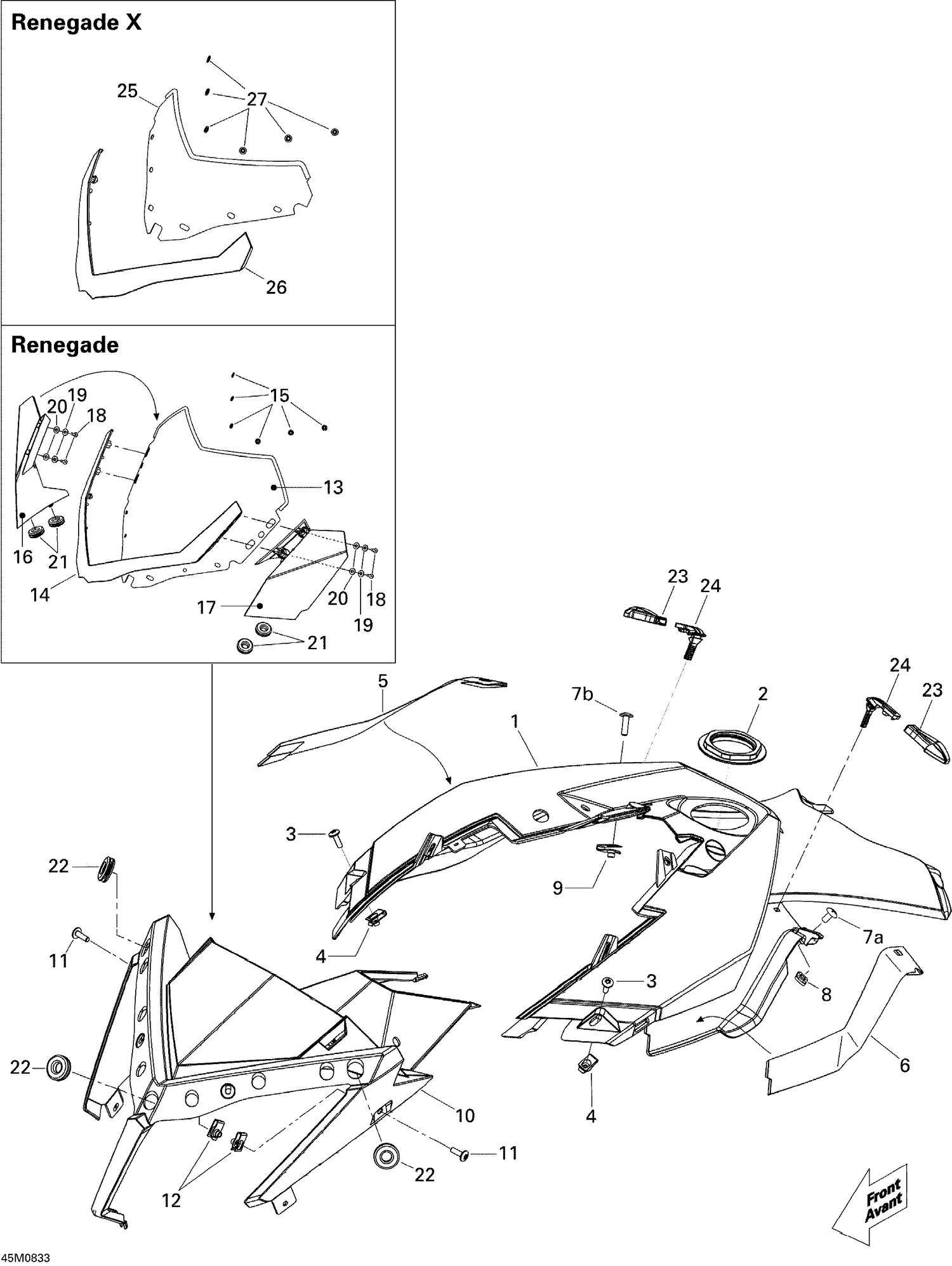

| Ref | Part Number | Description |
|---|
| 2 |
517302575 |
CONSOLE NUT - Call your local BRP dealership |
| 3 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 4 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 5 |
517304103 |
RH Decal |
| 6 |
517304104 |
LH Decal |
| 7a |
250000353 |
PHILLIPS SCREW M8 X 12 - Call your local BRP dealership |
| 7b |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 8 |
250100106 |
NUT-WELD THIN M6 - Call your local BRP dealership |
| 9 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 10 |
517304575 |
Gauge Support This part replaces 517303603. |
| 11 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 12 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 13 |
XXX |
Not Available As Spare Parts |
| 14 |
XXX |
Not Available As Spare Parts |
| 15 |
XXX |
Not Available As Spare Parts |
| 16 |
XXX |
Not Available As Spare Parts |
| 17 |
XXX |
Not Available As Spare Parts |
| 18 |
XXX |
Not Available As Spare Parts |
| 19 |
XXX |
Not Available As Spare Parts |
| 20 |
XXX |
Not Available As Spare Parts |
| 21 |
XXX |
Not Available As Spare Parts |
| 22 |
517303756 |
Grommet |
| 23 |
517303978 |
END PIECE, YELLOW - Call your local BRP dealership |
| 23 |
860200238 |
Embout Loquet *Latch This part replaces 517303980. |
| 24 |
517303981 |
Panel Latch |
