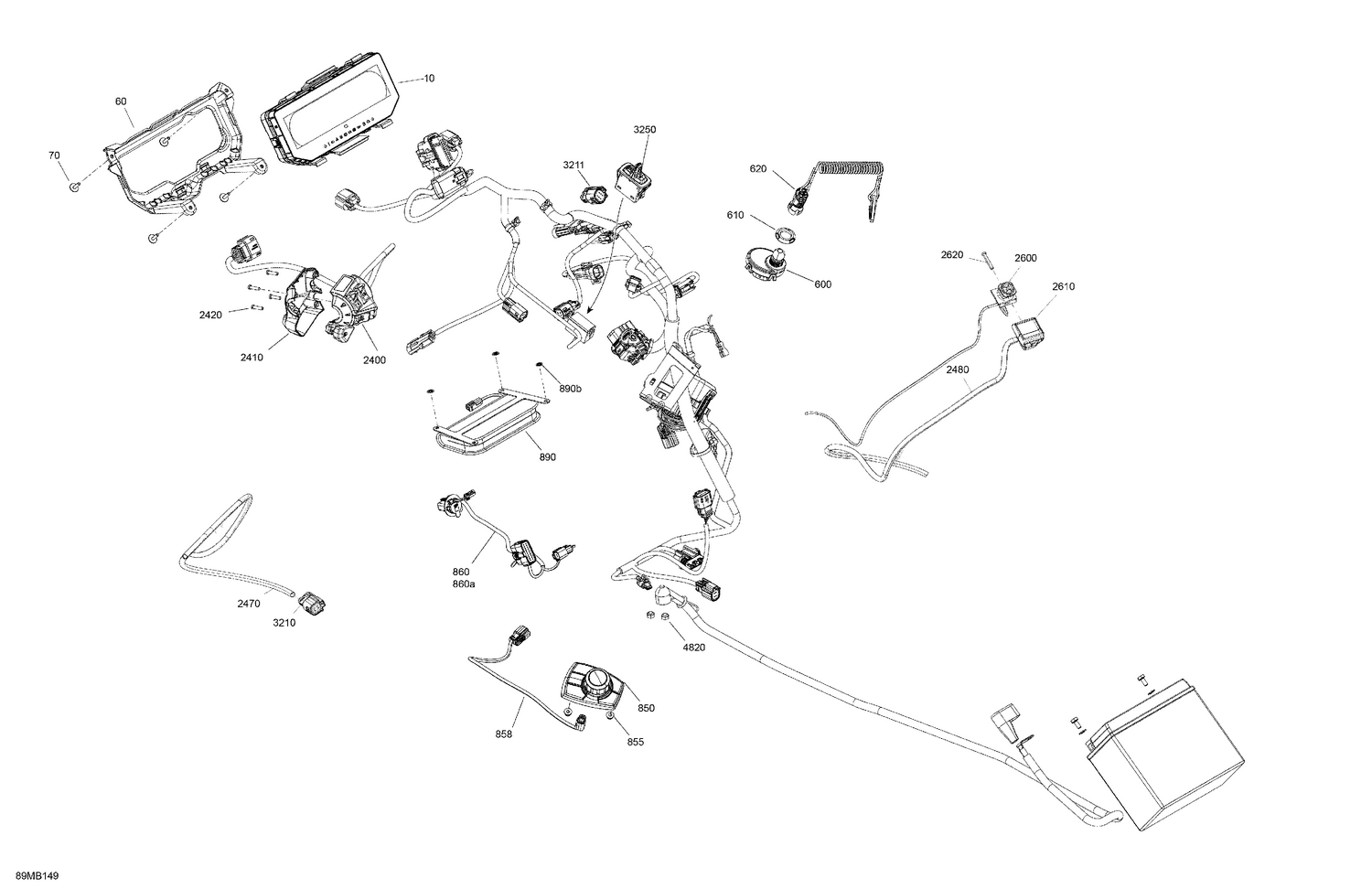

08- Electric - Upper Section - VIP Hi-End Gauge
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 515179262 | Full Size Color Multifunction Gauge This part replaces 515178228. |
| 60 | 515178965 | Gauge Support |
| 70 | 250000725 | Screw M4 X 16 |
| 600 | 710006855 | Ignition Switch |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 850 | 515178325 | Switch |
| 855 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 858 | 515178958 | Adaptor Wiring Harness |
| 860a | 710006405 | USB Connector |
| 890b | 732610072 | Push Nut |
| 2400 | 515178851 | LH Switch Housing |
| 2410 | 515177147 | Housing Plate |
| 2420 | 250000671 | Torx Screw |
| 2470 | 415130141 | Braided Sleeve |
| 2480 | 415130141 | Braided Sleeve |
| 2600 | 515177931 | Emergency Stop Switch |
| 2610 | 515177310 | Emergency Stop Switch Support |
| 2620 | 250000263 | Torx Screw #8-18 |
| 3210 | 515178177 | BLoc Femelle 4 Circuits |
| 3211 | 515178202 | Coil Connector |
| 3250 | 515178501 | Rocket Switch |
