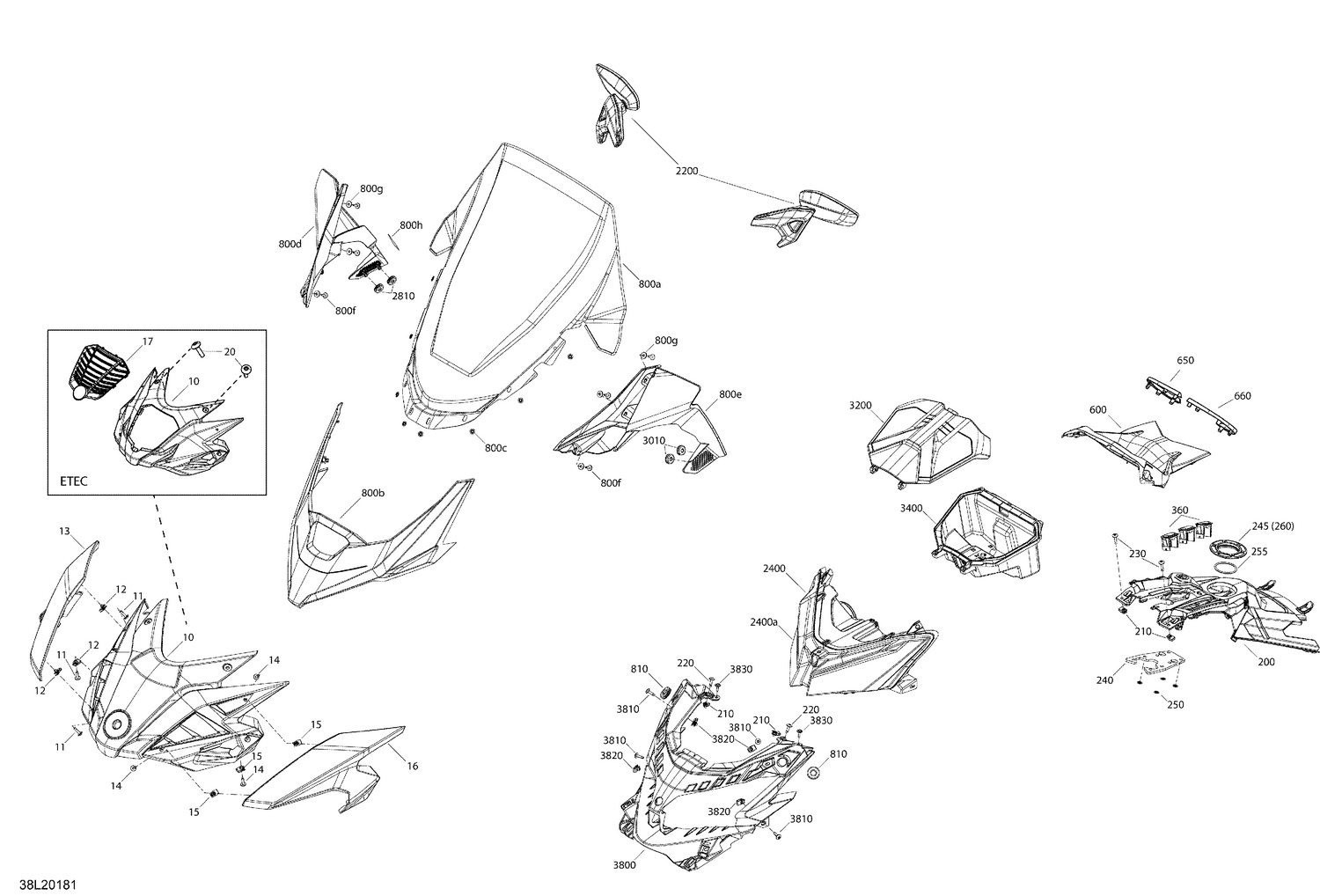

09- Body - Hood Section
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 517306115 | Middle Hood |
| 11 | 250000528 | Torx Screw M5 X 20 |
| 12 | 250000958 | Panel Nut M5 X 0.8 |
| 13 | 517306079 | RH Hood Front |
| 14 | 250000528 | Torx Screw M5 X 20 |
| 15 | 250000958 | Panel Nut M5 X 0.8 |
| 16 | 517306077 | LH Hood Front |
| 17 | XXX | Not Available As Spare Parts |
| 20 | 250000528 | Torx Screw M5 X 20 |
| 200 | 517306573 | Console Rear |
| 210 | 250000958 | Panel Nut M5 X 0.8 |
| 220 | 250000528 | Torx Screw M5 X 20 |
| 230 | 250000587 | Torx Screw M5 X 26 |
| 240 | 517306398 | Foam Console |
| 245 | 517306602 | Console Nut |
| 250 | 732610072 | Push Nut |
| 255 | 706002839 | O-Ring |
| 260 | 517309451 | Joint This part replaces 517307197. |
| 360 | 517306808 | Switch Hole Cap |
| 600 | 517307676 | Gauge Support This part replaces 517306765. |
| 650 | XXX | Not Available As Spare Parts |
| 660 | XXX | Not Available As Spare Parts |
| 800b | 517306183 | Deep Black, Windshield Support |
| 800c | 732610072 | Push Nut |
| 800d | 517306895 | RH Upper Air Deflector |
| 800e | 517306894 | LH Upper Air Deflector |
| 800f | 250000889 | Screw M4 X 16 |
| 800g | 250200024 | Rubber Washer 5 mm |
| 800h | 516009931 | Tow Warning Decal |
| 810 | 517303756 | Grommet |
| 2200 | XXX | Not Available As Spare Parts |
| 2400a | 415130081 | Bulb |
| 3200 | 517307562 | Cover Ass'y This part replaces 517305871. |
| 3400 | 517306058 | Trunk Ass'y |
| 3800 | 517306824 | Black, Head Lamp Bezel |
| 3810 | 250000528 | Torx Screw M5 X 20 |
| 3820 | 250000958 | Panel Nut M5 X 0.8 |
