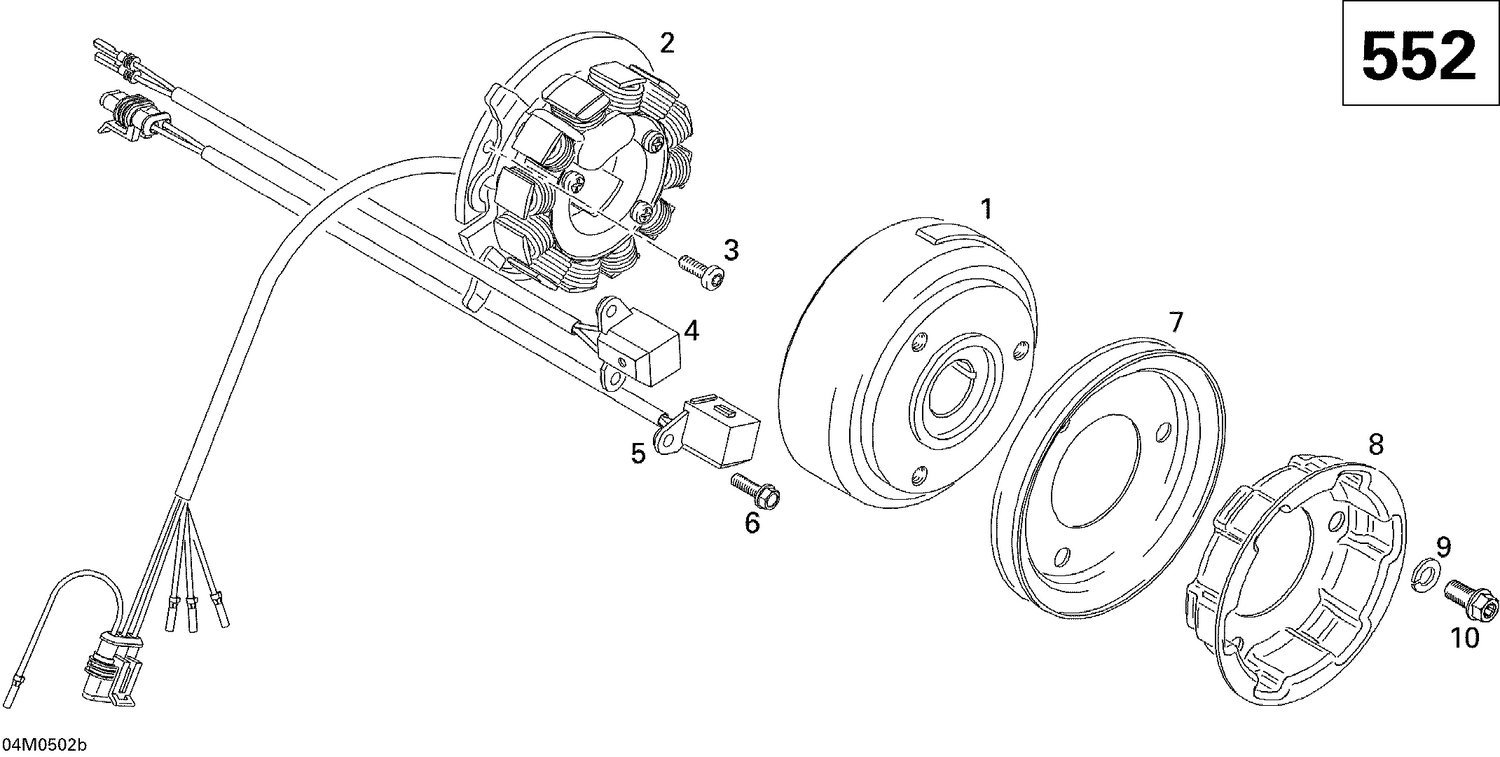

03- Magneto 552
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420889376 | Flywheel |
| 2 | 420889369 | Stator Plate A This part replaces 420889366. |
| 3 | 420641521 | Screw |
| 4 | 420665160 | PICK-UP - Call your local BRP dealership |
| 5 | 420665163 | Pick-Up This part replaces 420665162. |
| 6 | 420941928 | Taptite Screw M5 X 16 This part replaces 420941925. |
| 7 | 420980486 | V-Belt Pulley |
| 8 | 420852414 | Rope Sheave |
| 9 | 420845311 | Lock Washer |
