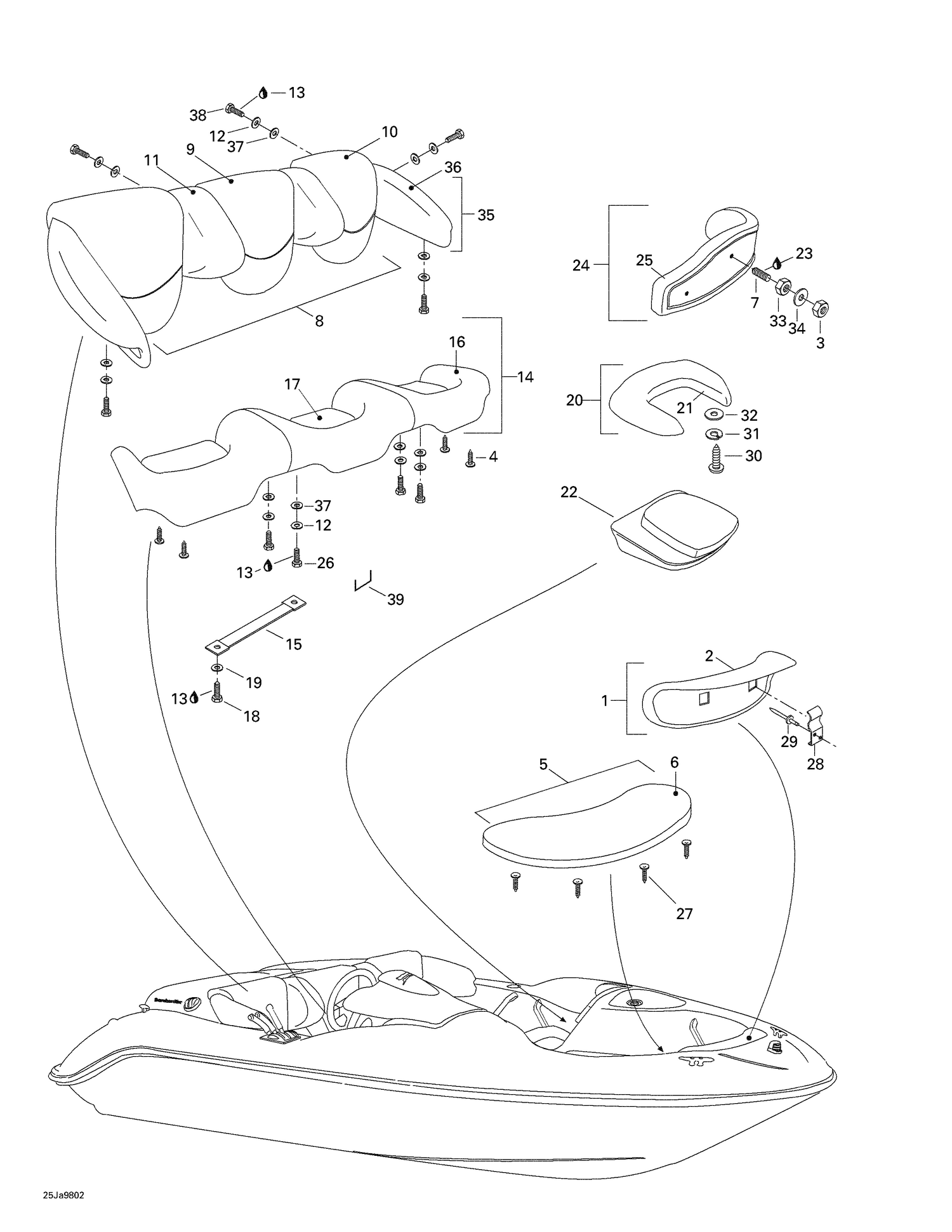

| Ref | Part Number | Description |
|---|
| 2 |
204610232 |
Front Backrest Cover |
| 3 |
232551600 |
Hex. Elastic Nut M5 This part replaces 212000004. |
| 4 |
293730014 |
Black Dart |
| 6 |
204610321 |
Front Seat Cover |
| 7 |
216553060 |
Set Screw M5 x 30 |
| 9 |
204610309 |
Backrest Cover (Center) |
| 10 |
204610331 |
Backrest Cover R.H |
| 11 |
204610234 |
Backrest Cover (Emerald Green) |
| 12 |
234062600 |
Flat Washer M6, Stainless This part replaces 213200007. |
| 13 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 15 |
204610285 |
Strap (Emerald Green) |
| 16 |
204610237 |
Rear Seat Cover (Emerald Green) |
| 17 |
204610307 |
Rear Seat Pillow Cover |
| 18 |
207161660 |
Hex. Screw M6 X 16 This part replaces 215061660. |
| 19 |
234062600 |
Flat Washer M6, Stainless This part replaces 213200007. |
| 21 |
204610239 |
Keeper Seat Ring Cover |
| 22 |
204610292 |
Keeper Seat Ass'y |
| 23 |
293800005 |
Loctite 271, 10 ml |
| 25 |
204610232 |
Front Backrest Cover |
| 26 |
207164560 |
Hex. Screw M6 X 45 This part replaces 215064560. |
| 27 |
293730006 |
Black, Dart |
| 28 |
269000388 |
SEAT SUPPORT - Call your local BRP dealership |
| 29 |
293150043 |
Pop Rivet 3/16" |
| 30 |
216663860 |
Self Tapping Screw |
| 31 |
234161601 |
Lock Washer Helical M6 This part replaces 217361500. |
| 32 |
234061600 |
Stainless Flat Washer M6 This part replaces 213200001. |
| 33 |
232051600 |
Hex. Nut M5 This part replaces 218051600. |
| 34 |
234052600 |
Flat Washer 5 mm, Stainless This part replaces 213200015. |
| 36 |
204610332 |
LH Armrest Cover |
| 37 |
234082600 |
Flat Washer 8 mm, Stainless This part replaces 213200011. |
| 38 |
207163060 |
Hex. Screw M6 X 30 This part replaces 210000015. |
| 204610295 |
RH |
Armrest Ass'y 204610295 |
| 204610333 |
RH |
Armrest Cover 204610333 |
