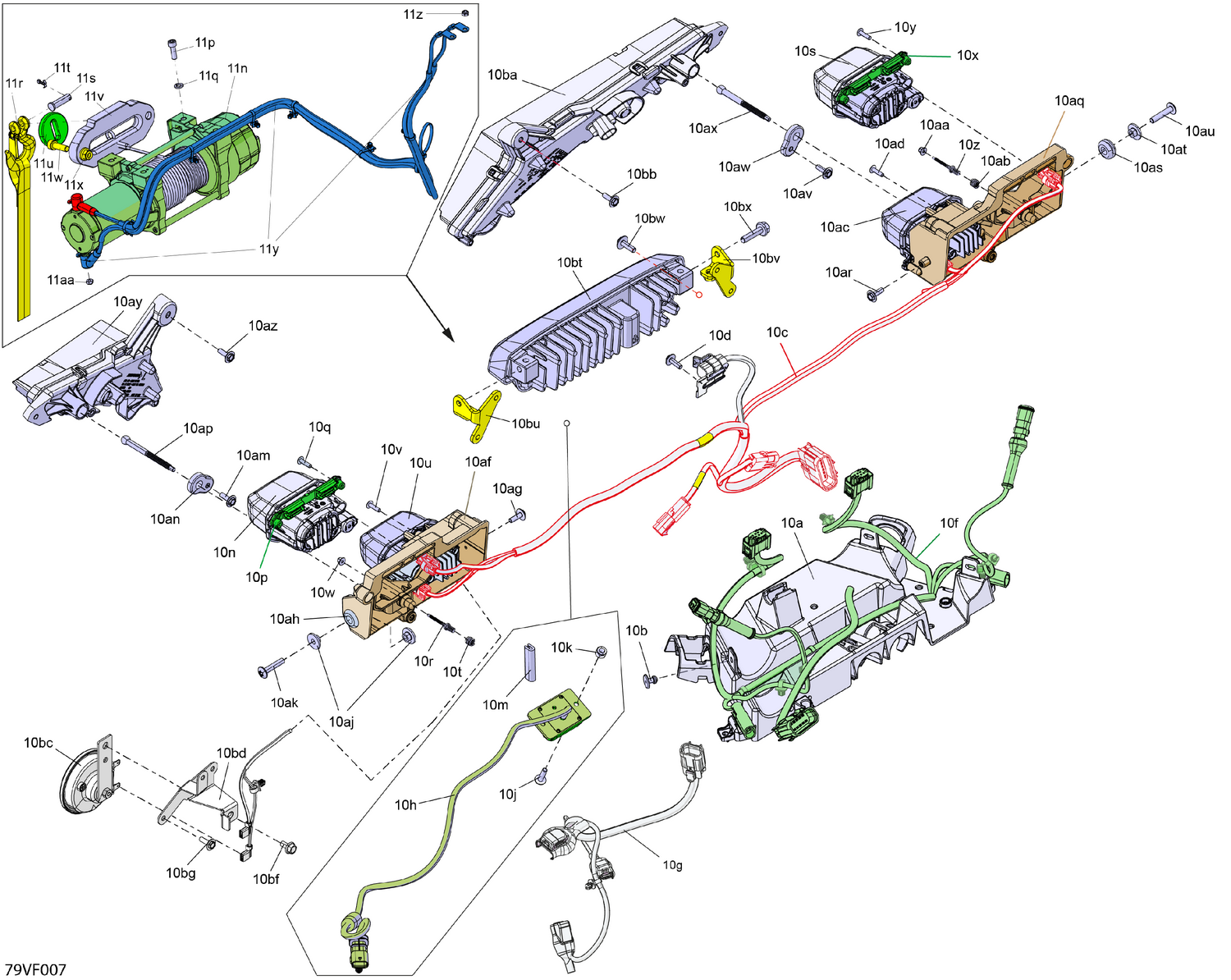

08- Electric - Front Section
Parts (66)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 710011284 | Multi Purpose Support |
| 10aa | 517309134 | Specialized Nut |
| 10ab | 517309058 | Compression Spring |
| 10ac | 710006910 | HIgh Beam Light |
| 10ad | 250000759 | Torx Truss Pt K40 X 16 |
| 10af | 708500155 | LH Front Headlight Support |
| 10ag | 250000959 | Screw PT Type K-50 X 16 |
| 10ah | 293720130 | Overmolded Grommet |
| 10aj | 710004749 | Shoulder Bushing |
| 10ak | 250000842 | Stainless, Torx Screw M6 X 30 |
| 10am | 250000959 | Screw PT Type K-50 X 16 |
| 10an | 293900157 | Ball Socket |
| 10ap | 710005837 | Ajustment Screw |
| 10aq | 708500156 | RH Front Headlight Support |
| 10ar | 250000959 | Screw PT Type K-50 X 16 |
| 10as | 293720130 | Overmolded Grommet |
| 10at | 710004749 | Shoulder Bushing |
| 10au | 250000842 | Stainless, Torx Screw M6 X 30 |
| 10av | 250000959 | Screw PT Type K-50 X 16 |
| 10aw | 293900157 | Ball Socket |
| 10ax | 710005837 | Ajustment Screw |
| 10ay | 710008305 | LH Auxiliary LED Light |
| 10az | 250000959 | Screw PT Type K-50 X 16 |
| 10b | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 10ba | 710008306 | RH Auxiliary LED Light |
| 10bb | 250000959 | Screw PT Type K-50 X 16 |
| 10bc | 710004791 | Horn |
| 10bd | 710008130 | Front Horn Support |
| 10bf | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 10bg | 250000959 | Screw PT Type K-50 X 16 |
| 10bt | 710007904 | Central Auxiliary LIght |
| 10bu | 710009933 | Light Support |
| 10bv | 710009934 | Light Support |
| 10bw | 250000959 | Screw PT Type K-50 X 16 |
| 10bx | 250000841 | Hex Flange Screw M6 X 25 |
| 10c | 710008962 | Headlight Wiring Harness |
| 10d | 250000959 | Screw PT Type K-50 X 16 |
| 10f | 710009627 | Junction Wiring Harness |
| 10g | 710007357 | Differential Wiring Harness |
| 10h | 710007892 | Camera |
| 10j | 250000797 | Torx Head Screw M4 X 16 |
| 10k | 232541484 | Elastic Stop Nut M4 |
| 10n | 710008088 | Low Beam Light |
| 10p | 517309049 | Support Pivot |
| 10q | 250000759 | Torx Truss Pt K40 X 16 |
| 10r | 517309133 | Threaded Rod |
| 10s | 517309134 | Specialized Nut |
| 10t | 517309058 | Compression Spring |
| 10u | 710006910 | HIgh Beam Light |
| 10v | 250000759 | Torx Truss Pt K40 X 16 |
| 10w | 710008088 | Low Beam Light |
| 10x | 517309049 | Support Pivot |
| 10y | 250000759 | Torx Truss Pt K40 X 16 |
| 10z | 517309133 | Threaded Rod |
| 11n | 710011630 | Electric Winch |
| 11p | 205082544 | Socket Head Screw M8 X 25 |
| 11q | 234181401 | Lock Washer 8 mm |
| 11r | 705014949 | Winch Hook Kit |
| 11s | 705014949 | Winch Hook Kit |
| 11t | 705014949 | Winch Hook Kit |
| 11u | 710007028 | Stopper |
| 11v | 715006426 | Winch Rope Guide Kit |
| 11w | 205003044 | Socket Screw M10 x 30 |
| 11x | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 11y | 710007671 | Winch Wiring Harness |
| 11z | 232561200 | Brass Elastic Stop Nut M6 |
