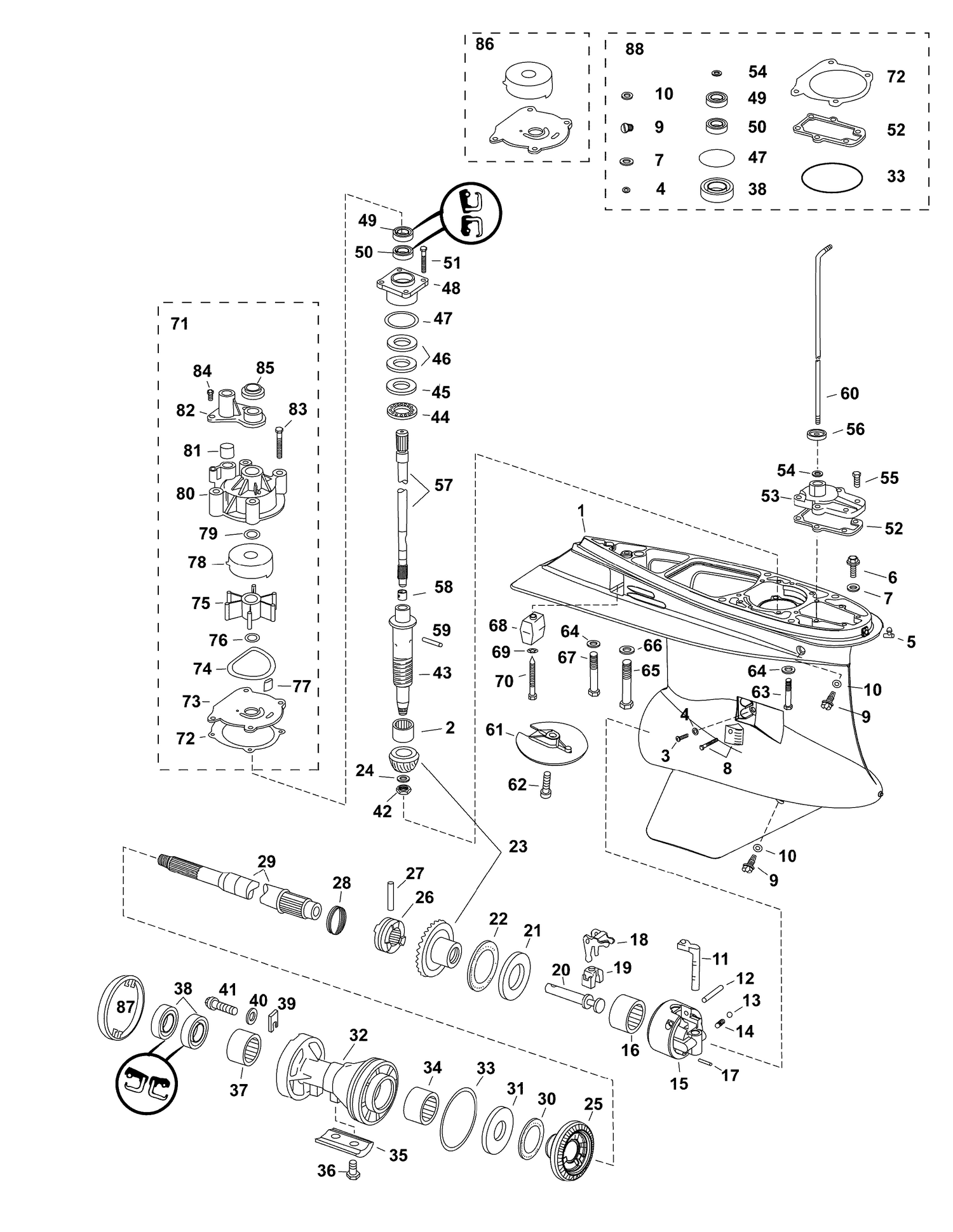

07-1_GEARCASE, L2-Type
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 61 | 0336284 | COVER, Trim tab opening |
| 62 | 0313715 | SCREW, Cap, hex hd, 7/16-14 x 1 |
| 63 | 0331999 | SCREW, Gearcase housing |
| 65 | 0331998 | SCREW, Gearcase to housing |
| 67 | 0330263 | SCREW, Mounting, 3/8 in. X 3.50 in. |
| 71 | 5001595 | Water Pump Repair Kit |
| 74 | 0331353 | Seal, Impeller Housing Plate. |
| 79 | 0331188 | O-Ring |
