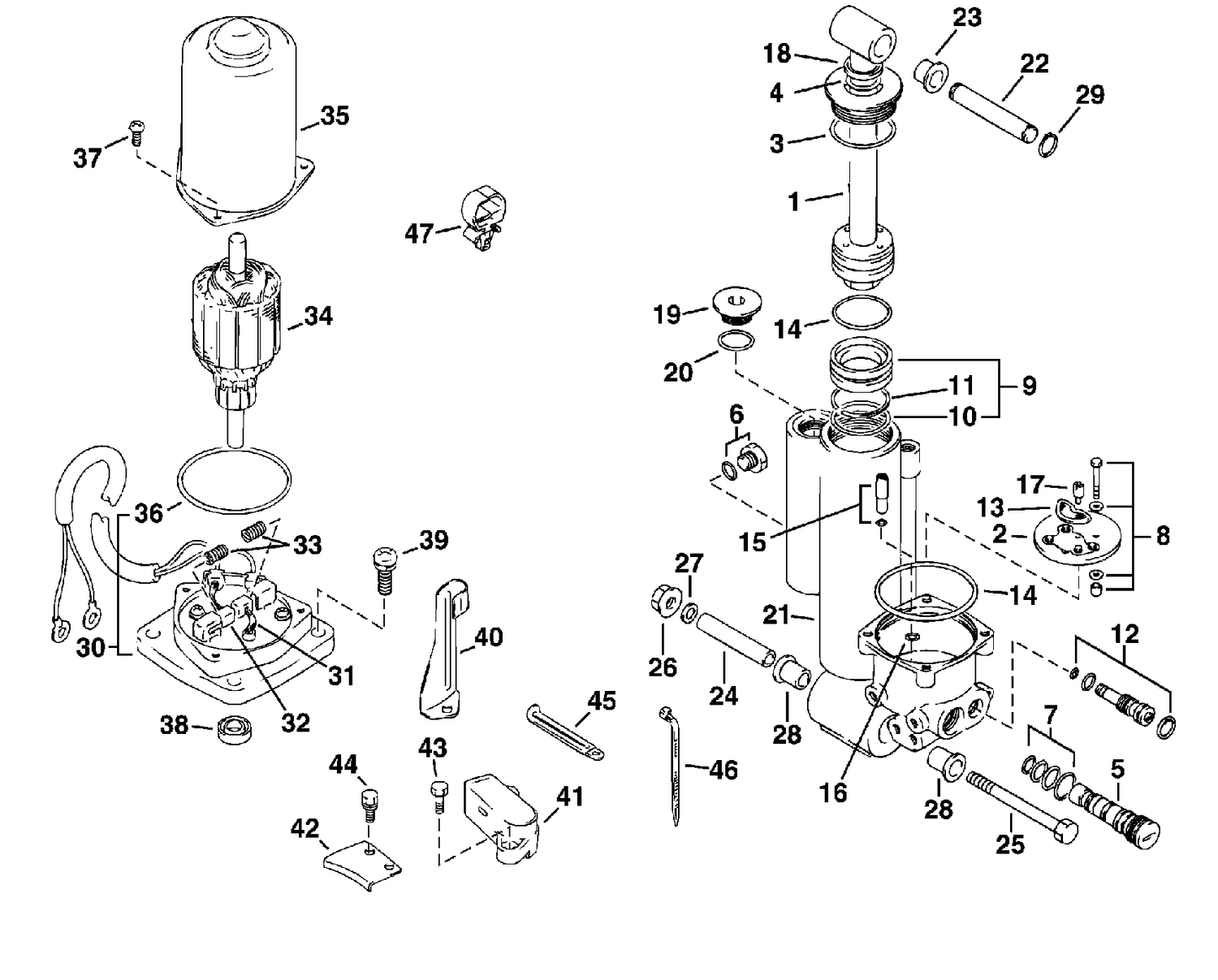

| Ref | Part Number | Description |
|---|
| 1 |
5031516 |
PISTON ASSY |
| 3 |
5031517 |
O-RING |
| 4 |
5031675 |
O-RING |
| 5 |
5031509 |
VALVE SET, Main check |
| 6 |
5031514 |
PLUG, Reservoir |
| 7 |
5031510 |
O-RING KIT, Main check |
| 9 |
5031519 |
PISTON, Free |
| 12 |
5031512 |
VALVE SET, Manual |
| 15 |
5031520 |
VALVE, Down pressure |
| 16 |
5031513 |
O-RING SET, Manual valve |
| 18 |
5031677 |
SEAL |
| 19 |
5031678 |
PLUG, Reservoir |
| 20 |
5031679 |
O-RING |
| 21 |
5031518 |
MANIFOLD |
| 22 |
5031505 |
SHAFT, Tilt cylinder, upper |
| 23 |
5031506 |
BUSHING, Tilt cylinder, upper |
| 24 |
5031504 |
SHAFT, Tilt cylinder, lower |
| 25 |
5031207 |
BOLT, Shaft |
| 26 |
*5030054 |
NUT |
| 27 |
5030057 |
WASHER |
| 28 |
5031271 |
BUSHING |
| 29 |
5031276 |
E RING |
| 39 |
5031521 |
SCREW, Motor |
| 40 |
5031687 |
HOLDER, Cable |
| 41 |
5036054 |
SENDER ASSY, TRIM This part replaces 5031474. |
| 42 |
5031475 |
BRACKET |
| 43 |
5031117 |
BOLT |
| 44 |
5031688 |
BOLT, Bracket |
| 45 |
5030135 |
BRIDE |
| 5031482 |
MOTOR |
ASSY. 5031482 |
