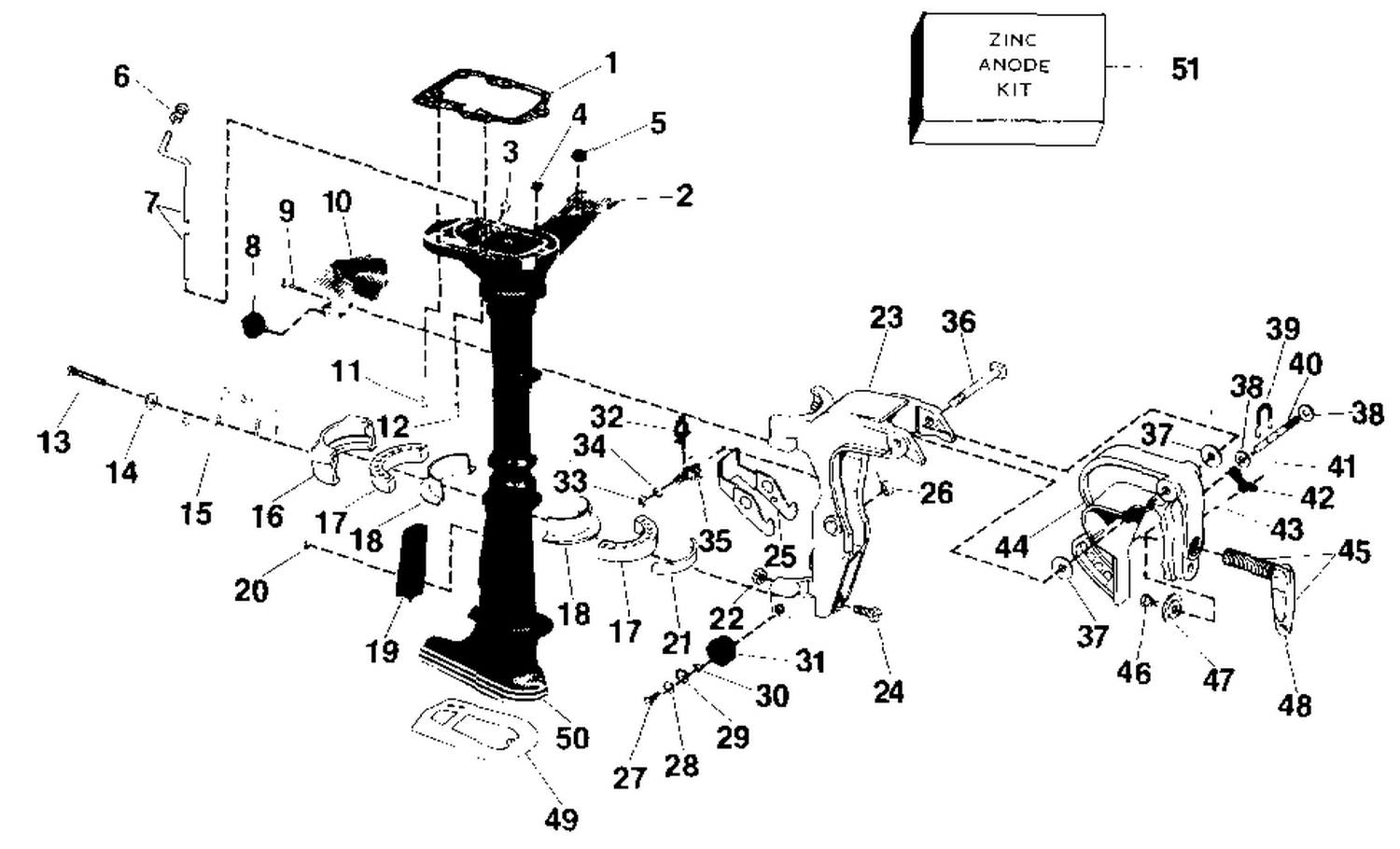

| Ref | Part Number | Description |
|---|
| 1 |
0327169 |
GASKET, Cyl. & c'case to exh. hsg. |
| 2 |
0396928 |
EXHAUST HOUSING & PLUG ASSY. |
| 3 |
0317516 |
PLUG |
| 4 |
0332564 |
GROMMET, Shorting switch leads to exhaust housing |
| 5 |
0332532 |
GROMMET, Short sw. leads to tiller arm |
| 6 |
0317462 |
GROMMET, Water tube |
| 7 |
0332076 |
TUBE, Water |
| 8 |
0331969 |
MOUNT, Upper |
| 9 |
0303398 |
VIS, support |
| 10 |
0398841 |
RETAINER ASSY., Pivot brg., upper This part replaces 0397258. |
| 13 |
0324814 |
ECREW,Exhaust cover,1-1/2"long |
| 14 |
0329241 |
RONDELLE |
| 15 |
0333796 |
BRACKET, Fuel tank retainer |
| 16 |
0314044 |
RETAINER, Pivot bearing |
| 17 |
0334759 |
VIBRATION DAMPENER, Pivot bearing, upper & lower This part replaces 0314046. |
| 18 |
0314042 |
BEARING, Pivot, upper & lower |
| 19 |
0333125 |
MUFFLER, Exh. hsg. relief |
| 21 |
0314047 |
BRAKE, Friction |
| 22 |
0332223 |
NUT, Screw, friction adj. |
| 23 |
0332392 |
SWIVEL BRACKET |
| 24 |
0314048 |
SCREW, Adj. friction brake |
| 25 |
0313952 |
LEVER, Reverse lock |
| 26 |
0314049 |
SPRING, Reverse lock |
| 27 |
0329894 |
SCREW |
| 30 |
0325085 |
SLEEVE, Mount engine cover |
| 31 |
0331972 |
MOUNT, Lower |
| 32 |
0332955 |
CLAMP, Hose, fuel tank to conn. |
| 33 |
0332223 |
NUT, Screw, friction adj. |
| 35 |
0332956 |
SUPPORT, Hose clamp |
| 36 |
0332228 |
TILTING BOLT |
| 37 |
0314041 |
WASHER |
| 38 |
0308090 |
WASHER, Tilt angle adj. rod |
| 39 |
0314043 |
SPRING, Tilt handle adj. rod |
| 40 |
0333515 |
ROD, Tilt |
| 41 |
0332958 |
SCREW, Tilt lock |
| 42 |
0332957 |
LEVER, Tilt lock |
| 43 |
0333038 |
SPRING, Tilt lock return |
| 44 |
0398325 |
STERN BRACKET & CLAMP SCREW ASSY. This part replaces 0398030. |
| 45 |
0391421 |
CLAMP SCREW & HANDLE |
| 45 |
0433675 |
CLAMP SCR. & HAND. ASSY. This part replaces 0388347. |
| 49 |
0331965 |
PLATE, Exh. hsg. to gearcase |
| 50 |
0210831 |
DECAL, Exh. hsg., Ev. |
| 50 |
0333131 |
DECAL, Exh. hsg., Jo. |
| 51 |
0173029 |
ANODE |
| 0123009 |
0173029 |
ANODE This part replaces 0123009. |
