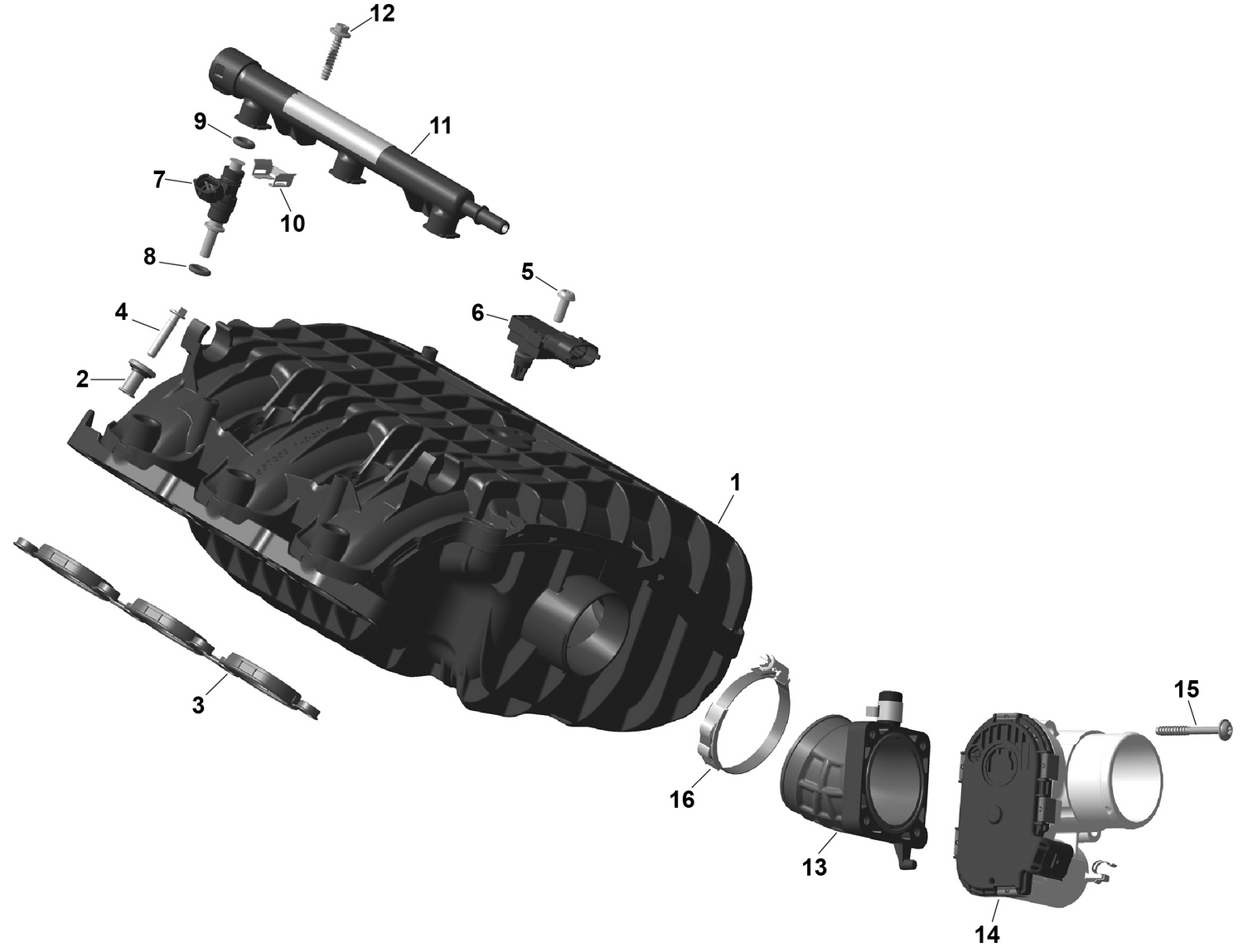

01- ROTAX - Air Intake Manifold And Throttle Body
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420629175 | Distance Sleeve |
| 4 | 420440647 | Torx Flange Screw M6 X 30 |
| 5 | 420641588 | Torx Flange Screw M6 X 16 |
| 6 | 420874658 | Pressure And Temperature Sensor |
| 8 | 420831050 | O-Ring |
| 9 | 420430775 | O-Ring |
| 10 | 420853030 | Injector Clip |
| 11 | 420874968 | Fuel Rail |
| 12 | 420441575 | Torx Screw 6X30 |
| 13 | 420867118 | Connecting Socket Ass'y |
| 14 | 420889030 | Throttle Body |
| 15 | 420441588 | Torx Flange Screw M6 X 50 |
