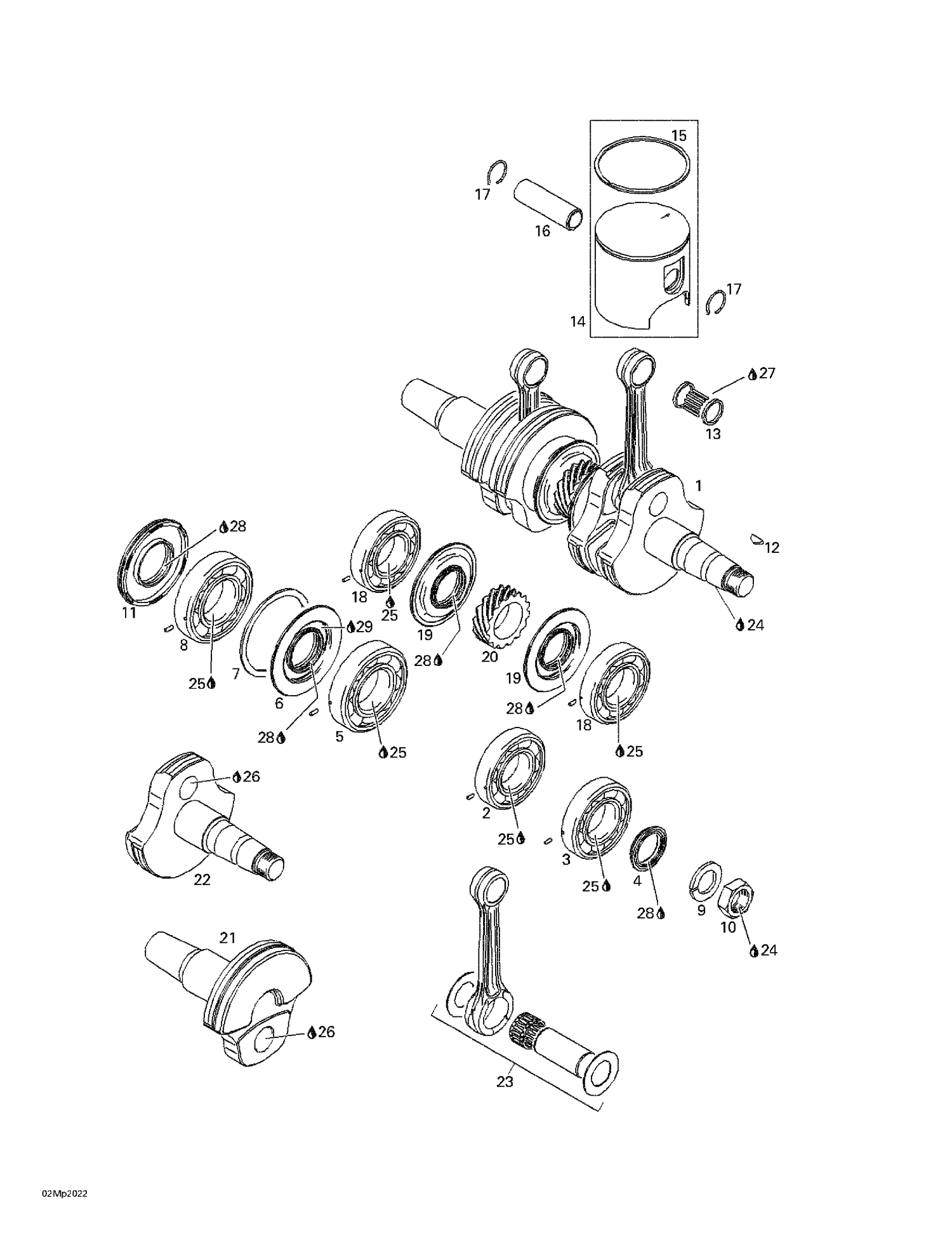

| Ref | Part Number | Description |
|---|
| 1 |
420888401 |
Crankshaft Ass'y |
| 2 |
420832673 |
Ball Bearing Sealed, 6207 This part replaces 420832635. |
| 3 |
420832575 |
Ball Bearing 6207 This part replaces 420832576. |
| 4 |
420931795 |
Oil Seal This part replaces 420931790. |
| 5 |
420832601 |
Bearing_Ball - Call your local BRP dealership |
| 6 |
420931910 |
Oil Seal |
| 7 |
420926190 |
Washer |
| 8 |
420832601 |
Bearing_Ball - Call your local BRP dealership |
| 9 |
420945759 |
Lock Washer, 22 mm |
| 10 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 11 |
420931284 |
Oil Seal This part replaces 420931285. |
| 12 |
420246015 |
Woodruff Key |
| 13 |
420832445 |
Needle Bearing This part replaces 420832425. |
| 14 |
420889457 |
Piston 81 This part replaces 420888431. |
| 15 |
420815360 |
SEMI-TRAPEZ RING - Call your local BRP dealership This part replaces 420815215. |
| 16 |
420916371 |
GUDGEON PIN - Call your local BRP dealership This part replaces 420916370. |
| 17 |
420845106 |
Piston Circlip |
| 18 |
420832575 |
Ball Bearing 6207 This part replaces 420832576. |
| 19 |
290931455 |
Oil Seal |
| 20 |
420834355 |
CENTRAL GEAR - Call your local BRP dealership |
| 21 |
420819030 |
CRANKSHAFT (PTO) - Call your local BRP dealership |
| 22 |
420819060 |
Crankshaft (MAG side) |
| 23 |
420888403 |
Rod Repair Kit (MAG side) |
| 24 |
293800060 |
Loctite 243, 10 ml |
| 25 |
293800023 |
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership |
| 26 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 27 |
779119 |
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900. |
| 28 |
420899271 |
Petamo Grease, GHY133N, 400 g |
| 420888404 |
Rod |
Repair Kit (PTO side) 420888404 |
