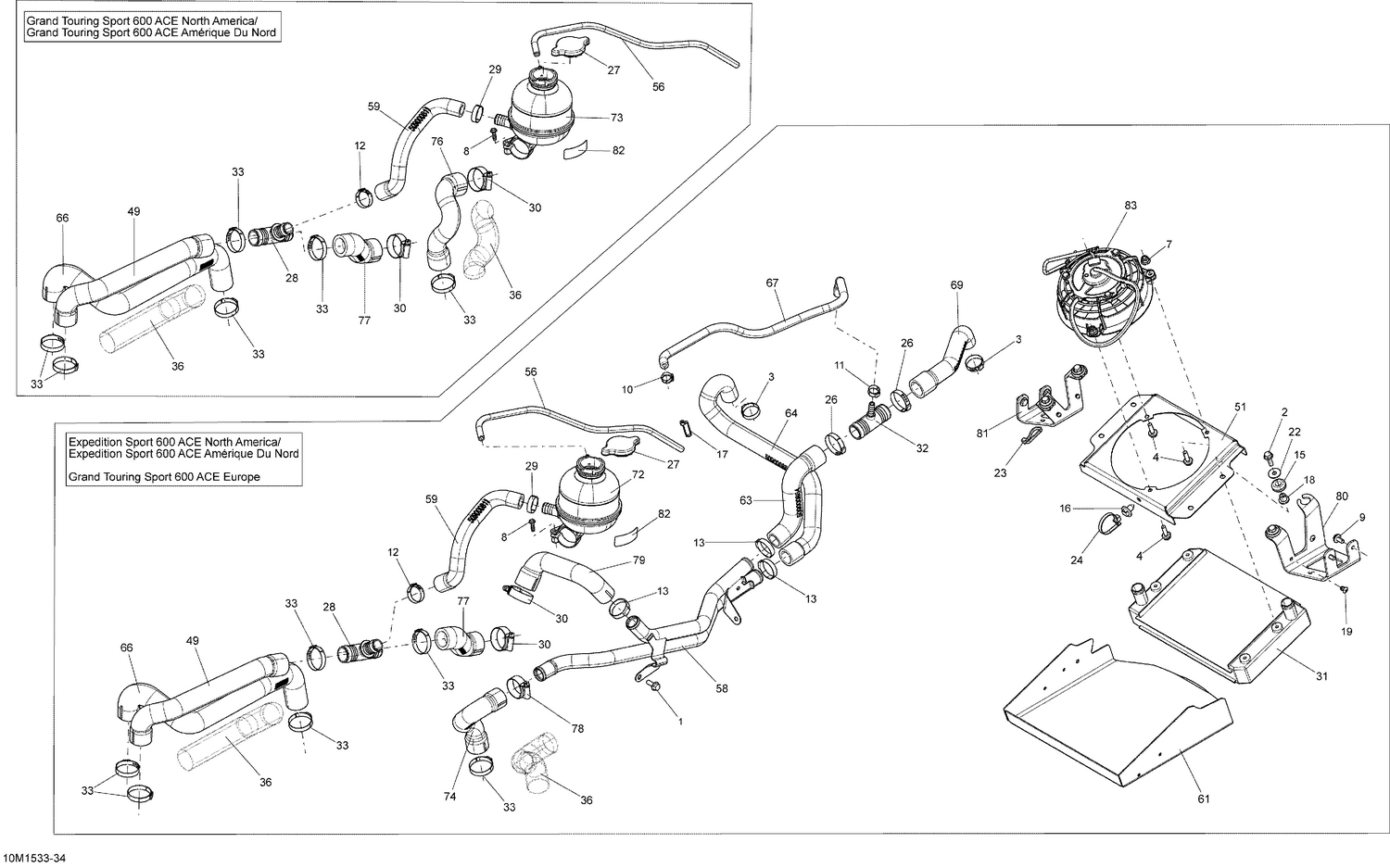

01- Cooling System _10M1533
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 8 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 12 | 293650099 | Crimp Clamp |
| 27 | 509000180 | Radiator Pressure Cap |
| 28 | 509000372 | T-Fitting |
| 29 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 30 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 33 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 36 | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 49 | 509001062 | Radiator Return Hose This part replaces 509000697. |
| 56 | 509000775 | Hose |
| 59 | 509001063 | Filling Hose This part replaces 509000811. |
| 66 | 509000859 | Radiator Hose |
| 77 | 509000921 | Radiator Hose |
| 82 | 516005904 | Warning Decal |
