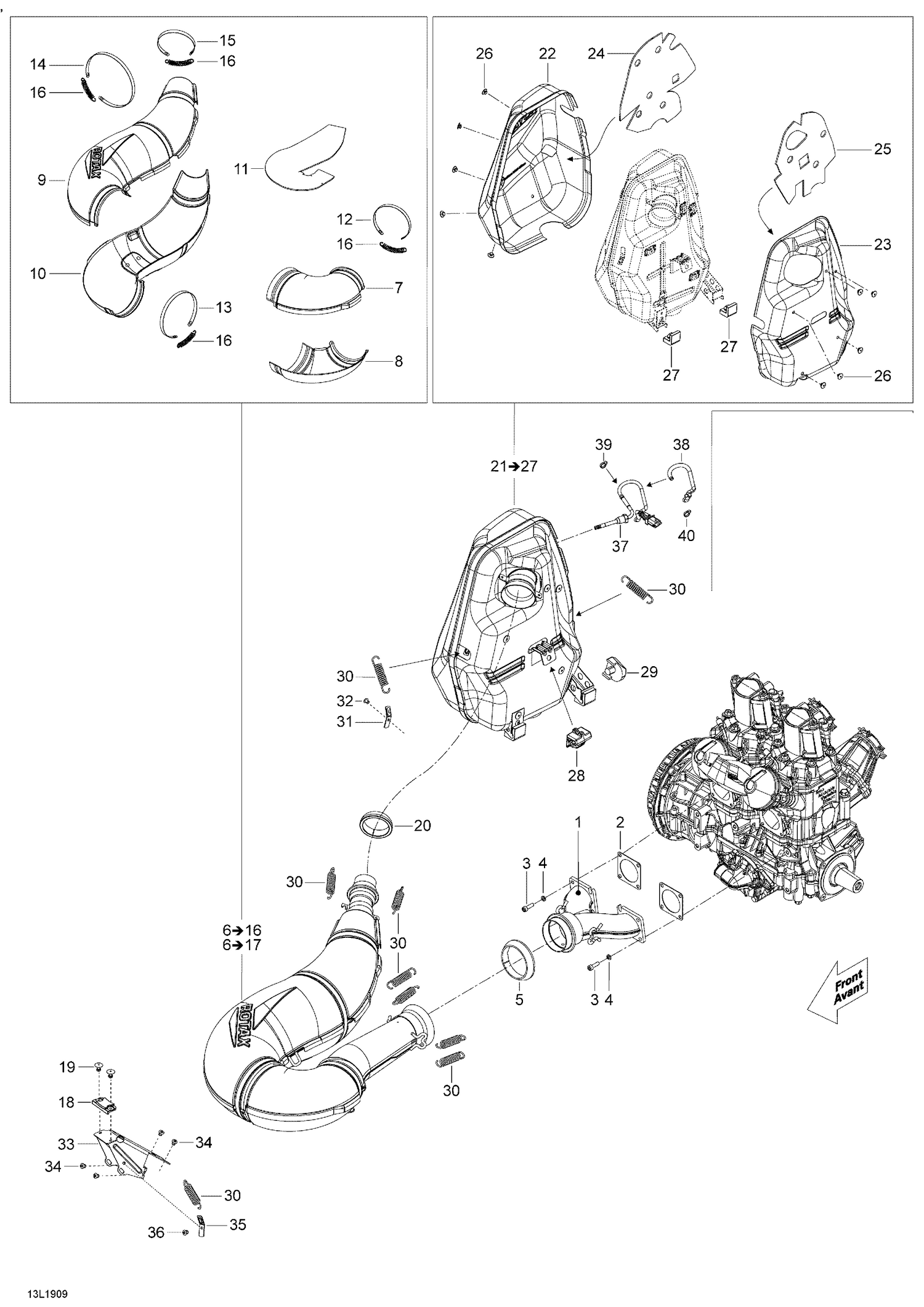

01- Exhaust - 600 E-TEC
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420673421 | Exhaust Manifold |
| 2 | 420850552 | Tiiviste |
| 3 | 250001077 | Socket Head Screw M6 X 20 This part replaces 514054626. |
| 4 | 605620001 | Lukitusaluslevy Nord-lock M6 |
| 5 | 514053487 | Exhaust Gasket |
| 7 | 514054992 | Front Upper Half Enveloppe |
| 8 | 514054993 | Front Lower Half Enveloppe |
| 9 | 514055039 | Rear Upper Half Enveloppe |
| 10 | 514054990 | Rear Lower Half Enveloppe |
| 11 | 514054487 | Insulating Wool |
| 12 | 514054408 | Retaining Strap |
| 13 | 514054409 | Retaining Strap |
| 14 | 514054410 | Retaining Strap |
| 15 | 514053499 | Norma gear clamp |
| 16 | 514053643 | Spring |
| 18 | 514054275 | Kannatinkumi |
| 20 | 514054174 | Exhaust Gasket |
| 22 | 514054985 | RH Deflector |
| 23 | 514055029 | LH DEFLECTOR - Call your local BRP dealership |
| 24 | 514054711 | RH Insulating Wool |
| 25 | 514054299 | Värmeisolering, väster |
| 26 | 390910000 | Pop Rivet 3/16” |
| 27 | 514054529 | Lower Stopper |
| 28 | 514054606 | Upper Stopper |
| 29 | 514055070 | Rubber Bumber |
| 30 | 415107100 | Jousi äänenv.kiinnit. |
| 31 | 514054974 | Spring Bracket, 5mm hole |
| 32 | 390402200 | Pop Rivet 3/16 |
| 37 | 514054870 | Temperature Sensor |
