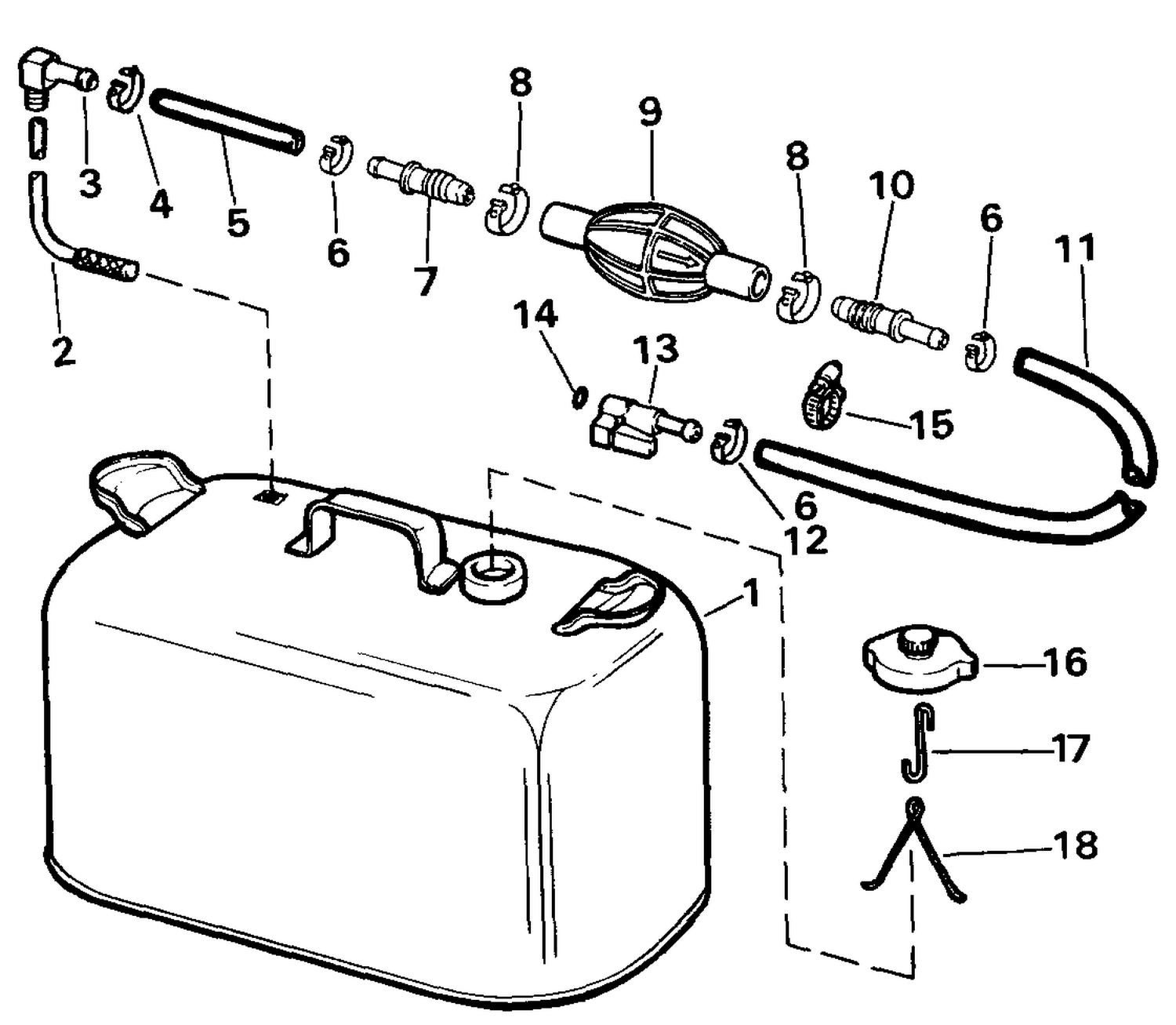

FUEL TANK
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0397767 | FUEL TANK ASSY. WITHOUT GAUGE |
| 1 | 0397853 | FUEL TANK ASSY. WITHOUT GAUGE |
| 2 | 0397832 | FUEL LINE ASSY. |
| 5 | HOSE, | Short, 406mm (16") |
| 9 | 0328492 | BULB, Primer |
| 11 | HOSE, | Long, 2515mm (99") |
| 12 | 0322654 | PINCE RAPIDE, flexible d'huile |
| 13 | 0396390 | CONNECTOR ASSY., Fuel |
| 16 | 0388933 | CAP ASSY., Fuel |
| 0174509 | 5008607 | FLEXIBLE DE CARBURANT ET POIRE D'AMORÇAGE This part replaces 0174509. |
| 0397459 | 5008607 | FLEXIBLE DE CARBURANT ET POIRE D'AMORÇAGE This part replaces 0397459. |
