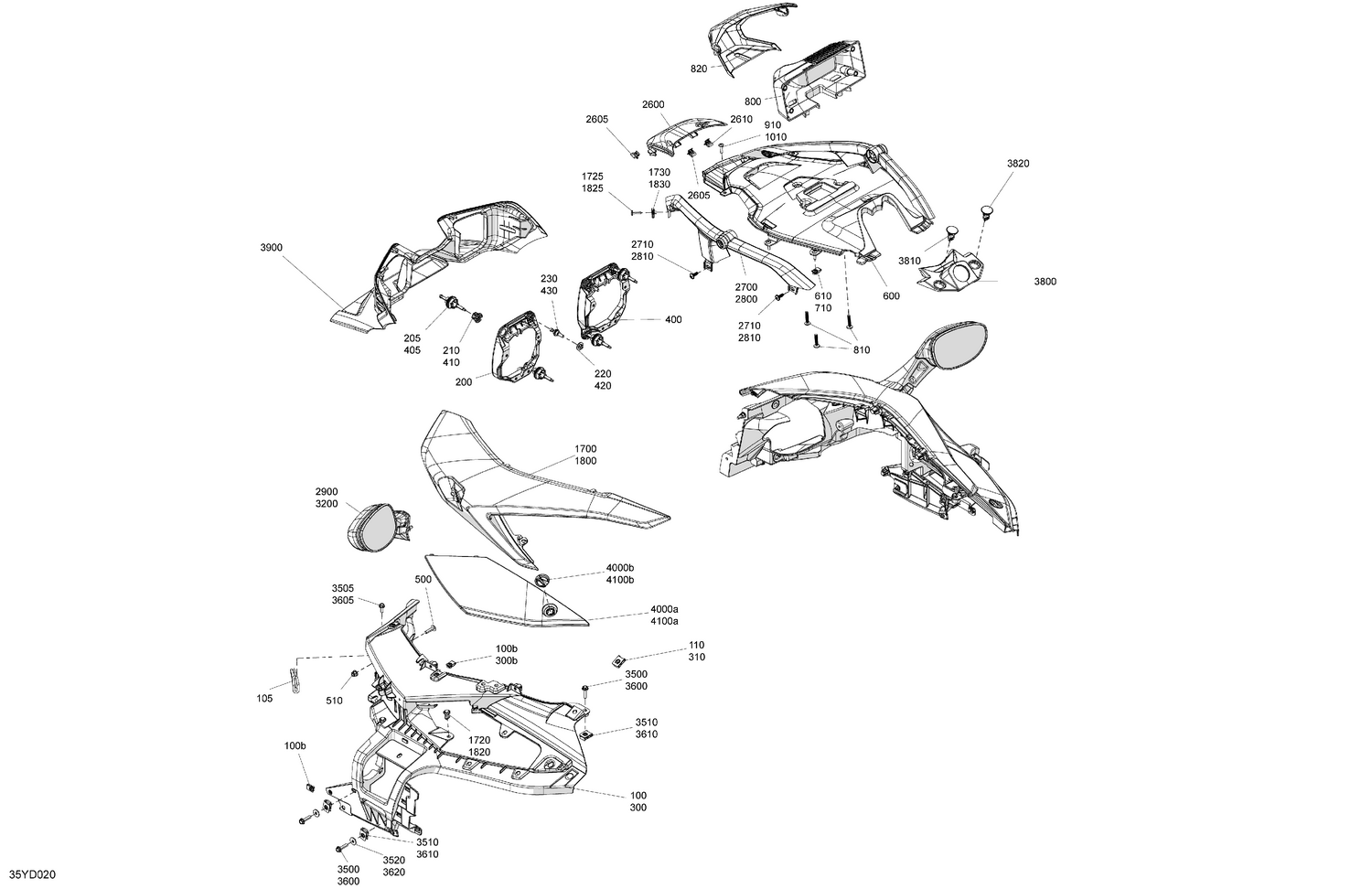

07- Body - Console
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 100b | 250000958 | Panel Nut M5 X 0.8 |
| 105 | 219704354 | Trim 1000Mm Long |
| 110 | 250100208 | Panel Nut M6 X 1.0 |
| 200 | 708400748 | LH Front Headlight Support |
| 205 | 708400954 | Adjuster This part replaces 708400814. |
| 210 | 708400823 | Retaining Ring |
| 220 | 705014119 | Large Shoulder Nut M6 |
| 230 | 705018616 | Ball Stud |
| 300b | 250000958 | Panel Nut M5 X 0.8 |
| 310 | 250100208 | Panel Nut M6 X 1.0 |
| 400 | 708400749 | RH Front Headlight Support |
| 405 | 708400954 | Adjuster This part replaces 708400814. |
| 410 | 708400823 | Retaining Ring |
| 420 | 705014119 | Large Shoulder Nut M6 |
| 430 | 705018616 | Ball Stud |
| 500 | 250000758 | Torx Screw M6 X 25 |
| 510 | 233261494 | Hex. Flange Elastic Nut M6 |
| 600 | 708400743 | Upper Fairing |
| 610 | 250000958 | Panel Nut M5 X 0.8 |
| 710 | 250000958 | Panel Nut M5 X 0.8 |
| 800 | 708400755 | Gauge Support |
| 810 | 250000949 | Screw PT K60 X 30 |
| 820 | 708400758 | Support Trim |
| 910 | 250000724 | Torx Screw M5 X 20 |
| 1010 | 250000724 | Torx Screw M5 X 20 |
| 1700 | 708400958 | Deep Black, LH Console Fairing This part replaces 708400719. |
| 1720 | 293150230 | Tuflok Plastic Rivet |
| 1725 | 250000724 | Torx Screw M5 X 20 |
| 1730 | 250000958 | Panel Nut M5 X 0.8 |
| 1800 | 708400959 | Deep Black, RH Console Fairing This part replaces 708400720. |
| 1820 | 293150230 | Tuflok Plastic Rivet |
| 1825 | 250000724 | Torx Screw M5 X 20 |
| 1830 | 250000958 | Panel Nut M5 X 0.8 |
| 2600 | 708400826 | Deep Black, Front Fairing |
| 2605 | 517302785 | Edge Clip |
| 2610 | 517302785 | Edge Clip |
| 2700 | 708400741 | LH Cross Member |
| 2710 | 250000546 | Oval Head Torx Screw K60 X 16 |
| 2800 | 708400742 | RH Cross Member |
| 2810 | 250000546 | Oval Head Torx Screw K60 X 16 |
| 2900 | 705015049 | LH Housing Rear View Mirror Ass'y |
| 3200 | 705015050 | RH Housing Rear View Mirror Ass'y |
| 3500 | 250000793 | Hex. Flange Screw M6 X 25 |
| 3505 | 210261650 | Hex. Flange Screw M6 X 16 |
| 3510 | 250100208 | Panel Nut M6 X 1.0 |
| 3520 | 250200164 | Flat washer M6 |
| 3600 | 250000793 | Hex. Flange Screw M6 X 25 |
| 3605 | 210261650 | Hex. Flange Screw M6 X 16 |
| 3610 | 250100208 | Panel Nut M6 X 1.0 |
| 3620 | 250200164 | Flat washer M6 |
| 3800 | 708400205 | Switch Bezel |
| 3810 | 708400866 | Switch Plug |
| 3820 | 708400866 | Switch Plug |
| 3900 | 705017970 | Front Access Cover |
| 4000a | 708400238 | Black Polycarbonate, LH Acces Panel |
| 4000b | 708400065 | Cover Latch Quarter Turn |
| 4100a | 708400239 | Black Polycarbonate, RH Acces Panel |
