Parts Catalog

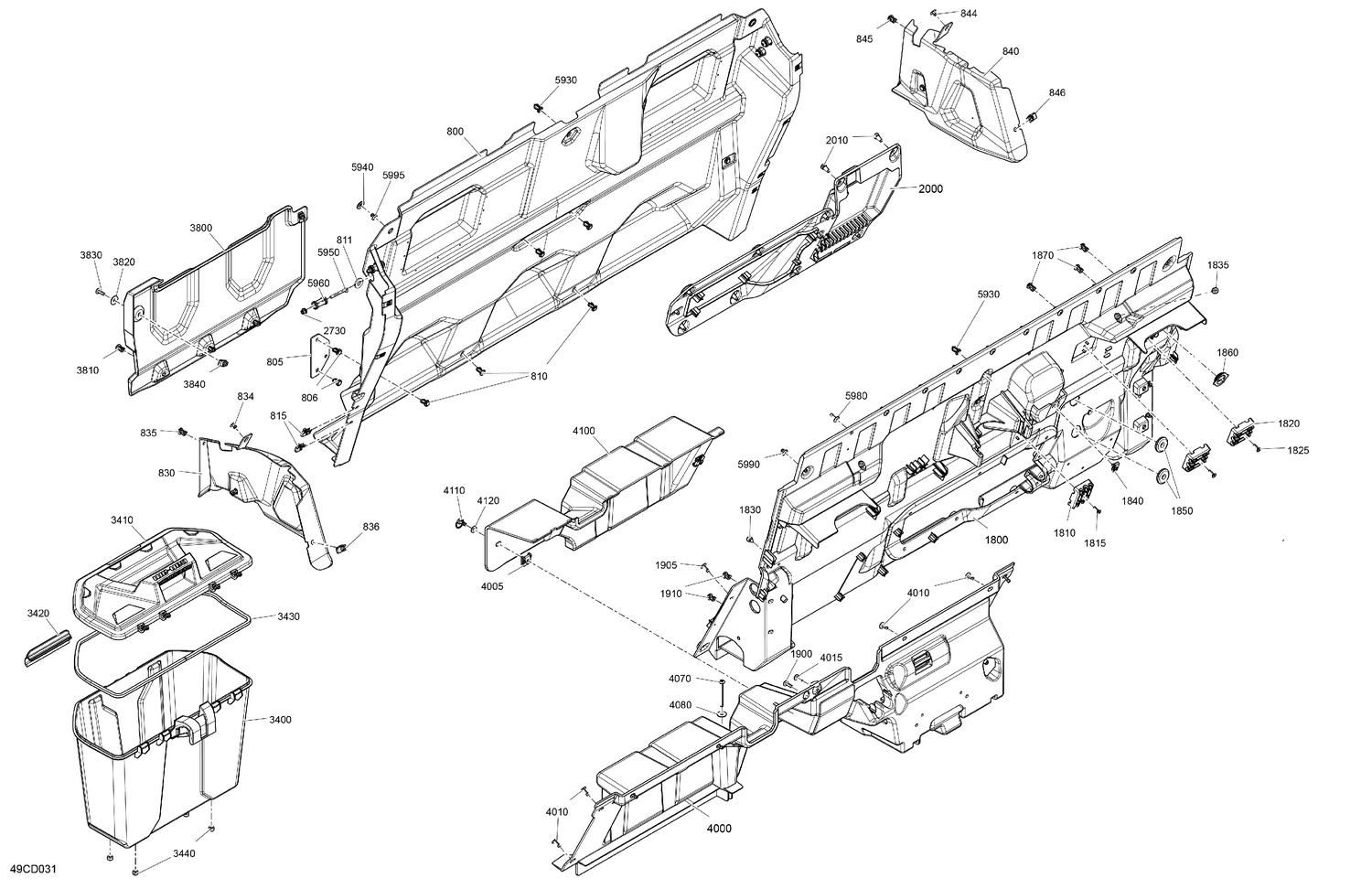

07- Cab Interior - Back Wall

Parts (56)

Ref	Part Number	Description
800	715008394	Central Rear Body Panel Deflector Kit
805	707900469	Plate
806	293150230	Tuflok Plastic Rivet
810	293150230	Tuflok Plastic Rivet
811	503192494	Washer
815	250100198	Panel Nut M6 X 1.0
830	707900994	LH Lower Panel
834	293150104	Pop Rivet 3/16"
835	293150230	Tuflok Plastic Rivet
836	250100198	Panel Nut M6 X 1.0
840	707900995	RH Lower Panel
844	293150104	Pop Rivet 3/16"
845	293150230	Tuflok Plastic Rivet
846	250100198	Panel Nut M6 X 1.0
1800	715008401	Rear Upper Cab Panel Kit
1810	707900788	Hose Support
1815	250000720	Torx Screw K50 X 16
1820	707900788	Hose Support
1825	250000720	Torx Screw K50 X 16
1830	293830005	Rubber Bumper
1835	293830005	Rubber Bumper
1840	250100198	Panel Nut M6 X 1.0
1850	293720119	Grommet
1860	293000125	Plug
1870	293150230	Tuflok Plastic Rivet
1900	250000722	Torx Screw M6 X 20
1905	293150100	Pop Rivet 3/16"
1910	293150230	Tuflok Plastic Rivet
2000	707900742	Rear Access Cover
2010	250000712	Torx Screw M6 X 20
2730	250100199	Insert Half Hex Body M6 x 1.0
3400	715003314	Storage Box
3410	715003314	Storage Box
3420	269501945	Clip
3430	293250453	Neoprene Seal
3440	293830005	Rubber Bumper
3800	707900996	Rear Panel
3810	293150230	Tuflok Plastic Rivet
3820	250200162	Flat Washer M6.6 X 22
3830	250000722	Torx Screw M6 X 20
3840	250100198	Panel Nut M6 X 1.0
4000	707901074	Rear Lower Cab Panel
4005	705002651	Quarter Turn Nut
4010	293150100	Pop Rivet 3/16"
4015	250000722	Torx Screw M6 X 20
4070	250000954	Torx Screw M6 X 70
4080	250200162	Flat Washer M6.6 X 22
4100	707900743	Battery Cover
4110	705002649	Quarter Turn Screw
4120	708400286	Washer
5930	293150230	Tuflok Plastic Rivet
5940	292001663	Flat Washer 8 mm, Nylon
5950	250000868	Torx Truss M6 X 50
5960	707900470	Spacer
5980	293150100	Pop Rivet 3/16"
5990	293150103	Pop Rivet 3/16"
