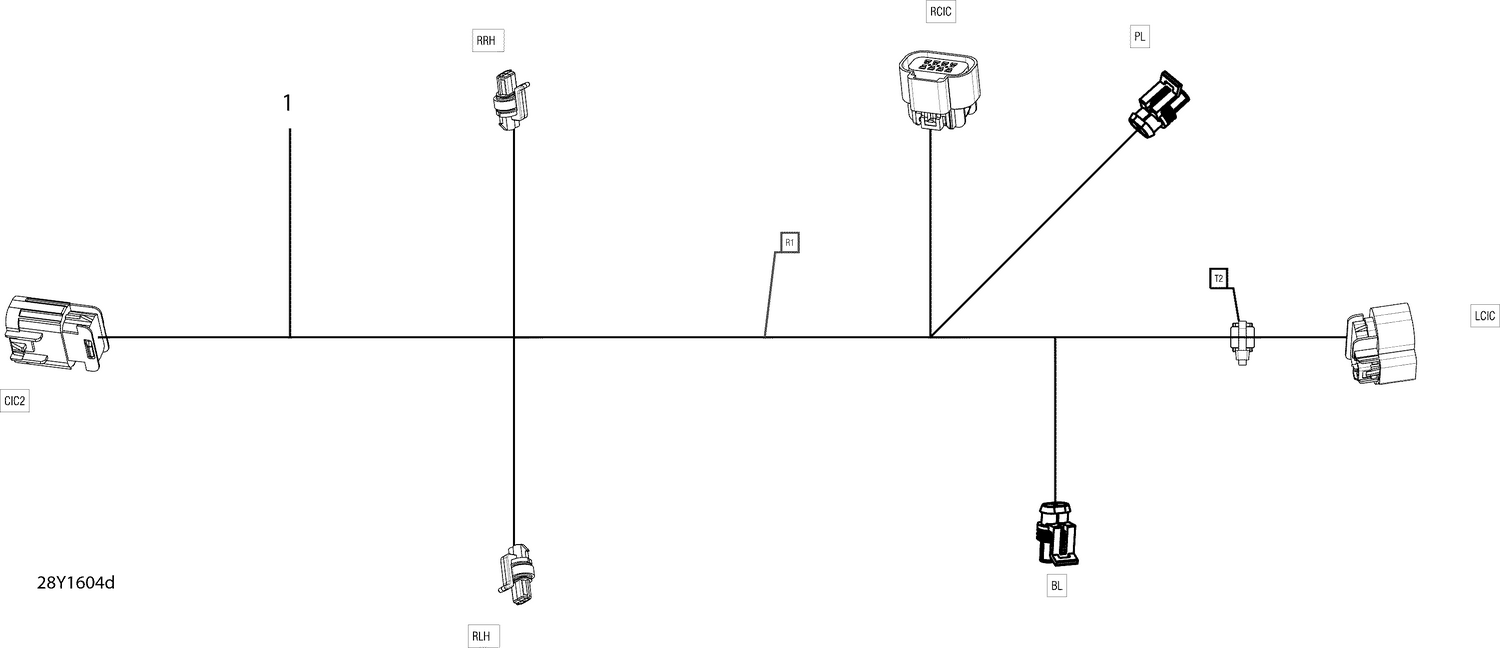

10- Electrical Harness - Cargo
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| BL | 409209500 | Female Housing, 2 Circuits |
| BL | 515176621 | Wire Seal |
| BL | 710001340 | Female Terminal |
| CIC2 | 710001222 | Lock |
| CIC2 | 710001223 | Terminal |
| CIC2 | 710001224 | Terminal |
| CIC2 | 710001225 | Cap |
| CIC2 | 710001233 | Seal |
| CIC2 | 710001332 | Seal Wire |
| CIC2 | 710001929 | Housing, Packard |
| LCIC | 710001222 | Lock |
| LCIC | 710001225 | Cap |
| LCIC | 710001228 | Terminal |
| LCIC | 710001229 | Terminal |
| LCIC | 710001233 | Seal |
| LCIC | 710001332 | Seal Wire |
| LCIC | 710001951 | Housing |
| PL | 409209500 | Female Housing, 2 Circuits |
| PL | 515176621 | Wire Seal |
| PL | 710001340 | Female Terminal |
| R1 | 710002069 | RESISTOR - Call your local BRP dealership |
| RCIC | 710001222 | Lock |
| RCIC | 710001225 | Cap |
| RCIC | 710001228 | Terminal |
| RCIC | 710001229 | Terminal |
| RCIC | 710001233 | Seal |
| RCIC | 710001332 | Seal Wire |
| RCIC | 710001928 | Housing |
| RLH | 515177192 | Female Housing, 2 Circuits |
| RLH | 710001164 | Female Terminal |
| RLH | 710001233 | Seal |
| RRH | 515177192 | Female Housing, 2 Circuits |
| RRH | 710001164 | Female Terminal |
| RRH | 710001233 | Seal |
