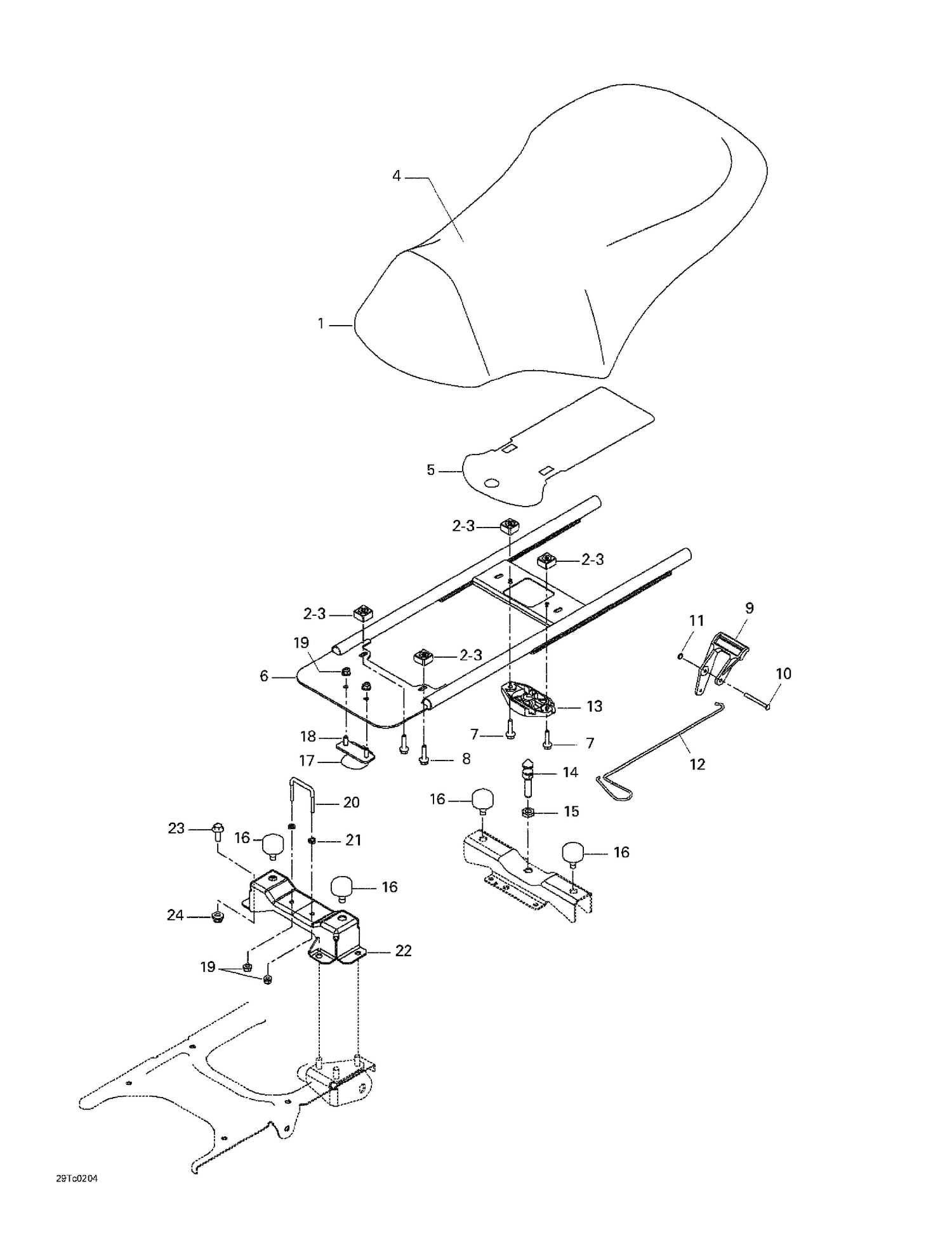

09- Seat
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 232561414 | Elastic Stop Nut M6 |
| 5 | 708000029 | Reflective Sheet |
| 6 | 708000085 | Seat Support |
| 7 | 207662544 | Hex. Flange Screw M6 X 25 |
| 8 | 207661644 | Hex. Flange Screw M6 X 16 |
| 9 | 708000010 | Lever Latch |
| 10 | 293150062 | SOLID RIVET 3/16 X 1-7/8 - Call your local BRP dealership |
| 11 | 389804300 | Push Nut |
| 12 | 708000015 | SPRING - Call your local BRP dealership |
| 13 | 708000034 | Latch Base |
| 14 | 291000689 | LATCH STUD - Call your local BRP dealership |
| 15 | 232100600 | Hex. Jam Nut M10 |
| 16 | 708000758 | Rubber Stopper This part replaces 708000006. |
| 18 | 211300024 | Stud Self Clinching M6 |
| 19 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 20 | 291000468 | SEAT HOOK - Call your local BRP dealership |
| 21 | 232061600 | Hex. Nut M6 |
| 22 | 708000088 | Seat Support |
| 23 | 207682044 | Hex. Flange Screw M8 X 20 |
