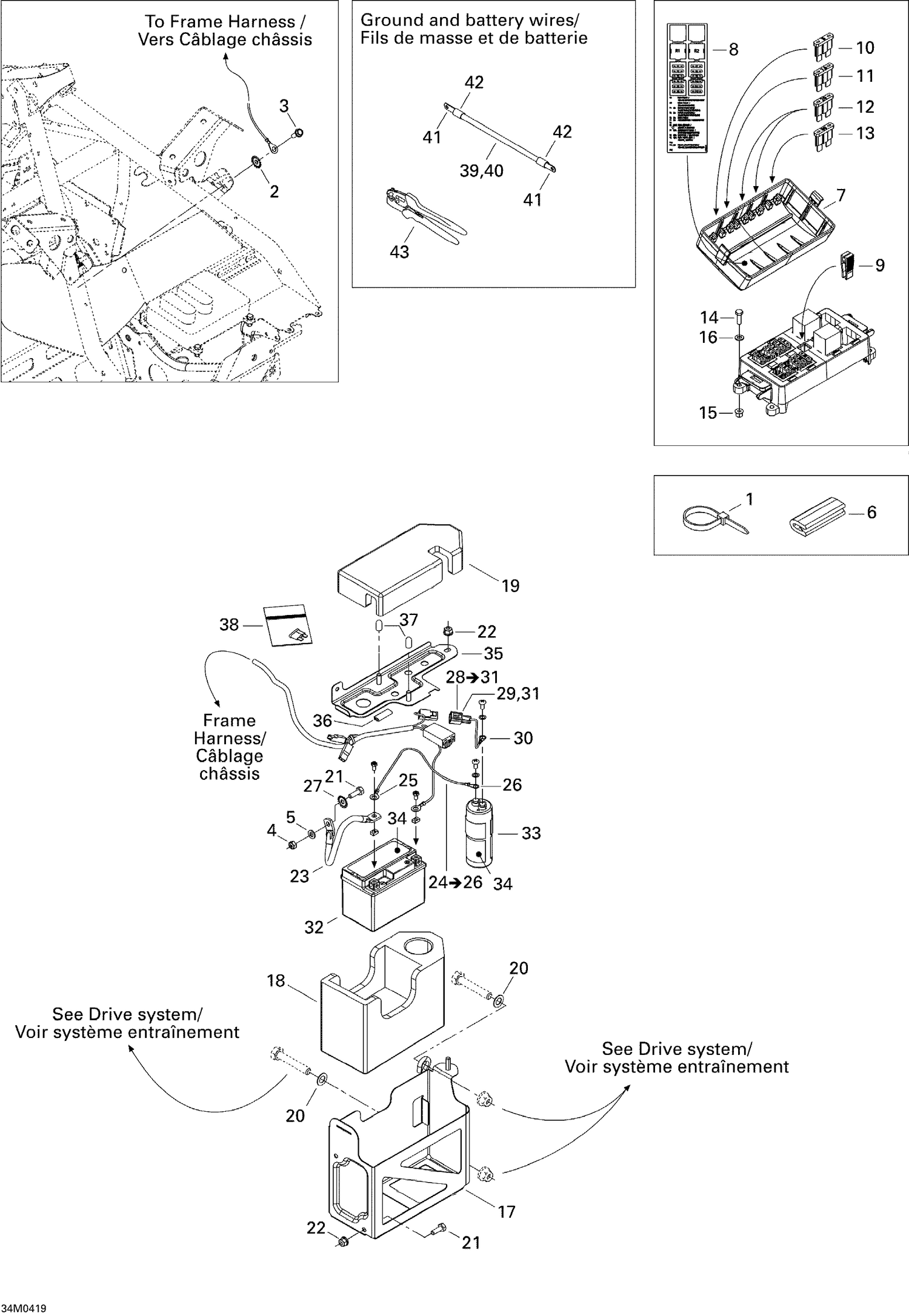

| Ref | Part Number | Description |
|---|
| 1 |
414115200 |
Tie-Rap 180 mm |
| 2 |
394001900 |
EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership |
| 3 |
210251180 |
HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership |
| 4 |
232561414 |
Elastic Stop Nut M6 |
| 5 |
234061410 |
Flat Washer 6 mm |
| 6 |
219704353 |
Was 271000110 Protection Trim |
| 7 |
515176066 |
COVER - Call your local BRP dealership |
| 8 |
516002141 |
Fuse Decal |
| 9 |
515175811 |
FUSE TOOL - Call your local BRP dealership |
| 10 |
278000344 |
Fuse, 5 Amperes |
| 11 |
278000704 |
FUSE, 7.5 AMPERES - Call your local BRP dealership |
| 12 |
409003900 |
Fuse, 20 Amperes |
| 13 |
410917200 |
Fuse, 30 Amperes |
| 14 |
207152044 |
Hex. Screw M5 X 20 |
| 15 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 16 |
234051410 |
Flat Washer M5 |
| 17 |
515176017 |
Battery Support, Black |
| 18 |
515176026 |
Capacitor Support |
| 19 |
515176114 |
COVER - Call your local BRP dealership |
| 20 |
503175800 |
Washer |
| 21 |
207161844 |
Hex. Screw M6 X 18 |
| 22 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 23 |
Not |
Available As Spare Part - Ground Wire |
| 25 |
278000992 |
Open Barrel |
| 26 |
515175504 |
Ring Terminal |
| 27 |
250200041 |
Lock Washer Serrated M6 |
| 29 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 30 |
515175504 |
Ring Terminal |
| 31 |
515175509 |
MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 32 |
415130961 |
Battery 12 Volt 4 Ah This part replaces 410301204. |
| 33 |
515176387 |
CAPACITOR - Call your local BRP dealership This part replaces 515176025. |
| 34 |
516002976 |
CAPACITOR DECAL - Call your local BRP dealership This part replaces 516002601. |
| 35 |
515175735 |
BATTERY STRIP - Call your local BRP dealership |
| 36 |
219704405 |
TRIM 30000MM LONG - Call your local BRP dealership |
| 37 |
515176141 |
Cap |
| 38 |
Not |
Available As Spare Part - Plastic Bag |
| 39 |
278001680 |
Ground Cable Battery, no 6, meter) |
| 40 |
278001690 |
Cable Battery, no 6, meter) |
| 41 |
278001682 |
Terminal 45°, Small Hole |
| 42 |
219704447 |
Was 710000483 Heat Shrink Tubing |
| 278001685 |
FLAT |
TERMINAL, BIG HOLE - Call your local BRP dealership 278001685 |
| 278001685 |
Terminal |
Plate, Gros Trou - Appelez votre concessionnaire BRP local 278001685 |
| 278001688 |
FLAT |
TERMINAL - Call your local BRP dealership 278001688 |
| 278001688 |
Terminal |
Plat - Appelez votre concessionnaire BRP local 278001688 |
