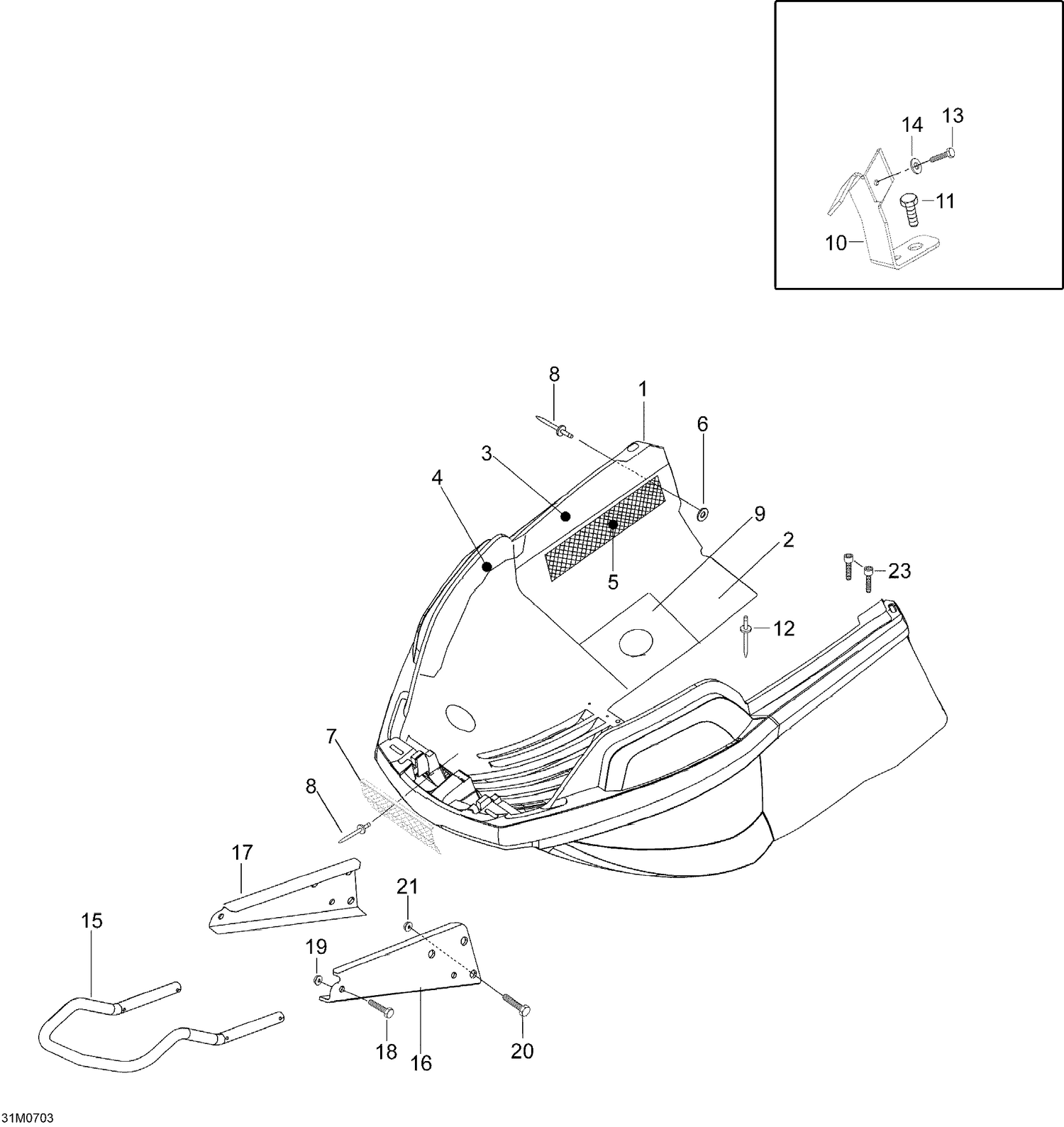

| Ref | Part Number | Description |
|---|
| 1 |
605255248 |
Bottom Pan ass'y Yeti LTS600mm - Call your local BRP dealership This part replaces 605153487. |
| 2 |
619690002 |
ISOLATION SHEET - Call your local BRP dealership This part replaces 605354965. |
| 3 |
605354966 |
HEAT DEFLECTOR - Call your local BRP dealership |
| 4 |
619690002 |
ISOLATION SHEET - Call your local BRP dealership This part replaces 605354967. |
| 5 |
605354968 |
RH SIDE GRILL - Call your local BRP dealership |
| 5 |
605354969 |
LH SIDE GRILL - Call your local BRP dealership |
| 6 |
20008 |
Washer 5,3 mm This part replaces M20008. |
| 7 |
605255513 |
FRONT GRILL - Call your local BRP dealership This part replaces 605354726. |
| 8 |
36009 |
Rivet This part replaces M36009. |
| 9 |
605354031 |
Reflective Sheet |
| 10 |
605354709 |
LH BRACKET - Call your local BRP dealership |
| 10 |
605354710 |
RH BRACKET - Call your local BRP dealership |
| 11 |
M40401 |
SCREW-HEX.CAP M6X10 - Call your local BRP dealership |
| 12 |
36037 |
Black Rivet This part replaces M36037. |
| 13 |
210251650 |
Hex. Forming Screw M5 X 16 This part replaces 210251680. |
| 14 |
20008 |
Washer 5,3 mm This part replaces M20008. |
| 15 |
605255112 |
BUMPER - Call your local BRP dealership |
| 16 |
605355113 |
LH BUMPER PLATE - Call your local BRP dealership |
| 17 |
605355114 |
RH BUMPER PLATE - Call your local BRP dealership |
| 18 |
207064044 |
Hex. Screw M6 X 40 |
| 19 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 20 |
207182044 |
Hex. Screw M8 X 20 |
| 21 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces M33201. |
