Parts Catalog

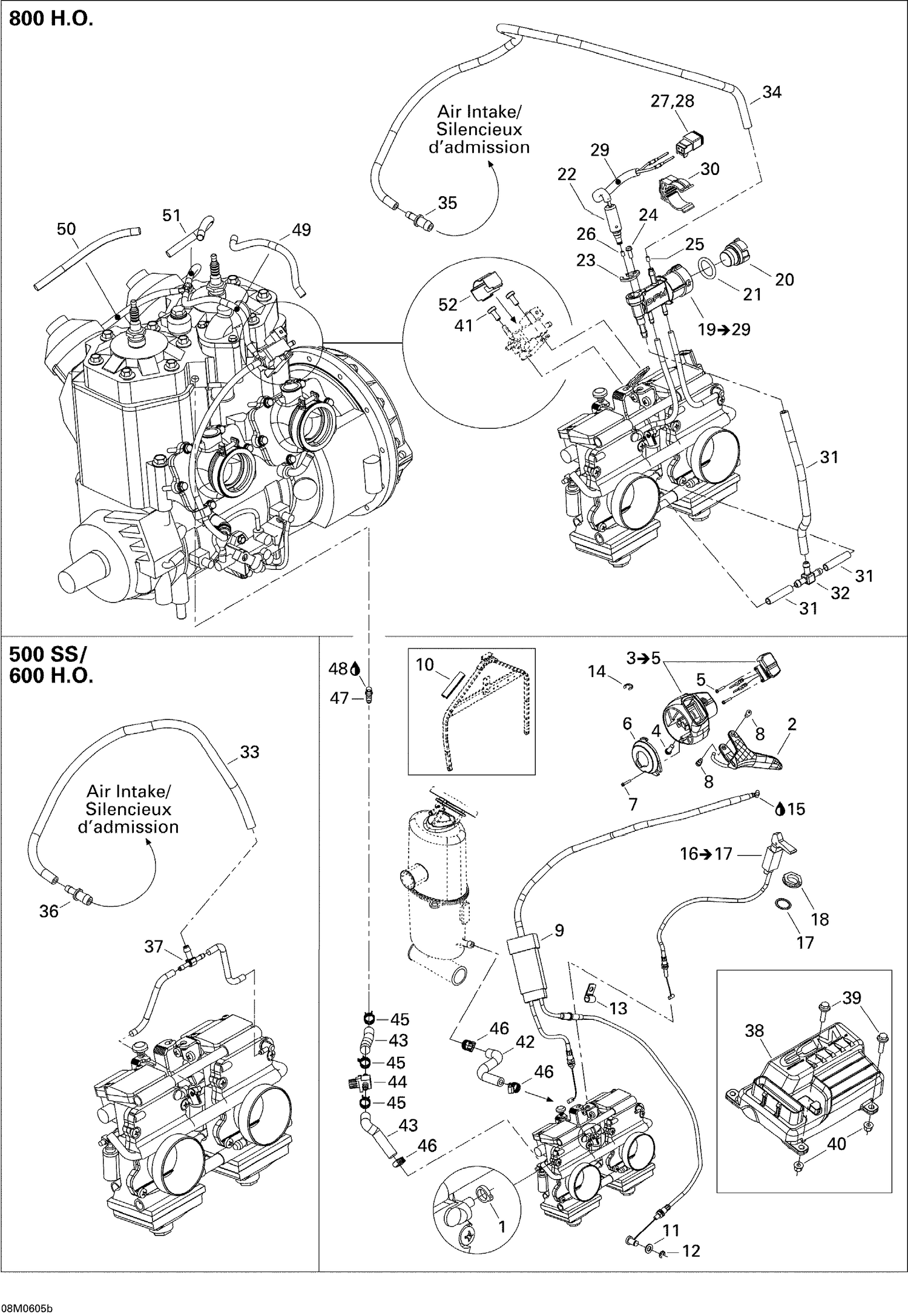

01- Engine 2 (500SS)

Parts (44)

Ref	Part Number	Description
1	293750001	Tie Wrap 94 mm
2	512060484	Throttle Handle Ass'y This part replaces 512059891.
4	250000036	SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership
5	250000098	PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership
6	512059698	COVER - Call your local BRP dealership
7	250000098	PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership
8	732601143	Flange Screw
10	512059750	PROTECTOR - Call your local BRP dealership
11	234081100	Flat Washer 8 mm, Nylon
12	414753500	Circlip
13	414176000	Open Clamp
14	414274500	Circlip
15	219704453	Was 293550004 Dielectric Grease, 150 g
17	394103300	Lock Washer, Interior Teeth
18	512059094	PLASTIC NUT - Call your local BRP dealership
19	XXX	Not Available As Spare Parts
20	XXX	Not Available As Spare Parts
21	XXX	Not Available As Spare Parts
22	XXX	Not Available As Spare Parts
23	XXX	Not Available As Spare Parts
24	XXX	Not Available As Spare Parts
25	XXX	Not Available As Spare Parts
26	XXX	Not Available As Spare Parts
27	XXX	Not Available As Spare Parts
28	XXX	Not Available As Spare Parts
29	XXX	Not Available As Spare Parts
30	XXX	Not Available As Spare Parts
31	XXX	Not Available As Spare Parts
32	XXX	Not Available As Spare Parts
34	XXX	Not Available As Spare Parts
35	XXX	Not Available As Spare Parts
39	207652044	Hex.Flange Screw M5 X 20
40	233251434	Flange Elastic Nut M5 This part replaces 233251414.
41	XXX	Not Available As Spare Parts
42	509000171	FORMED HOSE - Call your local BRP dealership
43	509000093	Hose 8 mm
44	512059324	Valve 5/16”
45	414655700	Spring Clamp
46	293650170	Tridon Gear Clamp
47	512060196	Male Connector 1/8"-27 NPT This part replaces 512059970.
48	219704455	Was 293800018 Loctite 592, 50 ml
49	XXX	Not Available As Spare Parts
50	XXX	Not Available As Spare Parts
51	XXX	Not Available As Spare Parts
