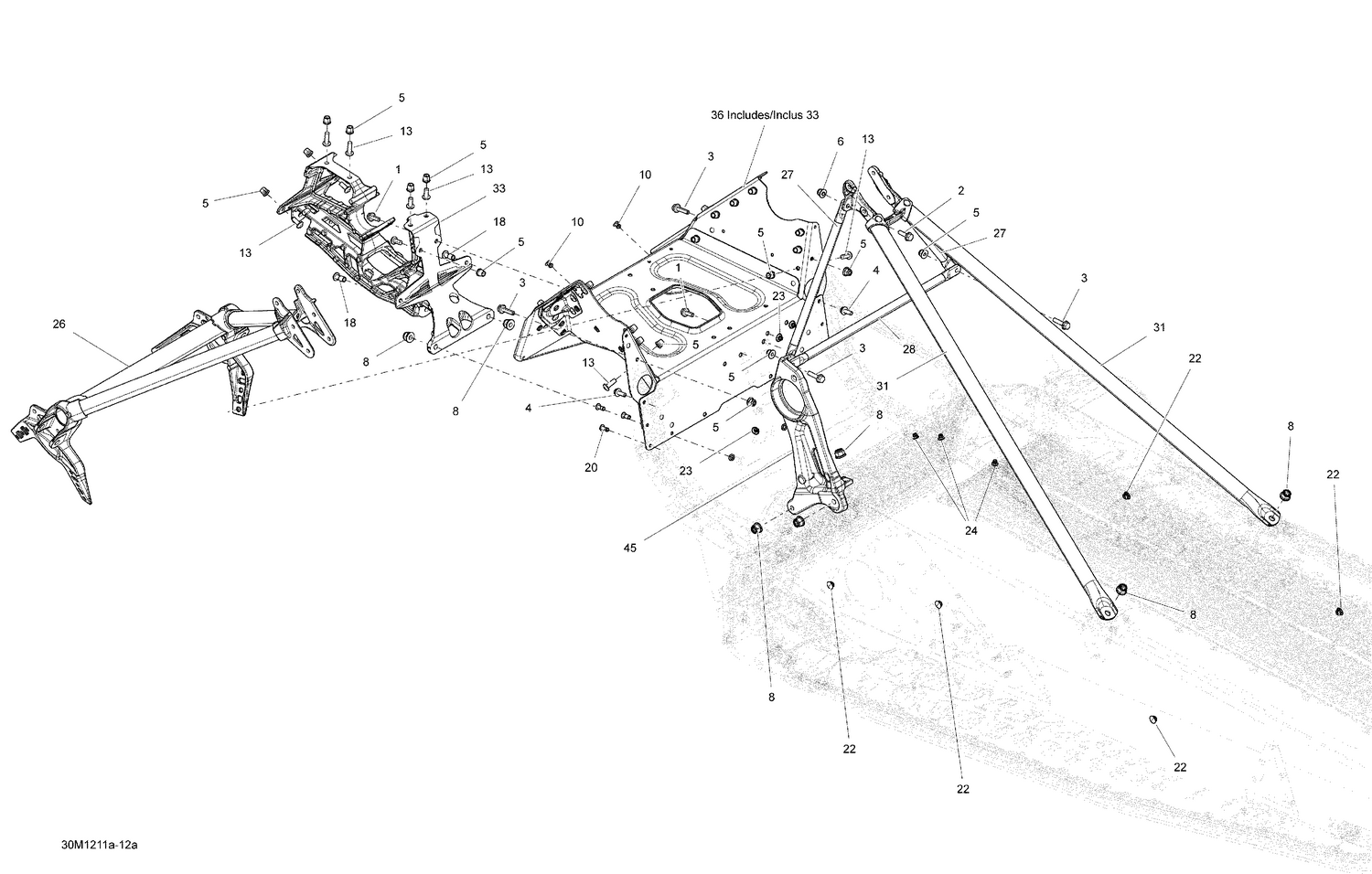

09- Frame Common Parts
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207661644 | Hex. Flange Screw M6 X 16 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 |
| 3 | 207662544 | Hex. Flange Screw M6 X 25 |
| 4 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 5 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 6 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 8 | 233281414 | Hex. Flange Elastic Nut M8 |
| 10 | 293150144 | Stavex Rivet |
| 13 | 207662044 | Hex. Flange Screw M6 X 20 |
| 16 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 18 | 293150182 | Monobolt Rivet 6.4 |
| 20 | 293150191 | Monobolt Rivet, 4.8 mm |
| 22 | 293730054 | DART 8 MM, WHITE - Call your local BRP dealership |
| 23 | 293730042 | Full Moon Dart 5 mm |
| 24 | 390402400 | Pop Rivet 3/16" |
| 26 | 518327565 | Front Member This part replaces 518326972. |
| 27 | 518325114 | Upper Lateral Column Support |
| 28 | 518325115 | Center Column Support |
| 31 | 518326559 | Rear Member |
| 33 | 518327487 | Front Suspension Support This part replaces 518325925. |
| 36 | 518328322 | Cross Member S Module This part replaces 518325946. |
