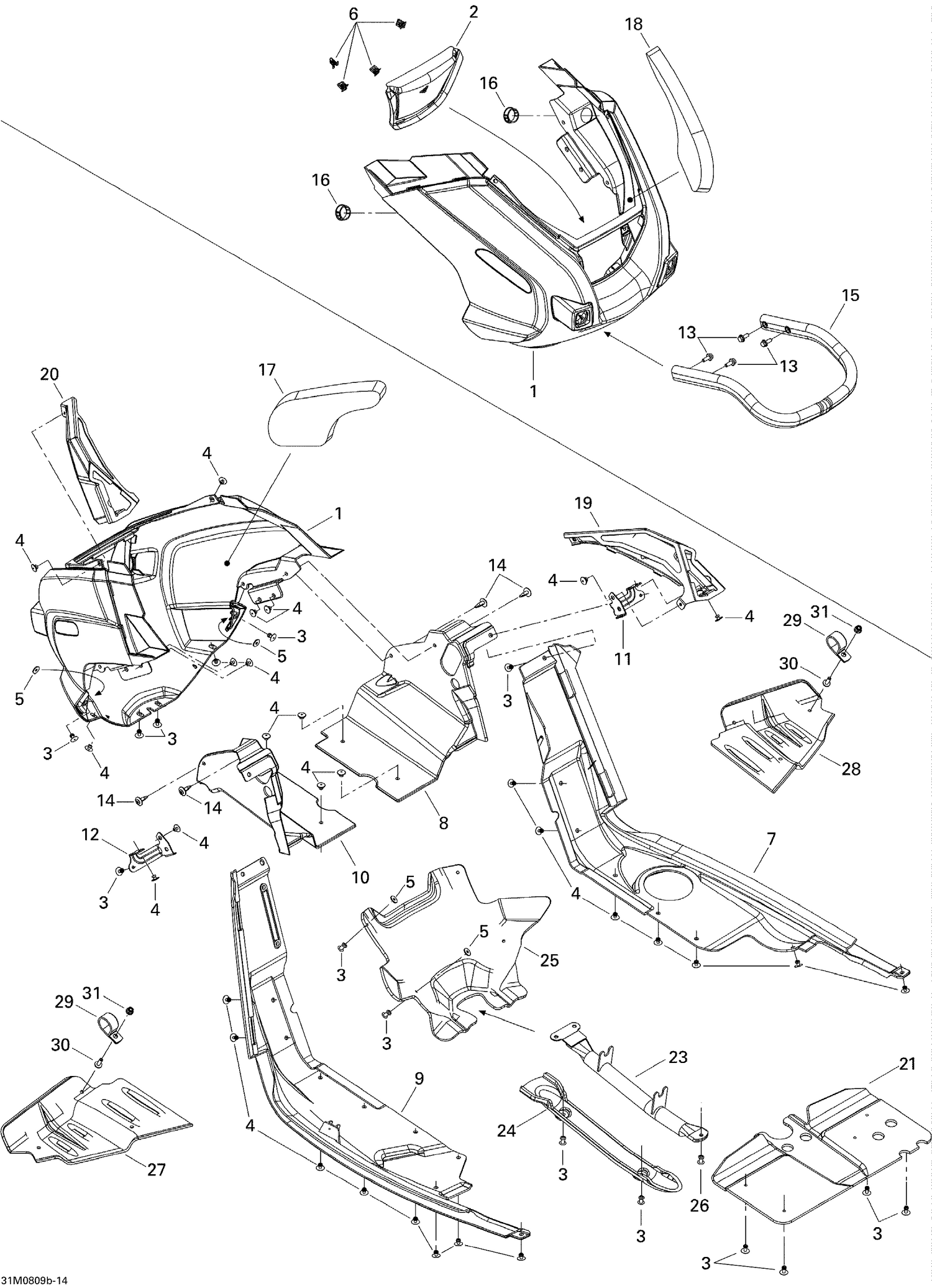

| Ref | Part Number | Description |
|---|
| 1 |
502006856 |
Front Bottom Pan |
| 2 |
502006753 |
FRONT BOTTON PAN GRILL - Call your local BRP dealership |
| 3 |
293150104 |
Pop Rivet 3/16 |
| 4 |
293150103 |
Pop Rivet 3/16 |
| 5 |
517124300 |
Washer |
| 6 |
517302785 |
Clip |
| 7 |
502006852 |
RH BOTTOM PAN - Call your local BRP dealership |
| 8 |
502006853 |
RH SIDE BOTTOM PAN - Call your local BRP dealership |
| 9 |
502006788 |
LH BOTTOM PAN - Call your local BRP dealership |
| 10 |
502006851 |
LH Side Bottom Pan |
| 11 |
502006773 |
RH SUPPORT - Call your local BRP dealership |
| 12 |
502006775 |
LH SUPPORT - Call your local BRP dealership |
| 13 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 14 |
414745900 |
Tuflock Phillips Plastic Screw |
| 15 |
502006797 |
FRONT BUMPER - Call your local BRP dealership |
| 16 |
414916600 |
Nylon Cap |
| 17 |
502006807 |
RH BOTTOM PAN FOAM - Call your local BRP dealership |
| 18 |
502006808 |
LH BOTTOM PAN FOAM - Call your local BRP dealership |
| 19 |
502006789 |
RH BOTTON PAN GRILL - Call your local BRP dealership |
| 20 |
502006791 |
LH BOTTON PAN GRILL - Call your local BRP dealership |
| 21 |
502006962 |
SKID PLATE - Call your local BRP dealership |
| 23 |
502006838 |
Protector Tube |
| 24 |
502006812 |
Skid Plate |
| 25 |
502006857 |
Skid Plate |
| 26 |
293150138 |
POP RIVET 1/4 - Call your local BRP dealership |
| 27 |
502006882 |
Protector |
| 28 |
502006881 |
Protector |
| 29 |
293750035 |
Open Clamp |
| 30 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
