Parts Catalog

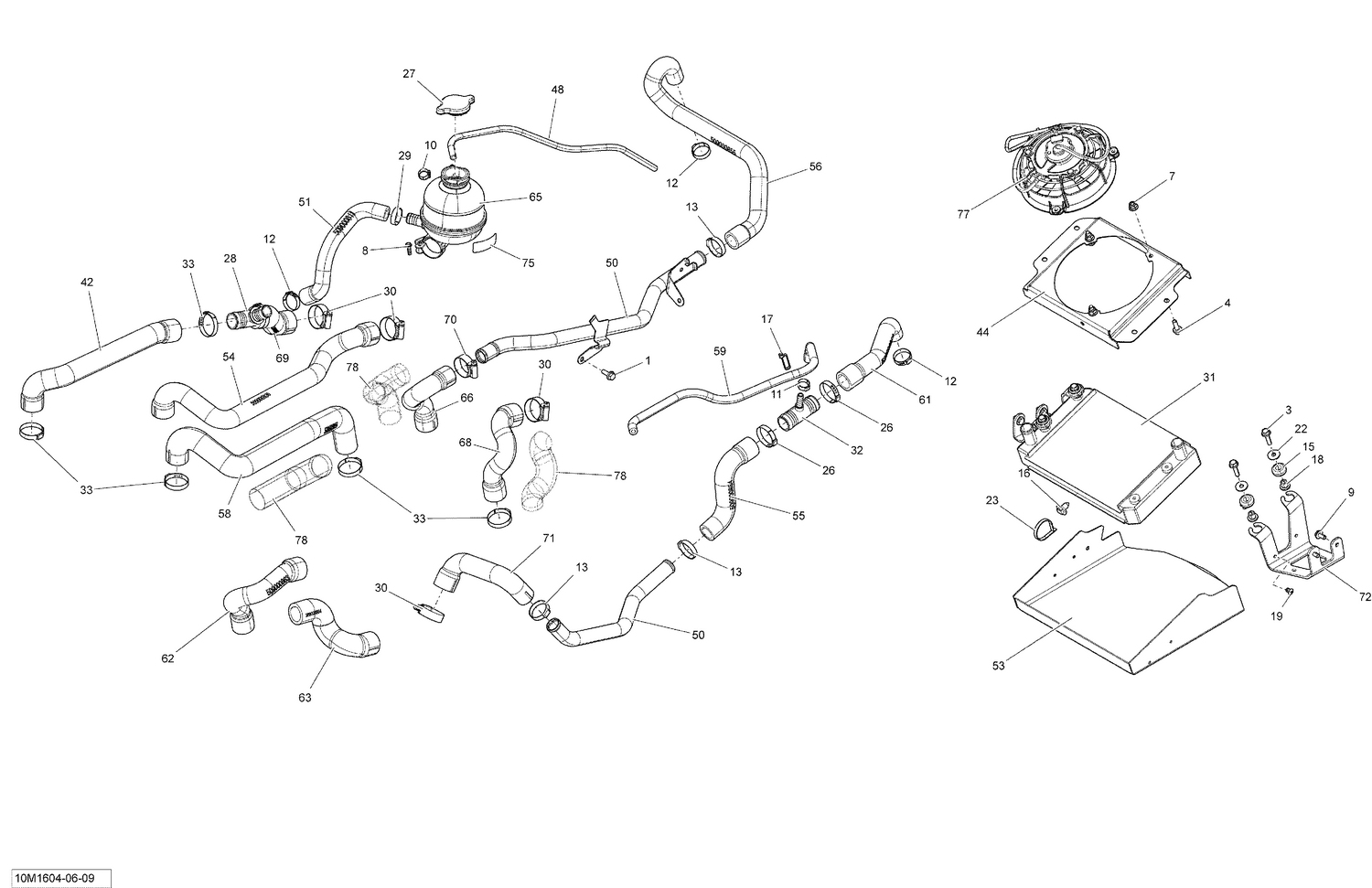

01- Cooling System - 600-900 ACE

Parts (45)

Ref	Part Number	Description
1	Not	Available As Spare Part - Non Applicable
3	Not	Available As Spare Part - Non Applicable
4	Not	Available As Spare Part - Non Applicable
7	Not	Available As Spare Part - Non Applicable
8	241151640	Hex. Flange Screw K50 X 2.24 X 16
9	Not	Available As Spare Part - Non Applicable
10	Not	Available As Spare Part - Non Applicable
11	Not	Available As Spare Part - Non Applicable
12	293650099	Crimp Clamp
13	293650141	Oetiker Clamp
15	Not	Available As Spare Part - Non Applicable
16	Not	Available As Spare Part - Non Applicable
17	293750002	Tie Wrap 142 mm
18	Not	Available As Spare Part - Non Applicable
19	390909100	Avex Rivet
22	Not	Available As Spare Part - Non Applicable
23	414115200	Tie-Rap 180 mm
26	Not	Available As Spare Part - Non Applicable
27	509000180	Radiator Pressure Cap
28	509000372	T-Fitting
29	509000442	Oeticker Gear Clamp, 25.6-706R
30	509000443	Aba Gear Clamp, 26-38 MM
31	Not	Available As Spare Part - Non Applicable
32	Not	Available As Spare Part - Non Applicable
42	509001062	Radiator Return Hose This part replaces 509000697.
44	Not	Available As Spare Part - Non Applicable
48	509000775	Hose
50	Not	Available As Spare Part - Non Applicable
51	509001063	Filling Hose This part replaces 509000811.
53	Not	Available As Spare Part - Non Applicable
54	509000836	Engine Outlet Hose
55	Not	Available As Spare Part - Non Applicable
56	Not	Available As Spare Part - Non Applicable
59	Not	Available As Spare Part - Non Applicable
61	Not	Available As Spare Part - Non Applicable
64	Not	Available As Spare Part - Non Applicable
65	509000881	Cooling Tank
66	Not	Available As Spare Part - Non Applicable
68	Not	Available As Spare Part - Non Applicable
70	Not	Available As Spare Part - Non Applicable
71	Not	Available As Spare Part - Non Applicable
72	Not	Available As Spare Part - Non Applicable
73	Not	Available As Spare Part - Non Applicable
75	516005904	Warning Decal
77	Not	Available As Spare Part - Non Applicable
