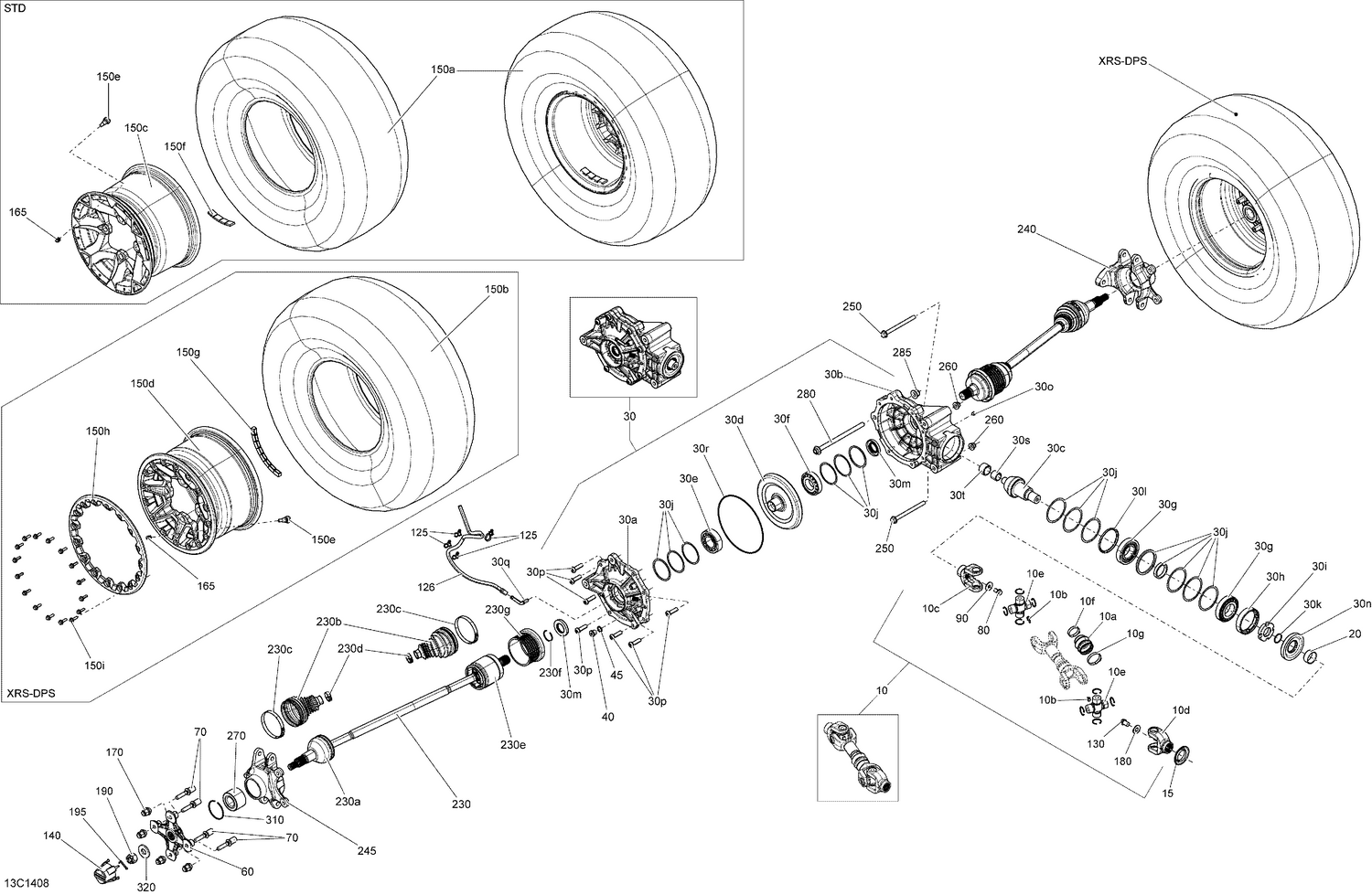

| Ref | Part Number | Description |
|---|
| 10a |
715900118 |
Rubber Boot |
| 10b |
715900239 |
GREASE FITTING - Call your local BRP dealership |
| 10c |
715900233 |
FIXED YOKE - Call your local BRP dealership |
| 10d |
715900129 |
Fixed Joint This part replaces 715900234. |
| 10e |
715900326 |
Universal Joint This part replaces 715500371. |
| 10f |
509000045 |
Oetiker Gear Clamp 36.1MM |
| 10g |
293650138 |
Oetiker Gear Clamp 44.0MM |
| 15 |
705501123 |
Protector |
| 20 |
705400036 |
Wear Ring |
| 30a |
705501735 |
REAR COVER - Call your local BRP dealership |
| 30b |
705501736 |
PINION COVER - Call your local BRP dealership |
| 30c |
703500867 |
Pinion Kit This part replaces 703500838. |
| 30d |
703500837 |
GEAR 36 TEETH KIT - Call your local BRP dealership |
| 30e |
Not |
Available As Spare Part - Ball Bearing |
| 30f |
Not |
Available As Spare Part - Ball Bearing |
| 30g |
Not |
Available As Spare Part - Ball Bearing |
| 30h |
705501740 |
NUT - Call your local BRP dealership |
| 30i |
Not |
Available As Spare Part - Nut |
| 30j |
703500839 |
Differential Shim Kit |
| 30k |
705501554 |
O-Ring |
| 30l |
Not |
Available As Spare Part - Washer |
| 30m |
705501556 |
Oil Seal |
| 30n |
705502276 |
Oil Seal This part replaces 705501933. |
| 30o |
705501724 |
Plug Drain |
| 30p |
705501562 |
Bolt |
| 30q |
705501584 |
Breather Tube |
| 30r |
705501749 |
Oil Seal |
| 30s |
Not |
Available As Spare Part - Douille Intérieure |
| 30t |
703500840 |
Needle Bearing |
| 40 |
705500504 |
Fill Level Plug |
| 45 |
705500506 |
Copper Washer |
| 60 |
705501900 |
Wheel Hub |
| 70 |
250300060 |
Wheel Stud This part replaces 250300051. |
| 80 |
250001044 |
Hex. Flange Screw M10 X 16 S.GRIP This part replaces 250000615. |
| 90 |
250200014 |
Flat Washer M10 |
| 125 |
710003168 |
Dart Tie Rap 200MM |
| 126 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 130 |
250001039 |
Hex Flange Screw M12 X 16 This part replaces 250000359. |
| 140 |
705400928 |
Wheel Cap |
| 150e |
705400193 |
Rim Valve With Cap |
| 165 |
293000110 |
Valve Cap |
| 170 |
250100184 |
Black, Wheel Nut M10 X 1.25 This part replaces 250100100. |
| 180 |
250200102 |
Flat Washer M12 |
| 190 |
232291413 |
Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 195 |
250400036 |
Cotter Pin |
| 230a |
705501863 |
CV_JOINT EXT - Call your local BRP dealership |
| 230c |
715900241 |
Oetiker Clamp, 82.1 mm |
| 230d |
715900242 |
Oetiker Clamp, 27.3 mm |
| 230e |
705501865 |
Plunging Joint |
| 230f |
705501781 |
Circlip |
| 230g |
705501841 |
HEAT DISSIPATOR - Call your local BRP dealership |
| 240 |
705501730 |
LH Rear Knuckle |
| 245 |
705501731 |
RH Rear Knuckle |
| 250 |
230602546 |
Hex. Flange Screw M10 X 125 |
| 260 |
233201436 |
Hex. Flange Elastic Nut M10 |
| 270 |
293350150 |
Ball Bearing This part replaces 293350040. |
| 280 |
230629087 |
HEX. FLANGED SCREW M12 X 190 - Call your local BRP dealership |
| 285 |
233221416 |
Elastic Flange Nut M12 |
| 310 |
293370019 |
Circlip |
