Parts Catalog

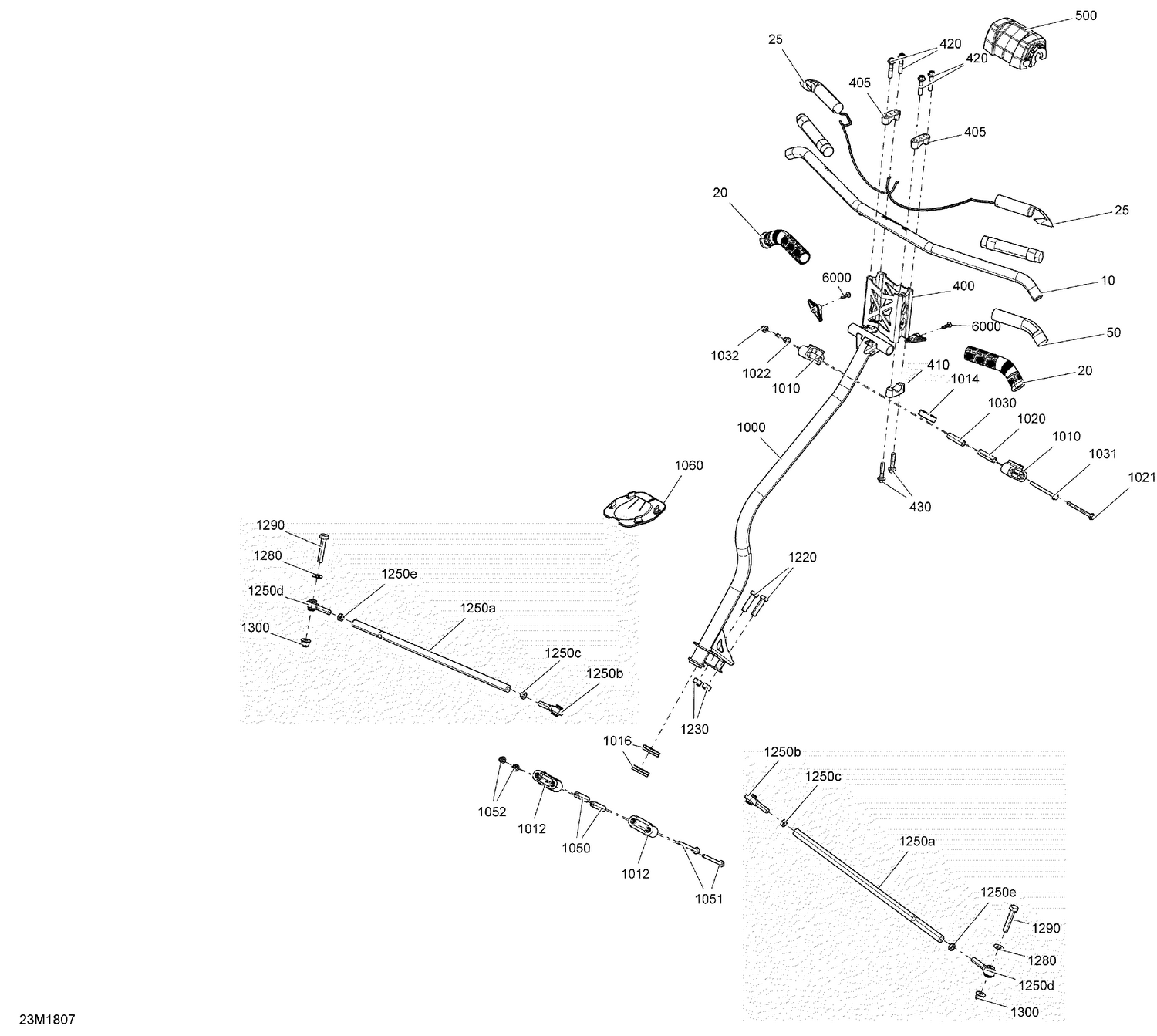

07- Steering MXZ - 1200 4-TEC

Parts (38)

Ref	Part Number	Description
10	506152709	Handle Bar, Non Dyed Clear Anodizing
20	506152560	Grip 148mm
25	506152758	Heating Element 32 Watt 2 Wires
25	506152799	RH Heating Element 32 Watt This part replaces 506152764.
50	506153176	Thermal Insulation This part replaces 506152548.
405	506152751	Steering Support This part replaces 506152750.
410	506152751	Steering Support
420	250000852	Hex. Flange Screw M8 X 1.25 x 40
430	250000852	Hex. Flange Screw M8 X 1.25 x 40
500	506152541	Deep Black, Steering Pad
1000	506152964	Steering Column
1010	506152508	Upper Half-Housing
1012	506152217	Lower Half-Housing
1014	506152509	Upper Anti-Vibration Gasket
1016	506152518	Lower Vibration Ring
1020	506152297	Housing Bushing
1021	207667056	Hex. Flange Screw M6 X 70 This part replaces 207667086.
1022	233261416	Elastic Flange Nut M6 X 1.0
1030	506152297	Housing Bushing
1031	207667056	Hex. Flange Screw M6 X 70 This part replaces 207667086.
1032	233261416	Elastic Flange Nut M6 X 1.0
1040	506152297	Housing Bushing
1041	207667056	Hex. Flange Screw M6 X 70 This part replaces 207667086.
1042	233261416	Elastic Flange Nut M6 X 1.0
1050	506152297	Housing Bushing
1051	207667056	Hex. Flange Screw M6 X 70 This part replaces 207667086.
1052	233261416	Elastic Flange Nut M6 X 1.0
1060	506152163	Plate
1220	207004034	Hex. Screw M10 X 1.5 X 40
1230	233601466	Elastic Locking Nut M10
1250a	506152496	Tie-Rod Ass'y
1250b	506152081	LH Thread Ball Joint
1250c	250100016	LH Threaded Hex. Jam Nut M10
1250d	506152684	RH Threaded Ball Joint
1250e	732610010	RH Threaded Hex. Jam Nut M10
1280	506152582	Washer
1290	207004544	Hex. Screw M10 X 45
1300	233201464	Hex. Flange Elastic M10 x 1.5
