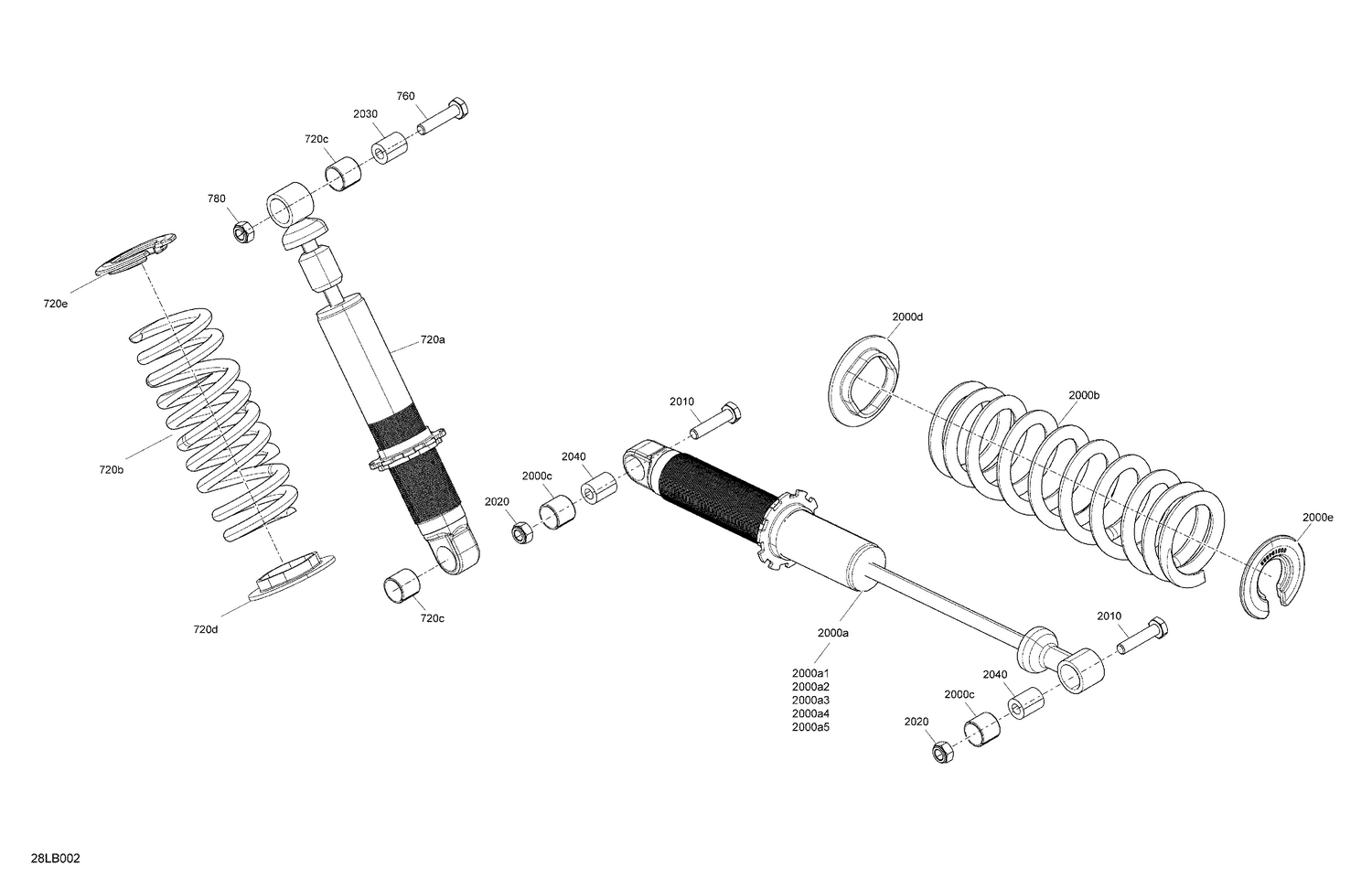

05- Suspension - Rear Shocks
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 720a | 503195437 | Center Shock |
| 720b | 503193294 | Spring 220 MM-40 N/MM |
| 720c | 503195134 | Glide Bearing |
| 720d | 503195685 | Spacer |
| 720e | 503196528 | Stopper Spring This part replaces 503194922. |
| 760 | 207004544 | Hex. Screw M10 X 45 |
| 780 | 232500416 | Elastic Stop Nut M10 |
| 2000a1 | 414888312 | O-Ring |
| 2000a2 | 503189308 | Piston Ring |
| 2000a3 | 505070398 | Air Valve |
| 2000a4 | 505070399 | Screw |
| 2000a5 | 505070400 | O-Ring |
| 2000b | 503195567 | Black, Spring 280 MM-45 N/MM |
| 2000c | 503195134 | Glide Bearing |
| 2000d | 503195685 | Spacer |
| 2000e | 503196528 | Stopper Spring This part replaces 503194922. |
| 2010 | 40134 | Screw Socket HD.DIN 912 |
| 2020 | 232500416 | Elastic Stop Nut M10 |
| 2030 | 5446652 | Bushing |
