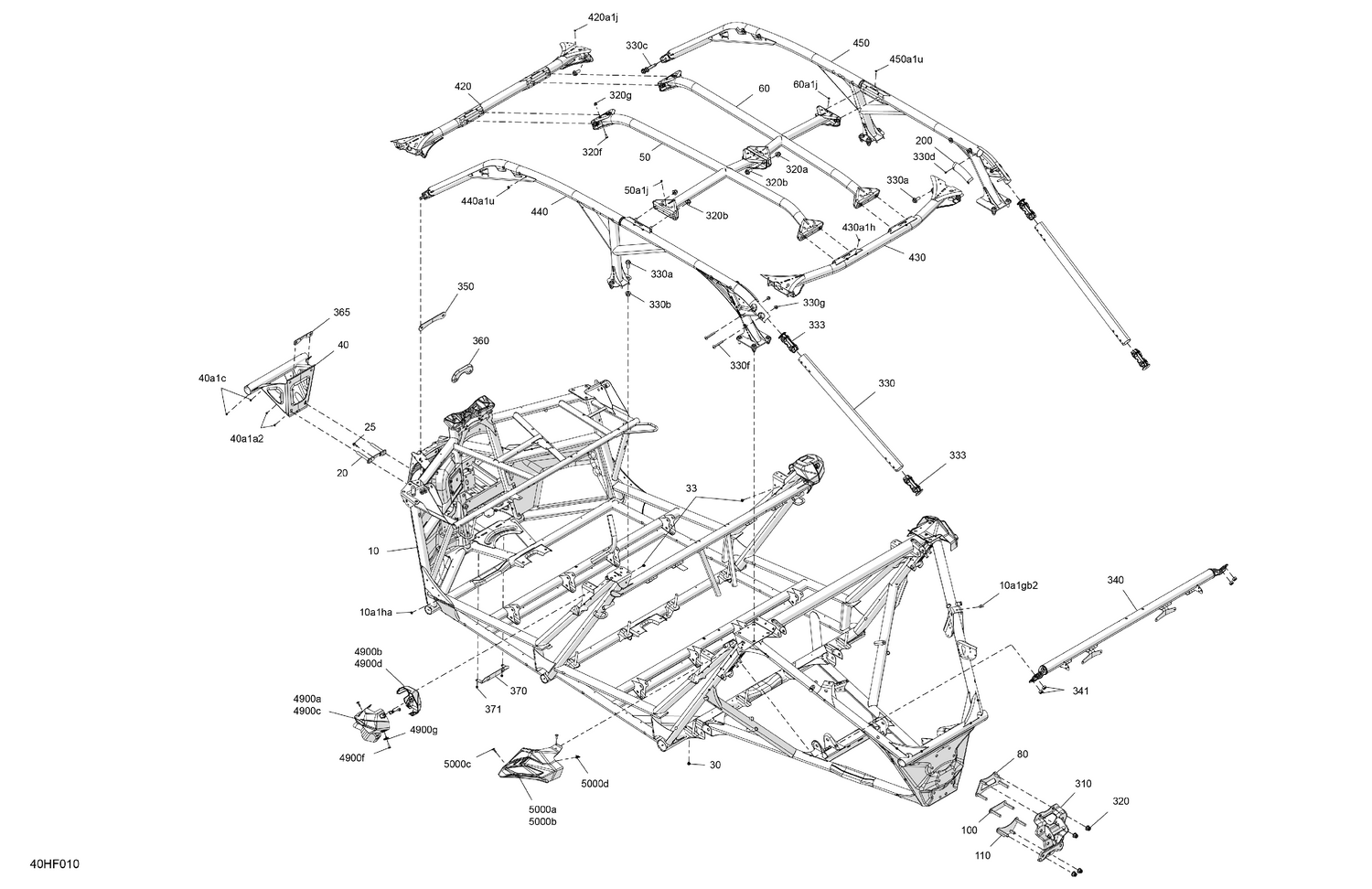

06- Frame - System

06- Frame - System

Parts (52)

RefPart NumberDescription
10 715011345 Black, Frame Kit
10a1gb2 250100059 Nut M6
10a1ha 293150293 Pop Rivet 3/16 X ,425
20 705211898 Front Plate
25 207562034 Hex. Flange Screw M6 X 20, Scotch Grip
30 250100199 Insert Half Hex Body M6 x 1.0
33 250100199 Insert Half Hex Body M6 x 1.0
40 715008490 Black, Front Bumper Kit
40a1a2 293150293 Pop Rivet 3/16 X ,425
40a1c 293150293 Pop Rivet 3/16 X ,425
50a1j 293150293 Pop Rivet 3/16 X ,425
60a1j 293150293 Pop Rivet 3/16 X ,425
80 705211557 Rear Upper Plate
100 705211558 Rear Central Plate
110 705211556 Rear Lower Plate
200 705211599 Deep Black, Upper Plate Kit
310 715008492 Junction Plate Kit
320 250001195 Elastic Flange Nut M12
320a 250001195 Elastic Flange Nut M12
320b 250000856 Hex. Flange Screw DIN.6921 M12X25
320f 250000717 Torx Head Screw M6 X 16
320g 233261466 Hex. Flange Elastic Nut M6
330 705210066 Deep Black, Rear Pillar
330a 207523056 Hex. Flange Screw M12 X 30, Scotch Grip
330b 250001195 Elastic Flange Nut M12
330c 250000857 Flange Screw M12 X 60
330d 293150300 Black, Pop Rivet 3/16 X ,425
330f 250000901 Torx Truss M8 X 65
330g 250100025 Elastic Flange Nut M8
333 705210648 Sleeve
340 705212141 Safety Belt Anchorage
341 232521416 Elastic Stop Nut M12
350 705211552 Connecting Plate
360 705210249 Retaining Plate
365 705211553 Front Plate
370 705211560 Support
371 293150293 Pop Rivet 3/16 X ,425
420a1j 293150293 Pop Rivet 3/16 X ,425
430a1h 293150293 Pop Rivet 3/16 X ,425
440 715011255 Black, LH Cage Kit
440a1u 293150293 Pop Rivet 3/16 X ,425
450 715008464 Black, RH Cage Kit
450a1u 293150293 Pop Rivet 3/16 X ,425
4900a 705015489 LH Central Cage Trim
4900b 705014860 LH Central Cage Trim
4900c 705015490 RH Central Cage Trim
4900d 705014862 RH Central Cage Trim
4900f 250000722 Torx Screw M6 X 20
4900g 250100198 Panel Nut M6 X 1.0
5000a 705010335 LH Rear Cage Trim
5000b 705010336 RH Rear Cage Trim
5000c 250000722 Torx Screw M6 X 20
