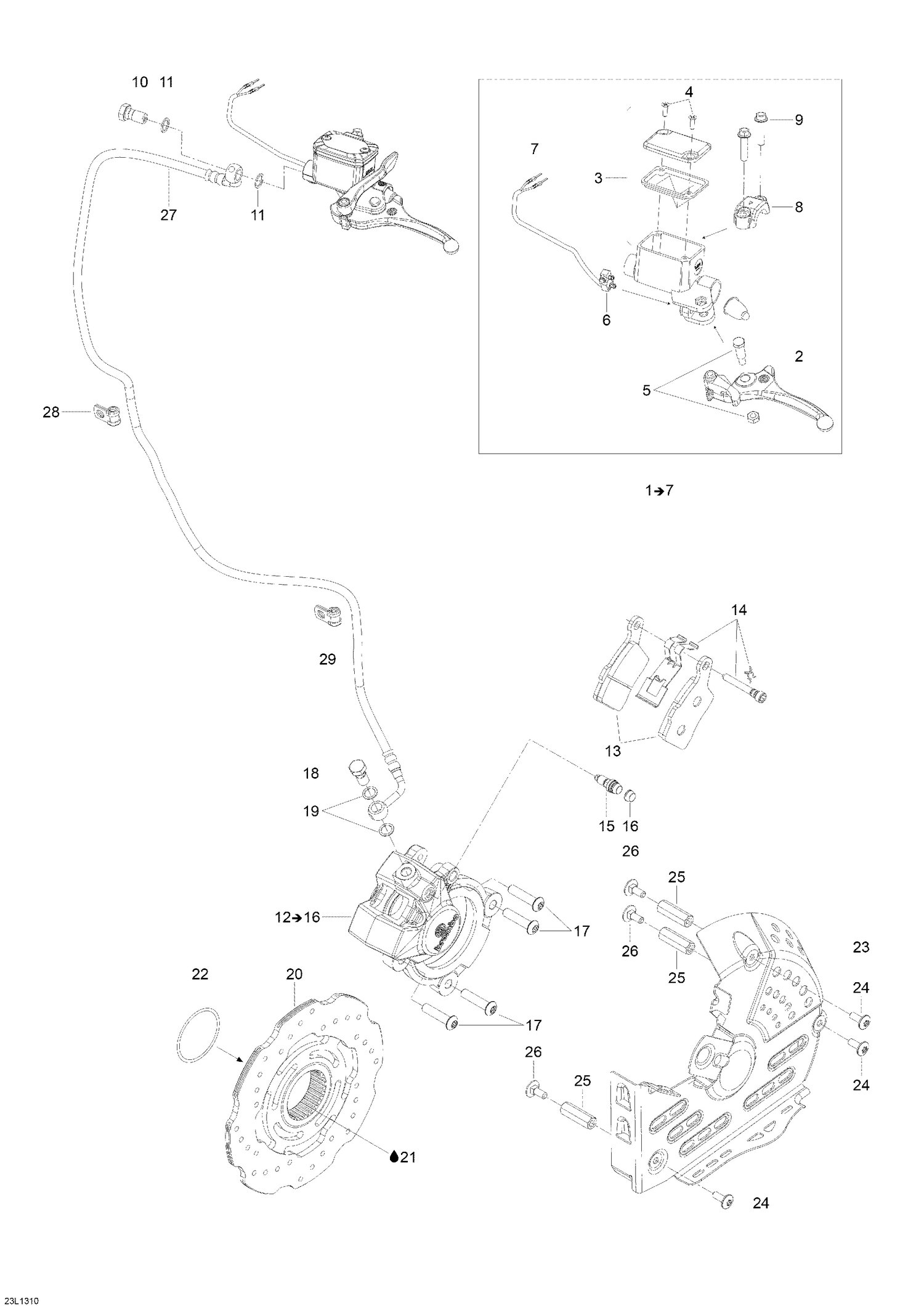

06- Hydraulic Brakes
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 507032476 | Lever With Parking Lock |
| 4 | 415129356 | Screw M4 x 20 |
| 5 | 415030000 | Pin Ass'y |
| 6 | 507032479 | Microswitch |
| 7 | 515175232 | Male Terminal |
| 8 | 719000049 | Clamp Kit |
| 9 | 250000447 | Hex Flanged Screw M6 X 25 |
| 10 | 507032551 | Banjo Bolt This part replaces 507032539. |
| 11 | 705601628 | Copper Washer This part replaces 705600310. |
| 13 | 507032473 | Brake Pads Kit |
| 14 | 507032722 | Brake Spring Kit This part replaces 507032474. |
| 15 | 507032475 | Bleeder |
| 16 | 414989700 | BOOT-QTS 20 - Call your local BRP dealership |
| 17 | 250000764 | Torx Screw M8 x 35 This part replaces 250000301. |
| 18 | 507032551 | Banjo Bolt This part replaces 507032539. |
| 19 | 705601628 | Copper Washer This part replaces 705600310. |
| 20 | 507032487 | Disk |
| 21 | 619600013 | Loctite 8151 (Antiseize), 400ml Spray |
| 22 | 293300134 | O Ring |
| 23 | 507032446 | Disk Protector |
| 24 | 250000365 | Torx Screw M6 x 16 |
| 25 | 507032497 | Threaded Tube |
| 26 | 207761644 | Carriage Bolt M6 x 16 |
| 27 | 507032540 | Hose |
| 28 | 293650256 | Clamp This part replaces 705600459. |
