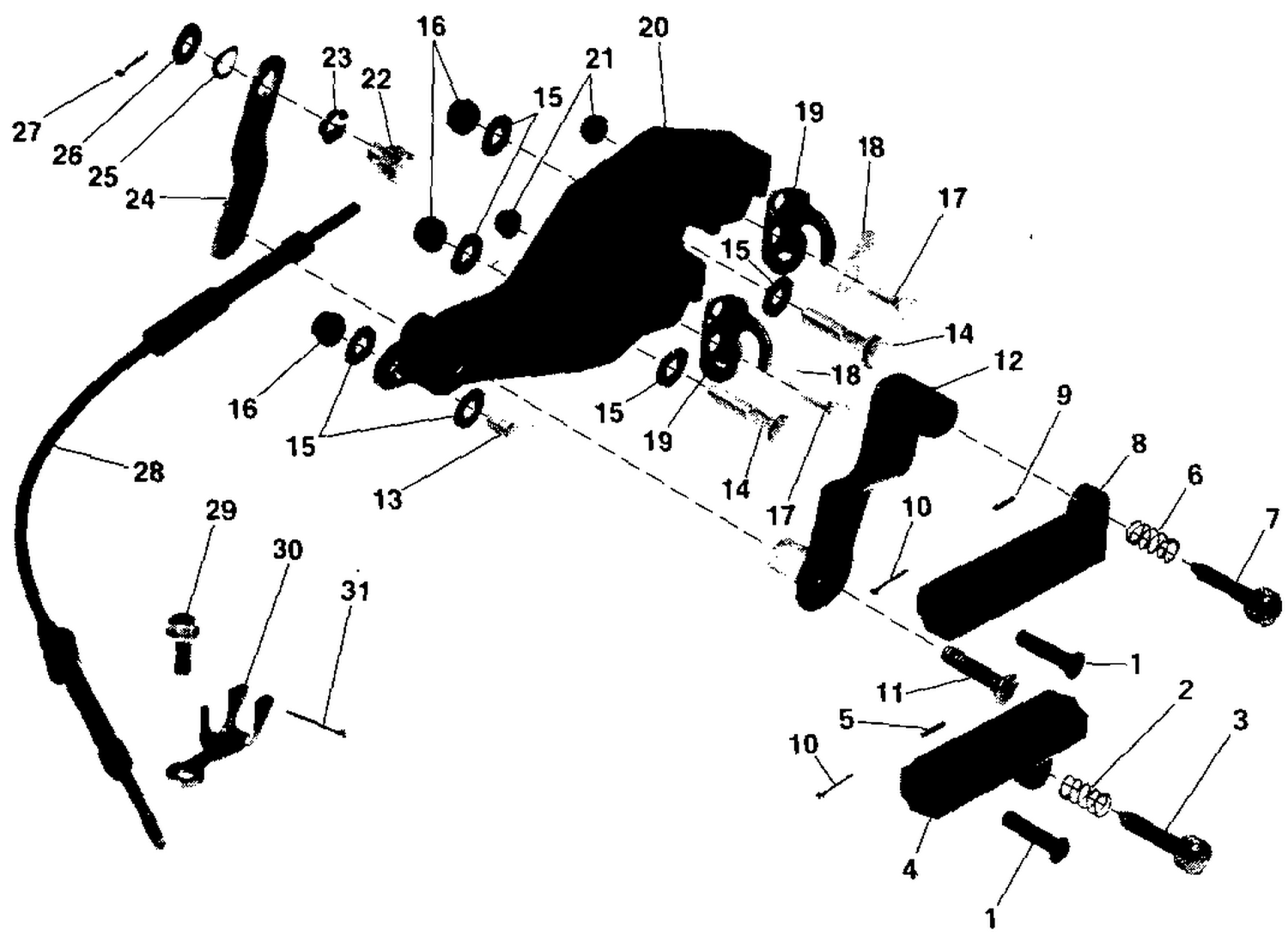

| Ref | Part Number | Description |
|---|
| 12 |
0334077 |
LEVER, Throttle |
| 13 |
0304027 |
VIS, arbre de commande de sens de marche |
| 16 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 17 |
0308754 |
SCREW |
| 20 |
0123688 |
BRACKET |
| 22 |
0124916 |
CONNECTOR, Throttle cable to throttle arm assy. |
| 23 |
0325298 |
BUSHING, Connector to throttle arm assy. |
| 24 |
0431839 |
THROTTLE ARM ASSEMBLY |
| 25 |
0309750 |
RONDELLE, ressort - Tige soupape d'échappement |
| 28 |
0173725 |
THROTTLE CABLE ASSEMBLY |
| 29 |
0122147 |
VIS, connecteur |
| 30 |
0124915 |
ANCHOR, Throt. cable trunnion |
| 0398105 |
0398105 |
CONNECTOR ASSEMBLY, Shift |
| 0431840 |
0431840 |
ADAPTER KIT |
| 0431841 |
0431841 |
THROTTLE ARM ASSEMBLY |
| 0431842 |
0431842 |
CONNECTOR ASSEMBLY, Shift |
| 0431843 |
0431843 |
BRACKET ASSEMBLY |
