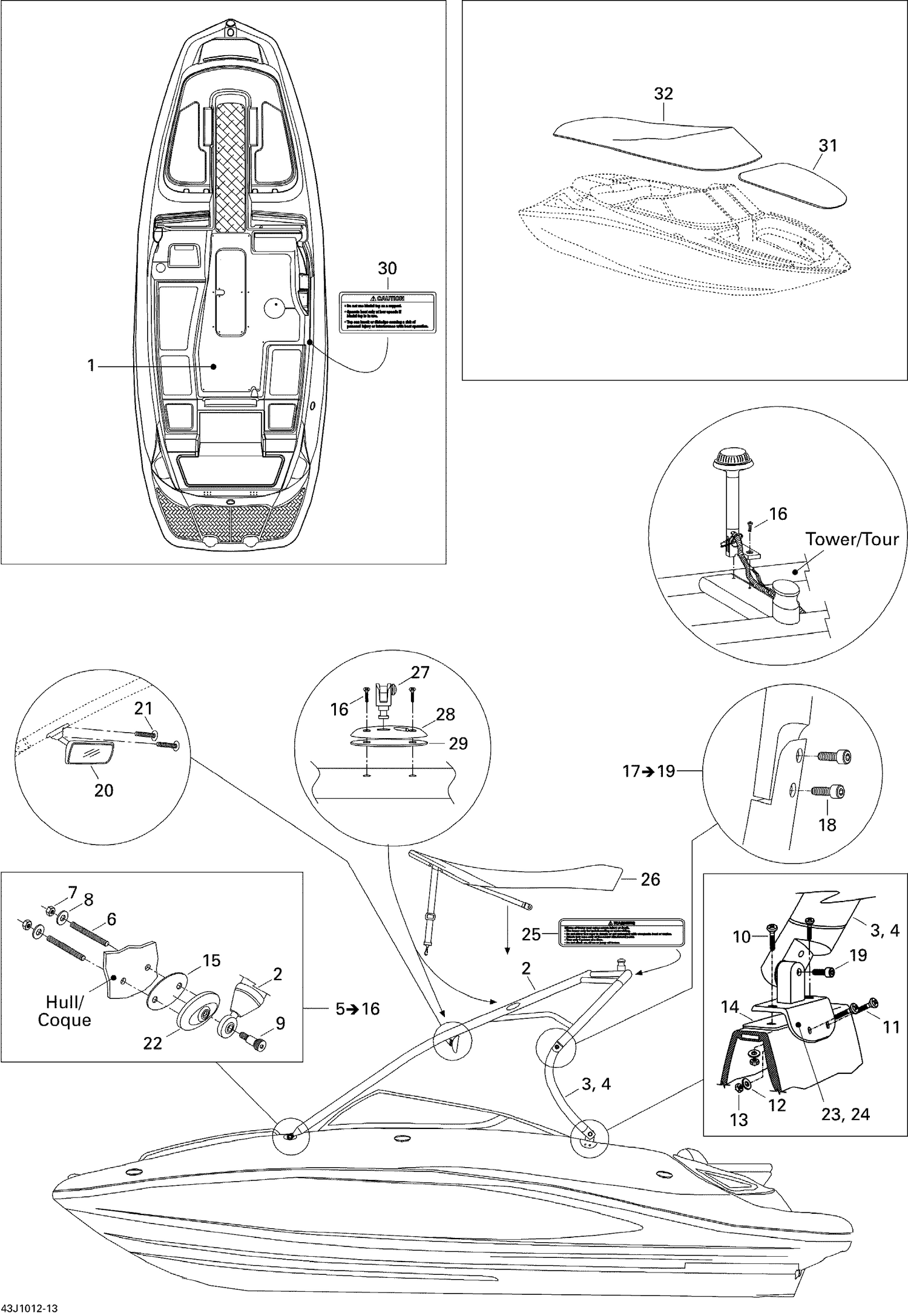

| Ref | Part Number | Description |
|---|
| 1 |
204950203 |
ANTI SLIP MAT - Call your local BRP dealership |
| 2 |
204950198 |
Tower Upper |
| 3 |
204950239 |
Lower Tower, Port |
| 4 |
204950232 |
Lower Tower, Starboard |
| 6 |
204100152 |
Threaded Stud |
| 7 |
204100131 |
LOCK NUT 1/2? - Call your local BRP dealership |
| 8 |
204100132 |
FENDER WASHER - Call your local BRP dealership |
| 9 |
204100242 |
SCREW-BUTTON HD.CAP 1/2-13 X 1.5 SS - Call your local BRP dealership |
| 10 |
204100014 |
HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership |
| 11 |
204100250 |
HEX. SCREW 1/4-20 X 1 1/2 - Call your local BRP dealership |
| 12 |
204100139 |
WASHER-FENDER/S.S. - Call your local BRP dealership |
| 13 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 14 |
204130304 |
REAR GASKET - Call your local BRP dealership |
| 15 |
204130272 |
Front Gasket |
| 16 |
204100240 |
PHILLIP HEAD SCREW 8-18 X 1 - Call your local BRP dealership |
| 18 |
204100135 |
HEX. SCREW 3/8 X 1-1/2 - Call your local BRP dealership |
| 19 |
204100251 |
HEX. SCREW 3/8-16 X 2 - Call your local BRP dealership |
| 20 |
295100386 |
SKI MIRROR - Call your local BRP dealership This part replaces 204071420. |
| 21 |
204100129 |
PHILLIPS SCREW 10-32 X 1? - Call your local BRP dealership |
| 22 |
204950143 |
FRONT TOWER SUPPORT, ANODIZED - Call your local BRP dealership |
| 25 |
204902068 |
WARNING LABEL, TOWER - Call your local BRP dealership |
| 26 |
204950227 |
BIMINI TOP ASS'Y, RED - Call your local BRP dealership |
| 27 |
204950033 |
BIMINI POST - Call your local BRP dealership |
| 28 |
204950034 |
BIMINI BASE - Call your local BRP dealership |
| 29 |
204950031 |
BIMINI SPACER - Call your local BRP dealership |
| 30 |
204901331 |
CAUTION LABEL, BIMINI TOP - Call your local BRP dealership |
| 31 |
204950103 |
BOW COVER - Call your local BRP dealership |
